STRAIGHT PIPE WITH ONE SOCKET - (811.500.160)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.500.160
EAN no.: 5705499400991
VVS no.: 160132250
NRF no.: 2172299
LVI no.: 0240240

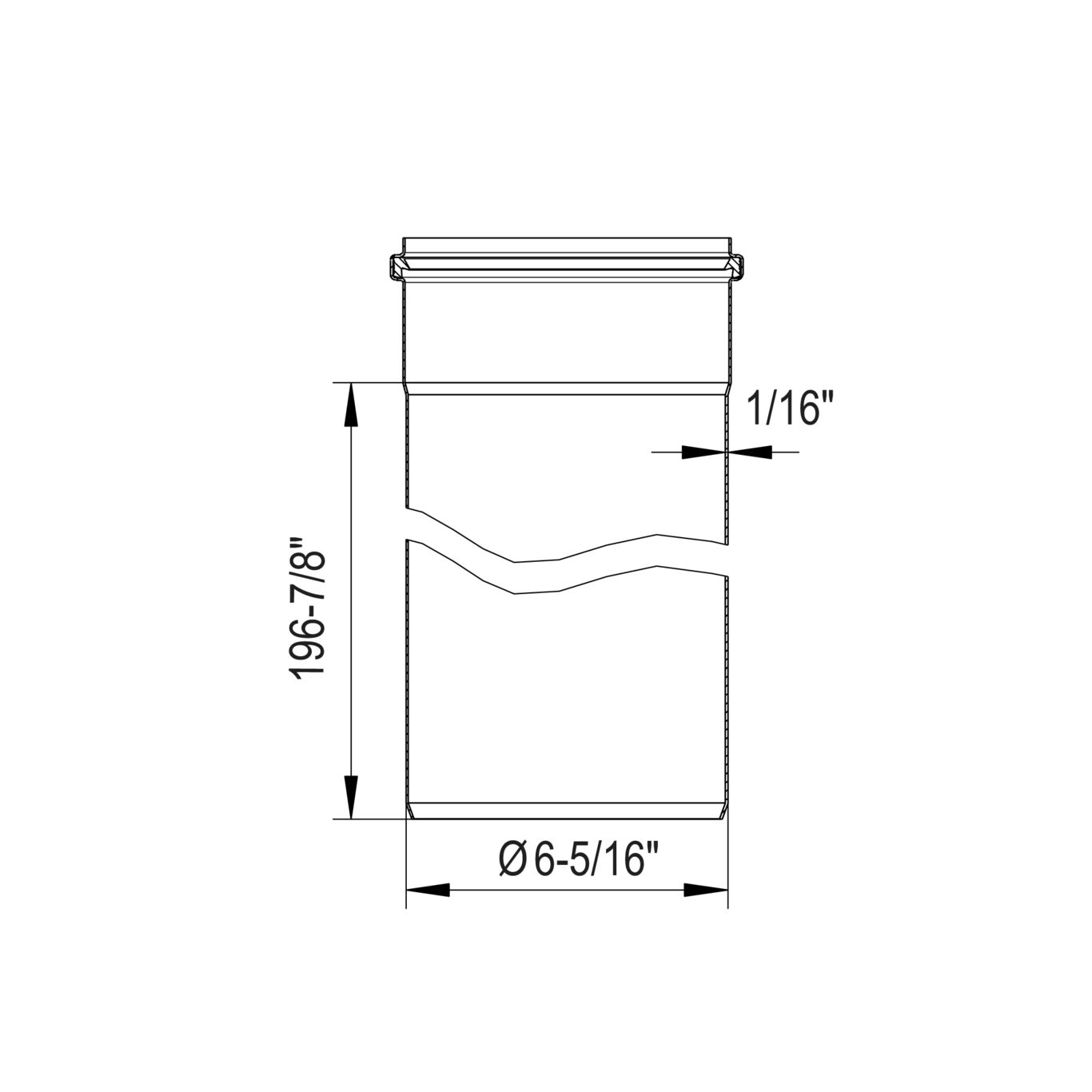

STRAIGHT PIPE WITH ONE SOCKET
-Length: 5000mm
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 16' 5" |
| Length of straight pipe (mm) | 5000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 25.69 |
| Weight (lbs) | 56.64 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings
