STRAIGHT PIPE WITH ONE SOCKET - (811.600.075 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.600.075 S
EAN no.: 5705499401042
VVS no.: 160124560
RSK no.: 1550370
NRF no.: 2172506
LVI no.: 0250141

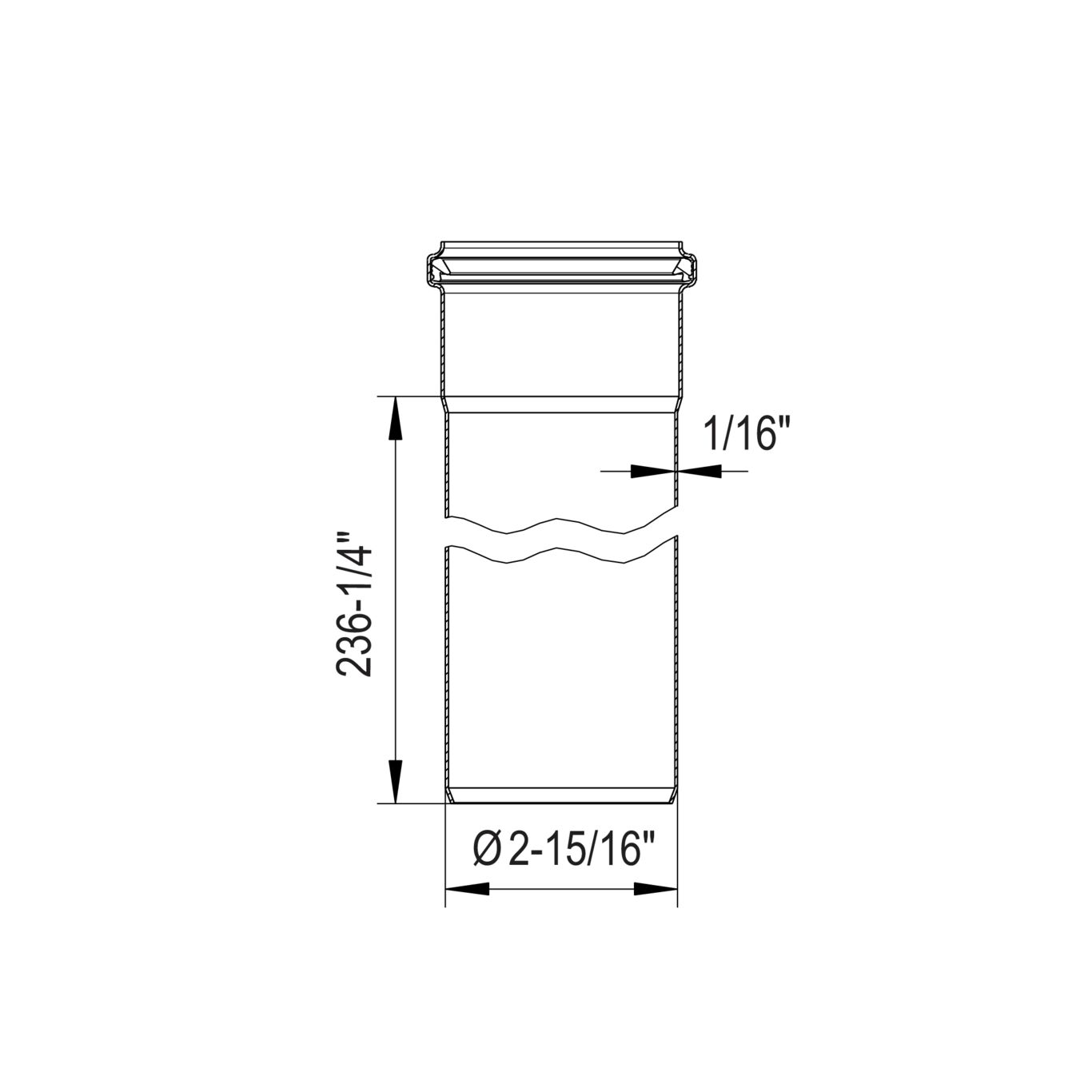

STRAIGHT PIPE WITH ONE SOCKET
-Length: 6000mm
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 19' 8" |
| Length of straight pipe (mm) | 6000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 11.42 |
| Weight (lbs) | 25.18 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24 Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - LD1716353-PDA PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe
