STRAIGHT PIPE WITH ONE SOCKET - (811.600.160)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.600.160
EAN no.: 5705499401073
VVS no.: 160132260
RSK no.: 1550172
NRF no.: 2172307
LVI no.: 0240241

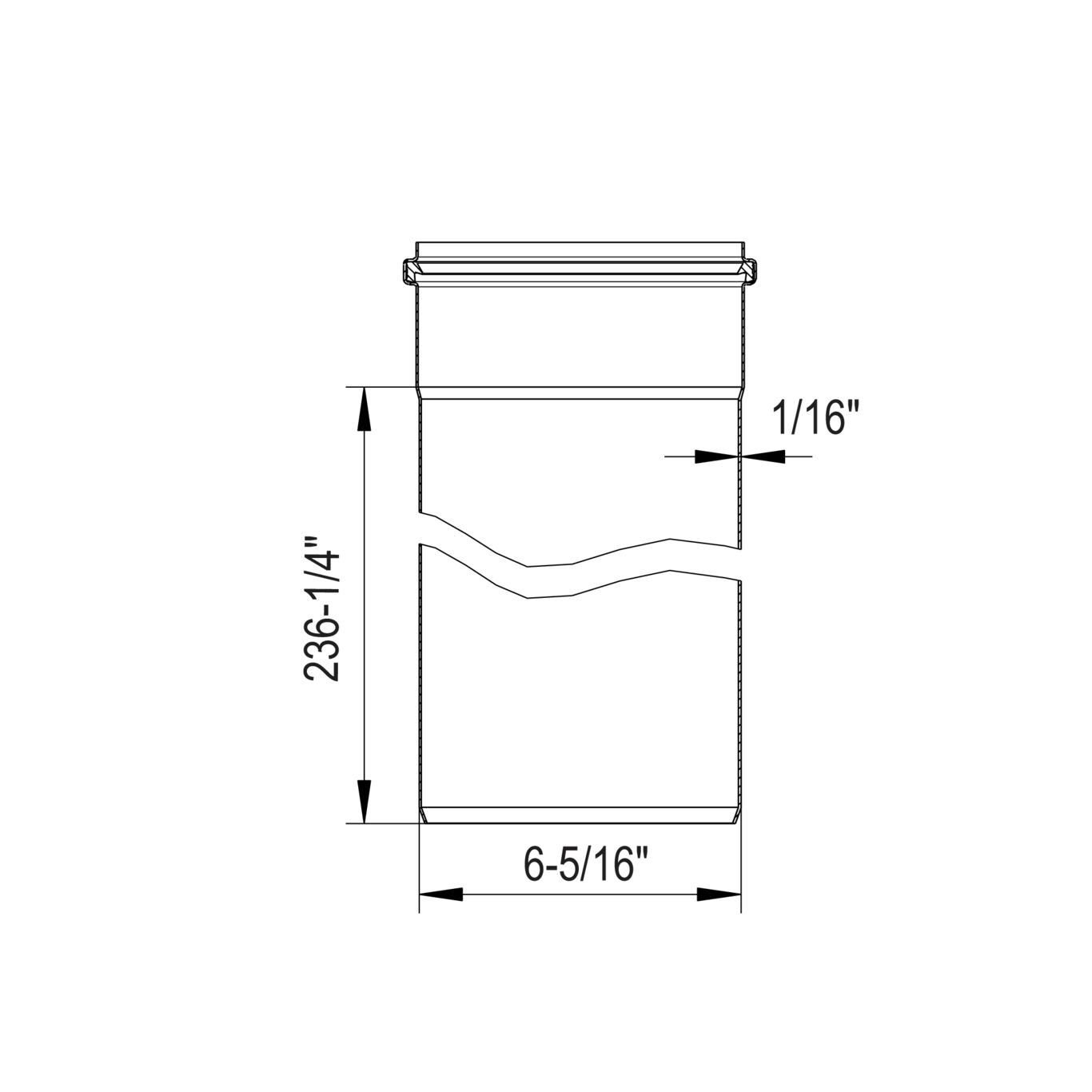

STRAIGHT PIPE WITH ONE SOCKET
-Length: 6000mm
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 19' 8" |
| Length of straight pipe (mm) | 6000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 30.74 |
| Weight (lbs) | 67.77 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM
