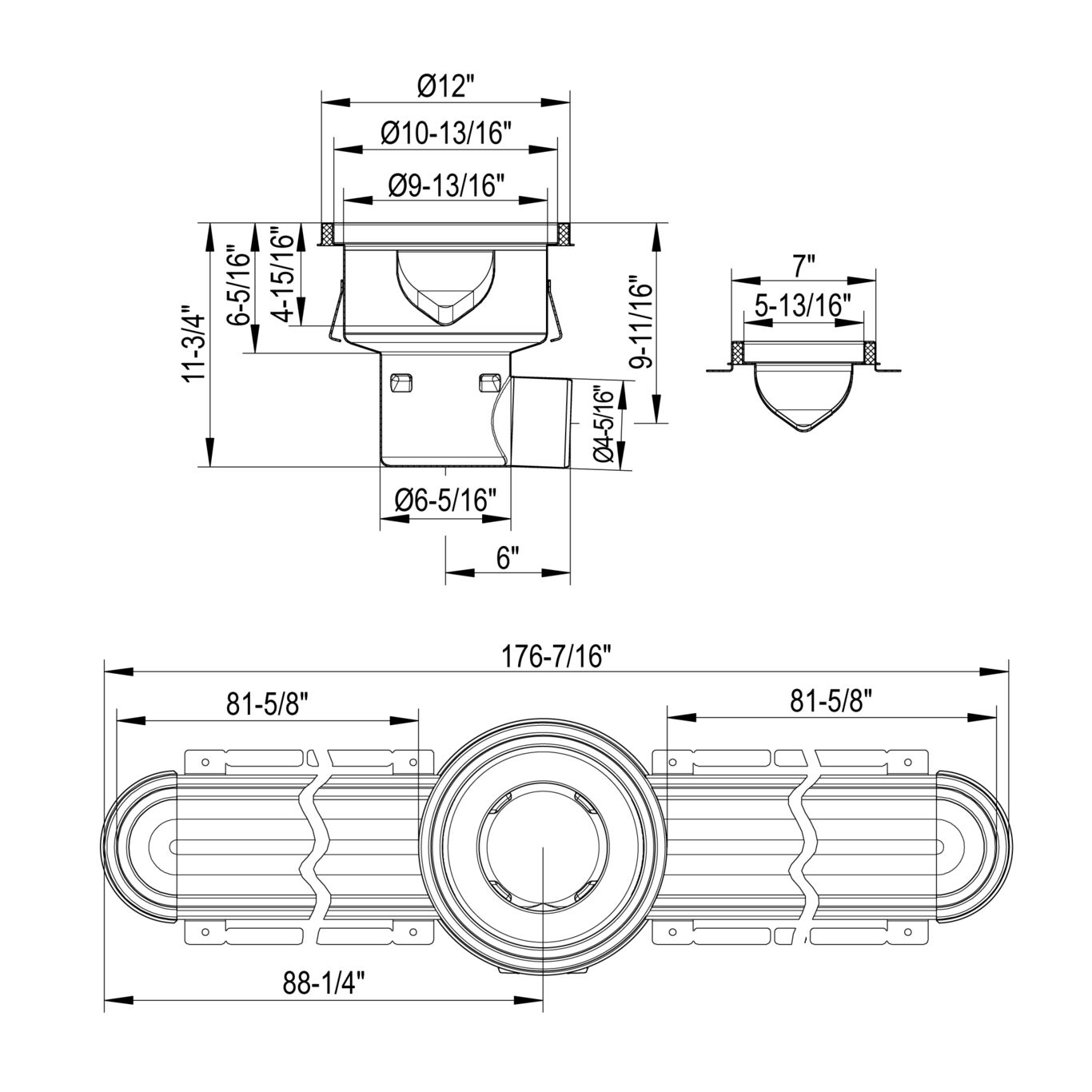

HYGIENICPRO CHANNEL 150x4000 CENTER OUTLET - (676CT040-20CF)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CT040-20CF
EAN no.: 5705499136999
VVS no.: 221801340
LVI no.: 3305723
Size: 150x4000
HYGIENICPRO CHANNEL 150x4000 CENTER OUTLET
-Low model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø4 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 299 |
| Outlet Box | Yes |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Horizontal |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x4000 |
| Size of Frame (Inch) | 5-7/8 x 157-1/2 |
| Weight (kg) | 32.44 |
| Weight (lbs) | 71.52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
