HYGIENICPRO CHANNEL 150x9000 CENTER OUTLET - (676CT090-45CF)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CT090-45CF
EAN no.: 5705499137606
VVS no.: 221801390
LVI no.: 3305733
Size: 150x9000

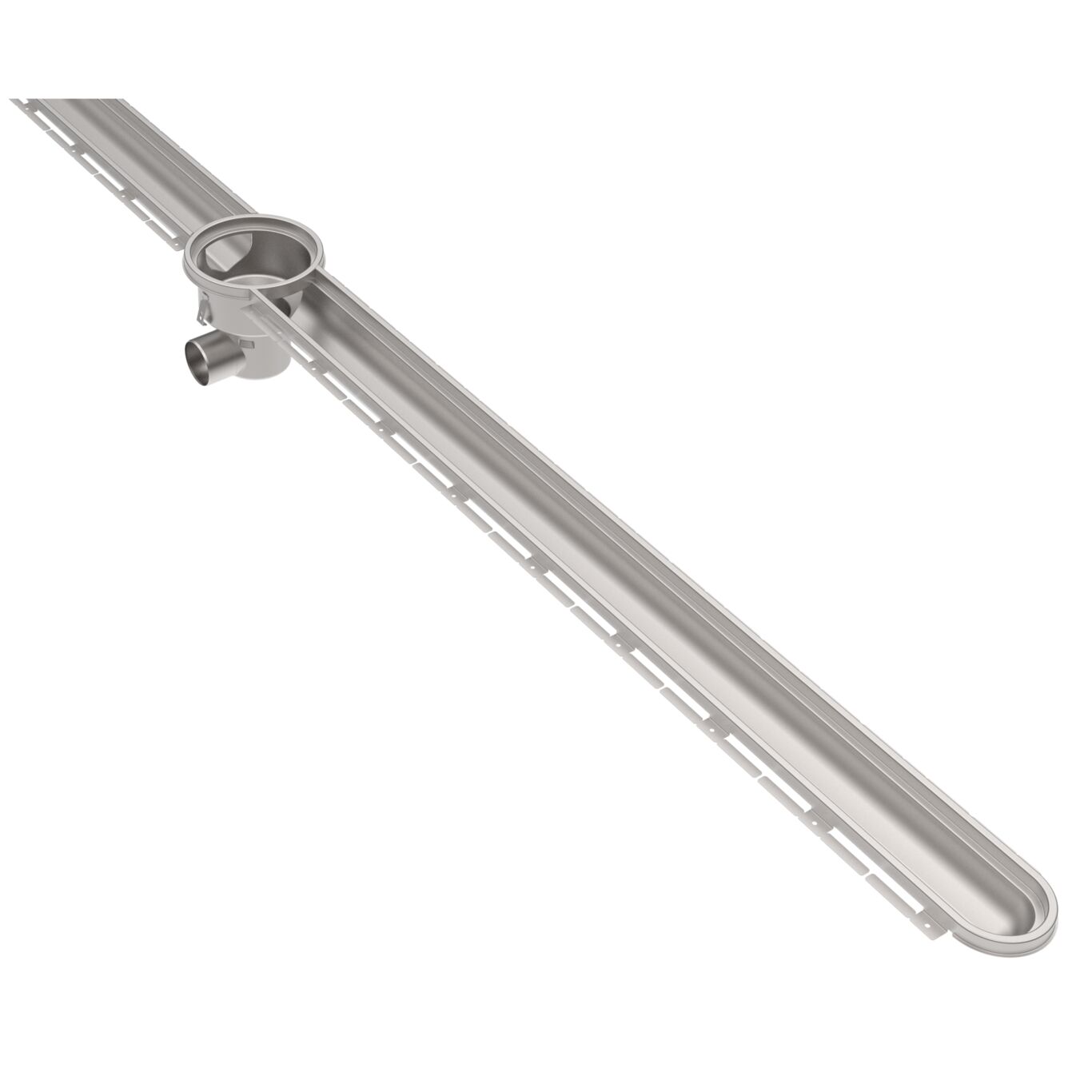

HYGIENICPRO CHANNEL 150x9000 CENTER OUTLET
-Low model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø4 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 319 |
| Outlet Box | Yes |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Horizontal |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x9000 |
| Size of Frame (Inch) | 5-7/8 x 354-3/8 |
| Weight (kg) | 62.68 |
| Weight (lbs) | 138.19 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
