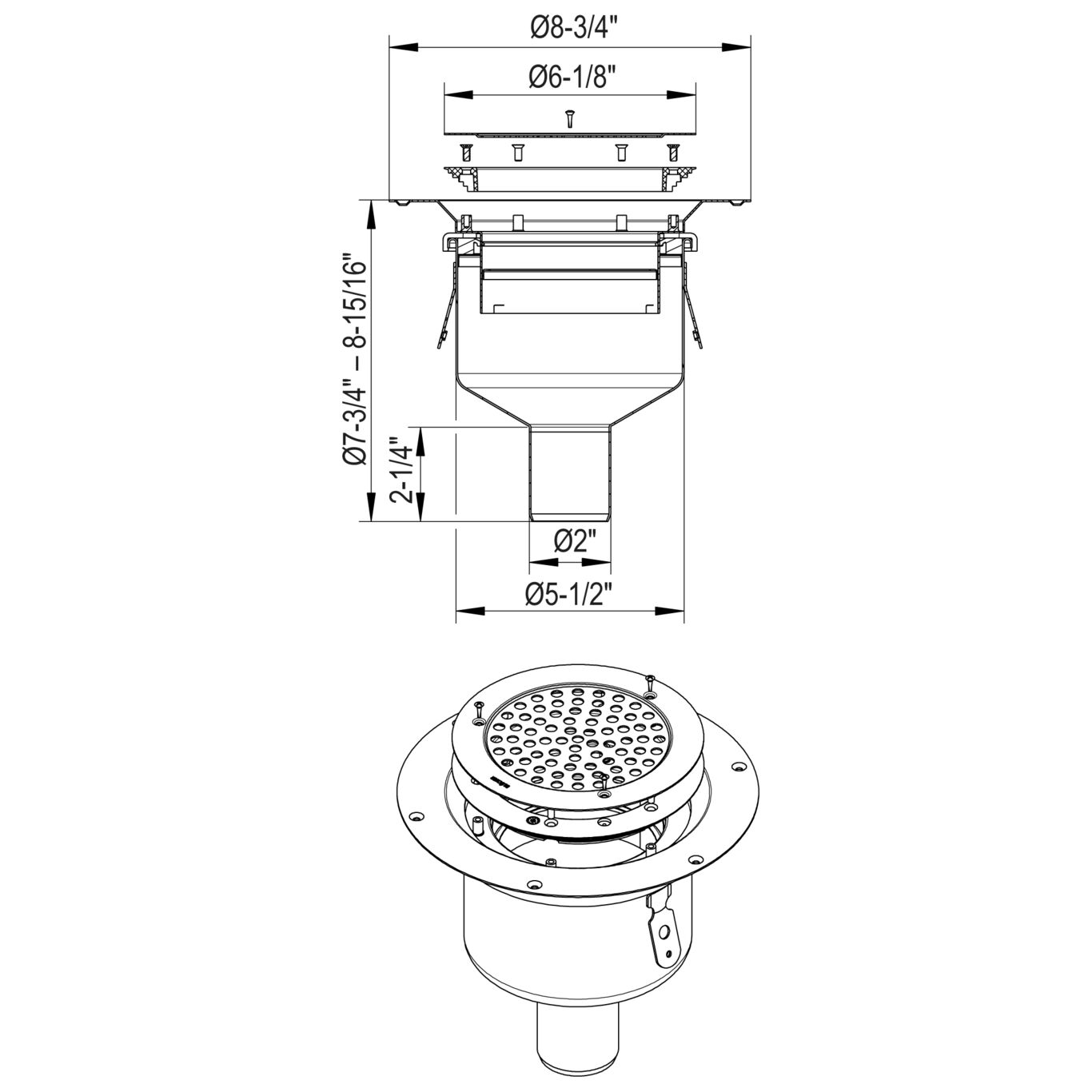

ADJUSTABLE SHOWER DRAIN CIRCLE - (250.300.050)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 250.300.050
EAN no.: 5705499123562
Size: Ø155
ADJUSTABLE SHOWER DRAIN CIRCLE
-Floor: vinyl
-Grating: Ø6-1/8 inch
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 227 |
| Minimum Height (mm) | 197 |
| Number of Inlets | 0 |
| Number of Screw Holes | 3 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 1.33 |
| Weight (lbs) | 2.93 |
-
Approval Information
For approval information, please refer to the below approval certificates.
