UPPER PART FOR OUTDOOR DRAIN - (710.472.000.01 S)
×
![]()
Part Of the Series: Upper part-outdoor/roof
Type no.: 710.472.000.01 S
EAN no.: 5705499127775
VVS no.: 153018156
NRF no.: 3406401
Size: 200x200

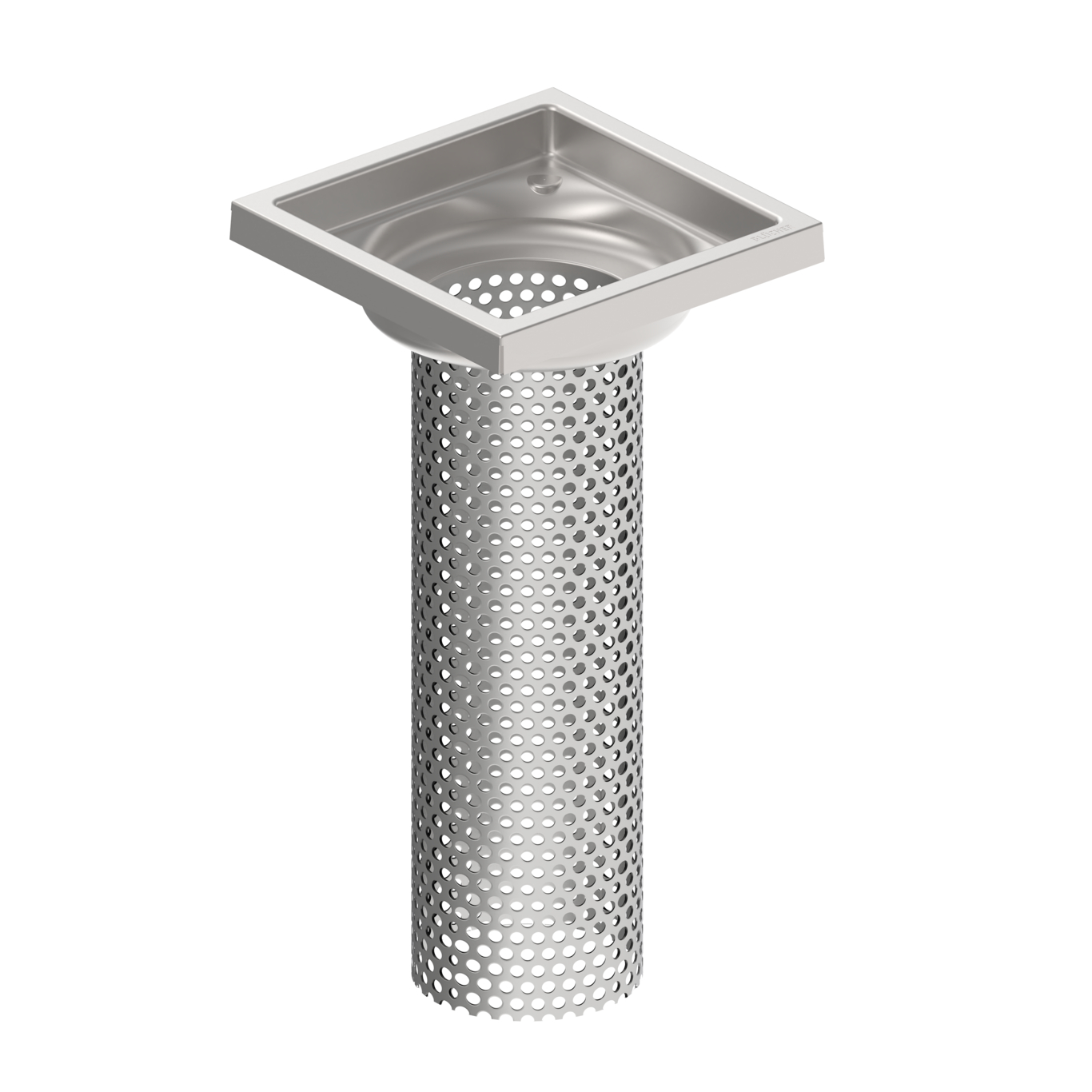

UPPER PART FOR OUTDOOR DRAIN

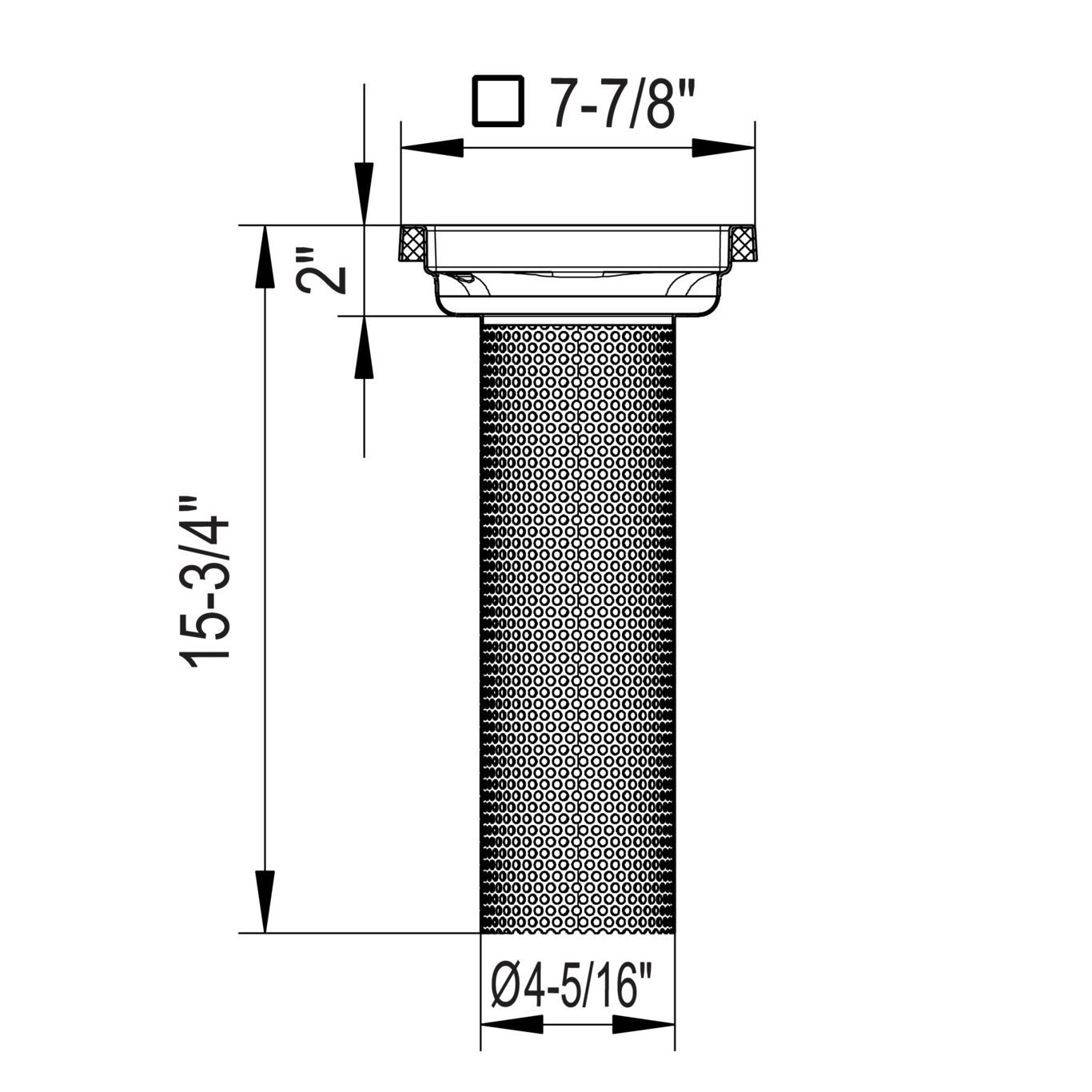

-Frame: 7-7/8 x 7-7/8 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 400 |
| Number of Screw Holes | 3 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 7-7/8 x 7-7/8 |
| Weight (kg) | 1.63 |
| Weight (lbs) | 3.59 |
-
Approval Information
For approval information, please refer to the below approval certificates.
