LOWER PART - (111.000.075 S)
×
![]()
Part Of the Series: Lower part-110
Type no.: 111.000.075 S
EAN no.: 5705499107067

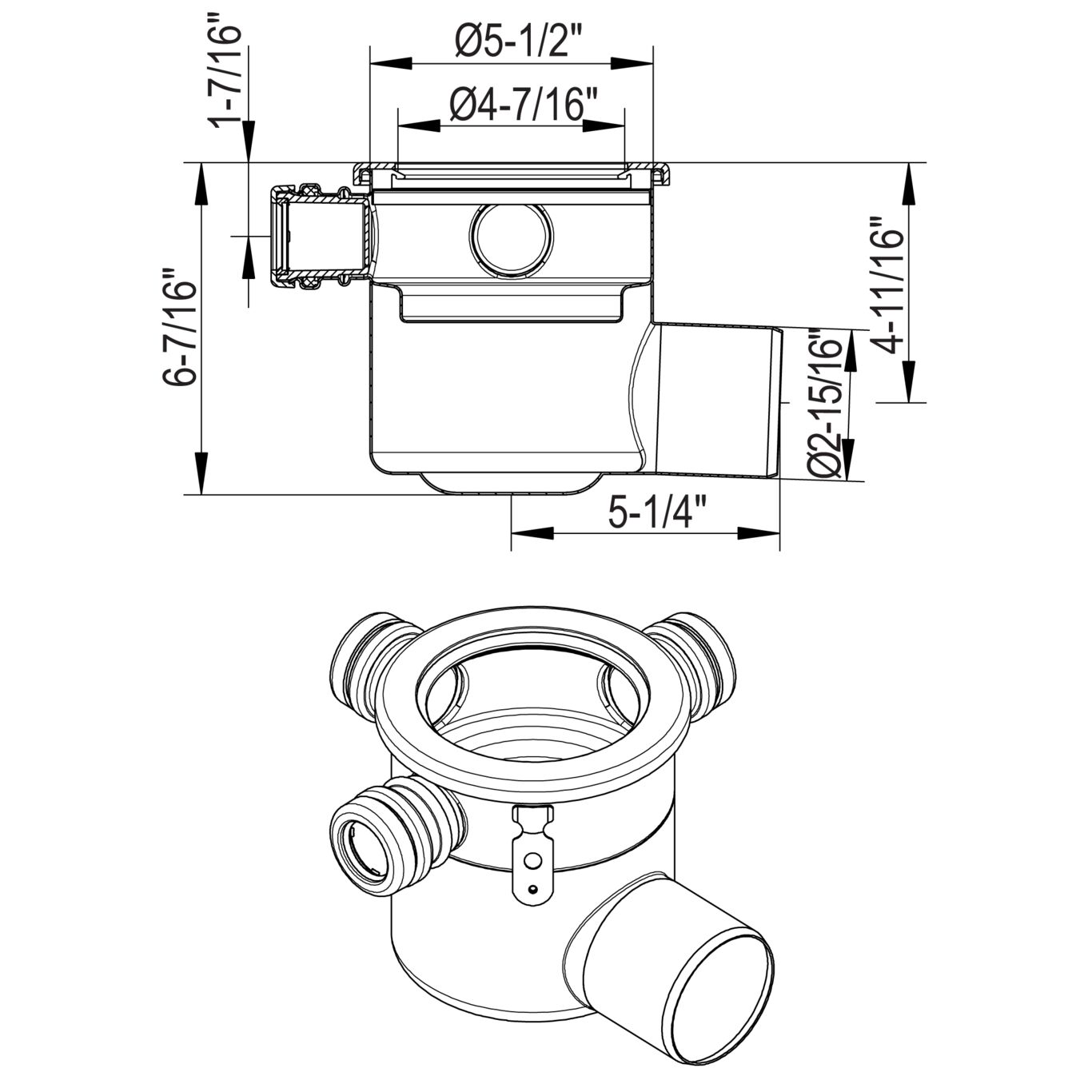

LOWER PART
-With side inlets
-No membrane flange
-Outlet: Ø3 inch, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 164 |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of Inlets (Inch) | 3 (Ø1-1/4 inch, 1-1/2 inch) |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1.22 |
| Weight (lbs) | 2.69 |
-
Approval Information
For approval information, please refer to the below approval certificates.
