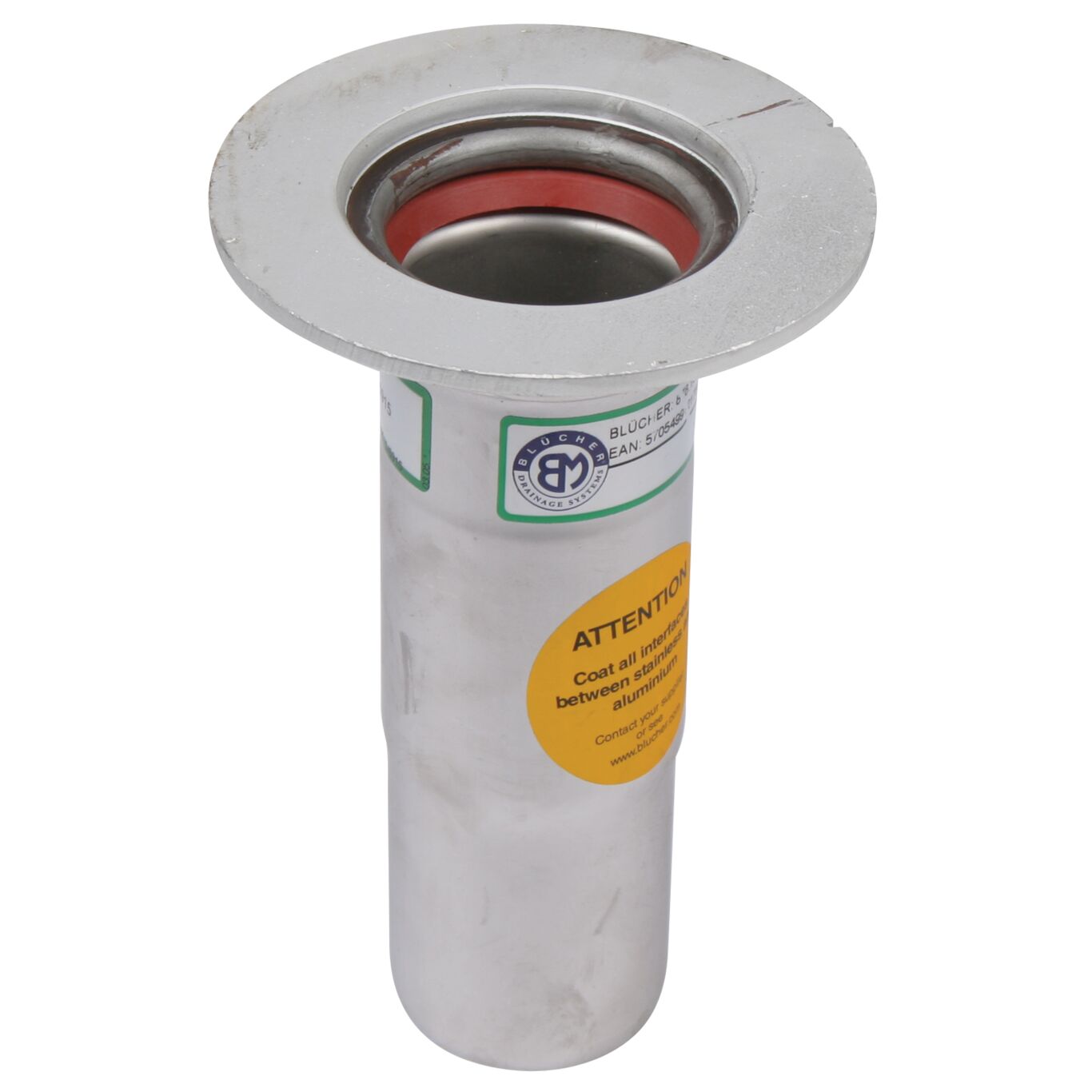

PENETRATION WITH BIMETAL FLANGE - (878.105.050FS)
×
![]()
Part Of the Series: Penetration-bimetal flange-aluminium
Type no.: 878.105.050FS
EAN no.: 5705499121797
NRF no.: 2172813
PENETRATION WITH BIMETAL FLANGE
-Diameter: Ø50mm
-With SI sealing
-Deck: aluminium
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium |
| EC/MED (Bulkhead) | A0-A30 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 57 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 166 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.6 |
| Weight (lbs) | 1.32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
