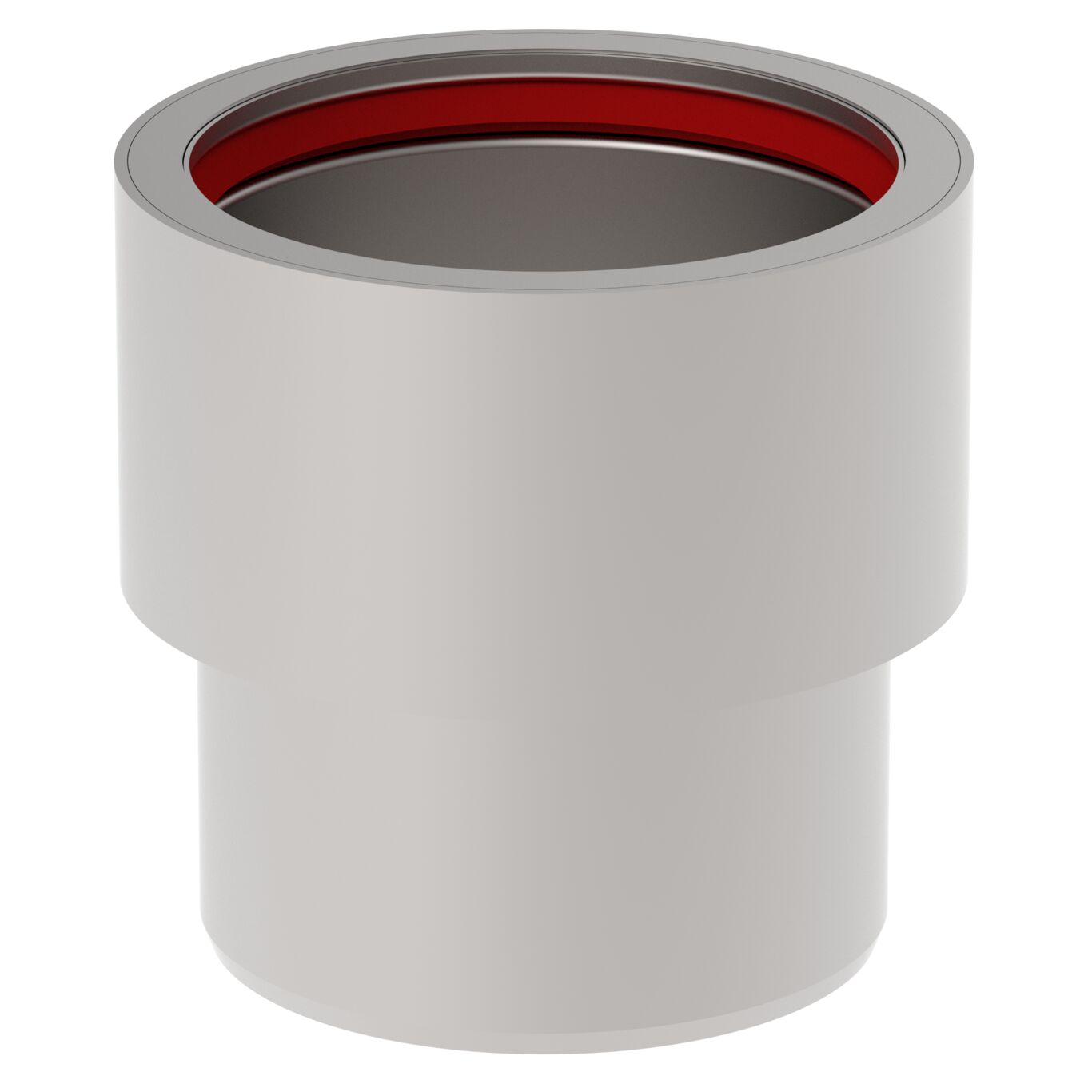

PENETRATION FOR CABIN WITH SLEEVE - (870.000.160FS)
×
![]()
Part Of the Series: Penetration-cabin-welding sleeve-steel
Type no.: 870.000.160FS
EAN no.: 5705499139723
PENETRATION FOR CABIN WITH SLEEVE
-Diameter: Ø160mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 188 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 3.63 |
| Weight (lbs) | 8 |
-
Approval Information
For approval information, please refer to the below approval certificates.
