PENETRATION WITH SOCKET - (875.060.050FS)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 875.060.050FS
EAN no.: 5705499139815

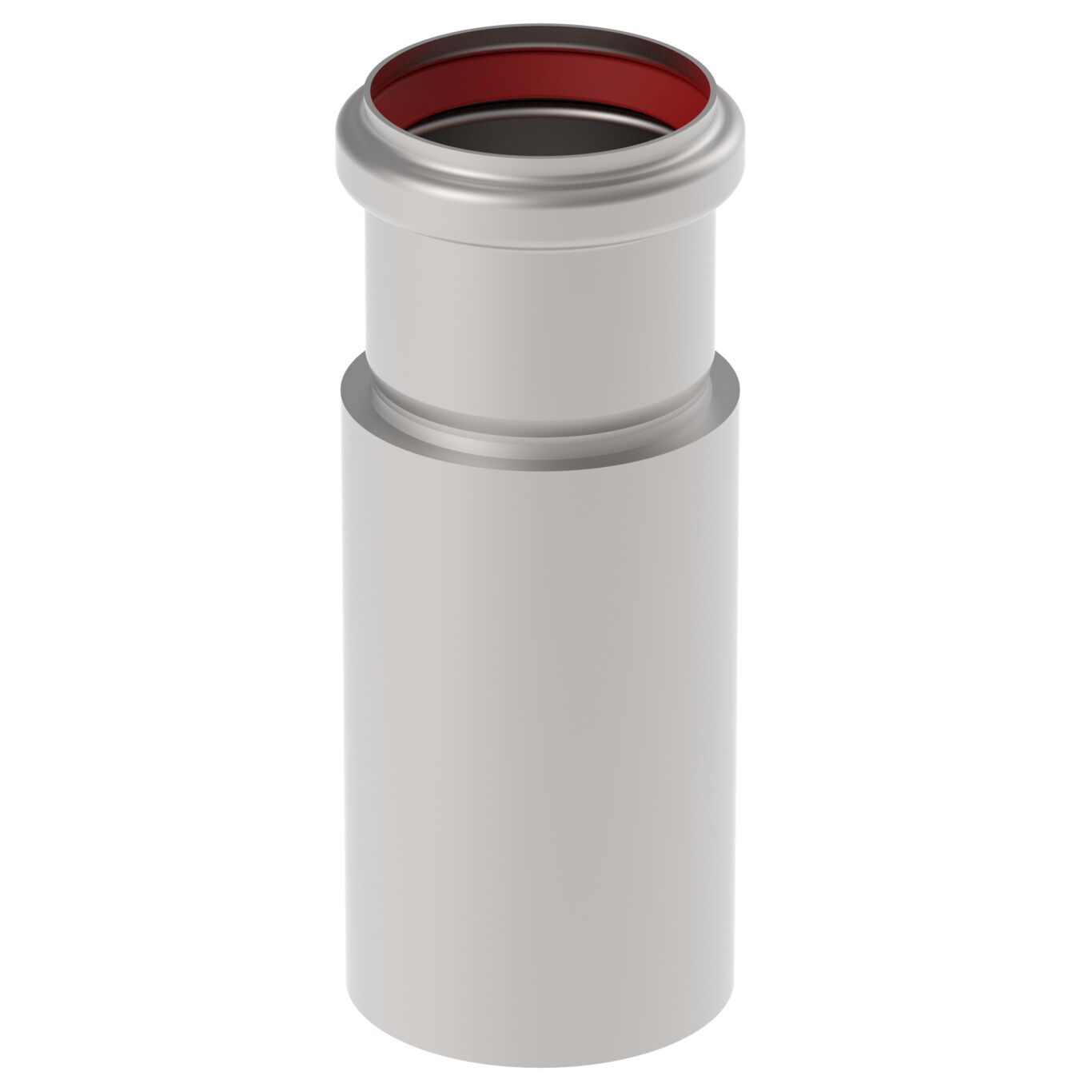

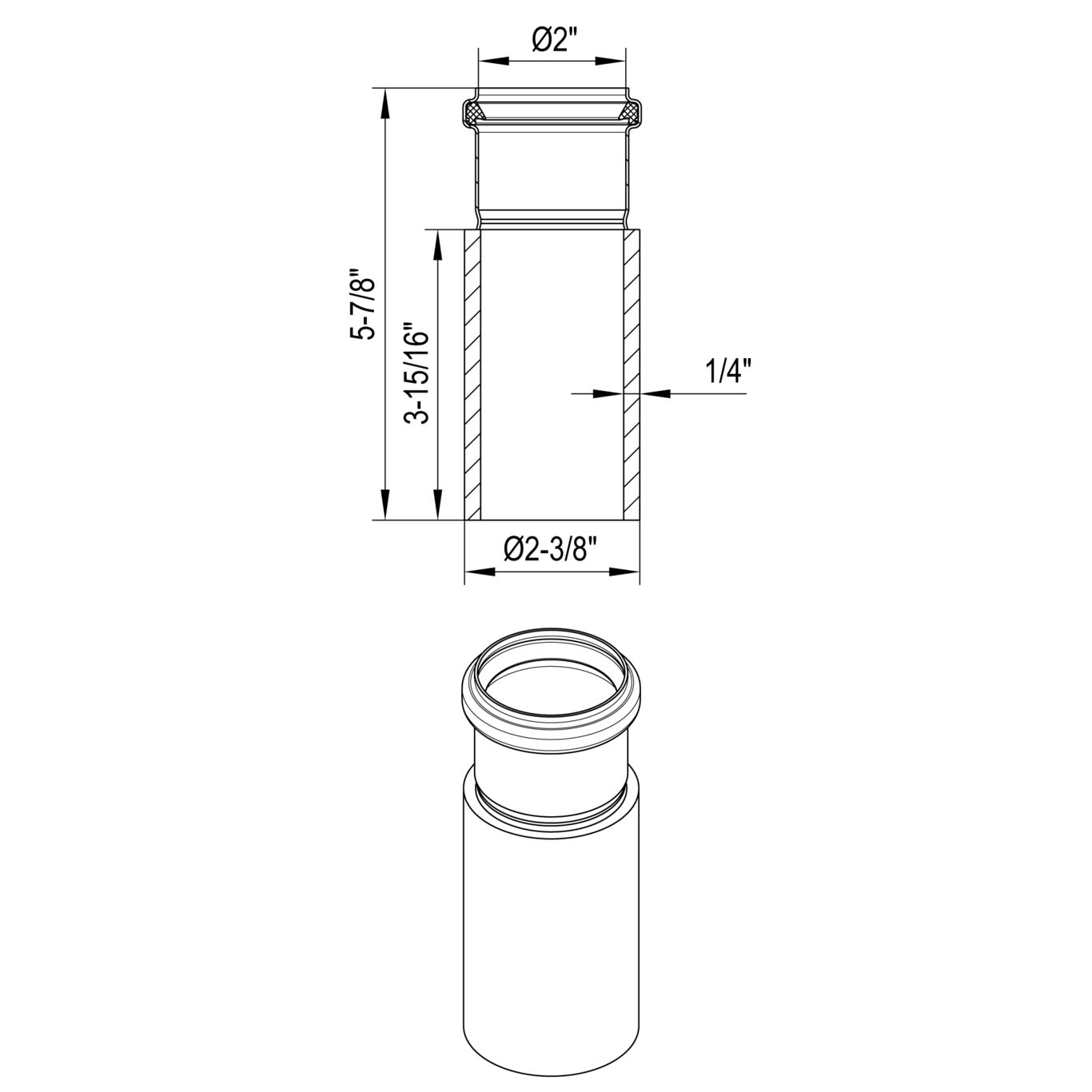

PENETRATION WITH SOCKET
- Welding transition: Ø60.3mm
- With SI sealing
- Diameter: Ø50mm
- Deck: steel
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 149 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.83 |
| Weight (lbs) | 1.83 |
-
Approval Information
For approval information, please refer to the below approval certificates.
