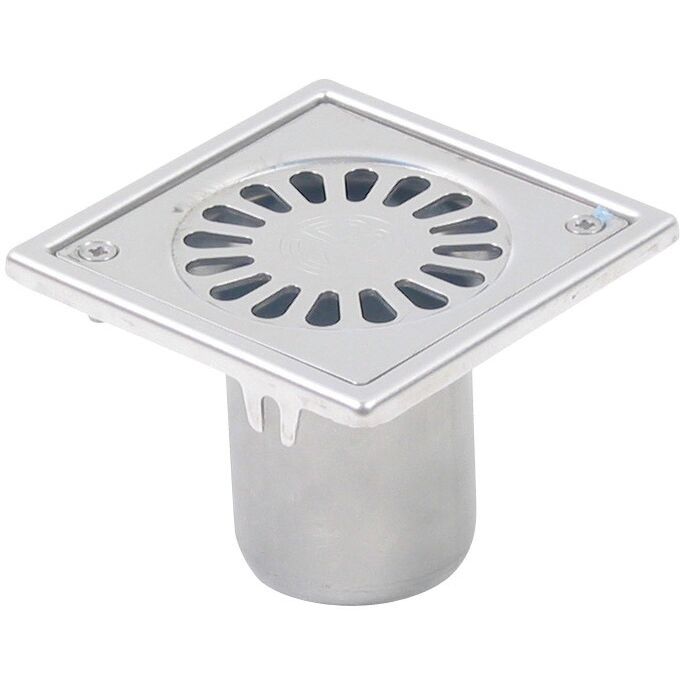

COMPACT DRAIN 100X100 - (183.101.050)
×
![]()
Part Of the Series: Drain-Balcony-100
Type no.: 183.101.050
EAN no.: 5705499120301
VVS no.: 153701050
RSK no.: 7120096
NRF no.: 3394909
LVI no.: 3305824
Size: 100x100
COMPACT DRAIN 3-7/8 x 3-7/8
-With screw lock, removable water trap cannot be used
-Floor: concrete and tiled
-Frame: 3-7/8 x 3-7/8 inch
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 74 |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Number of Screws | 2 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 100x100 |
| Size of Frame (Inch) | 3-7/8 x 3-7/8 |
| Weight (kg) | 0.18 |
| Weight (lbs) | 0.4 |
-
Approval Information
For approval information, please refer to the below approval certificates.
