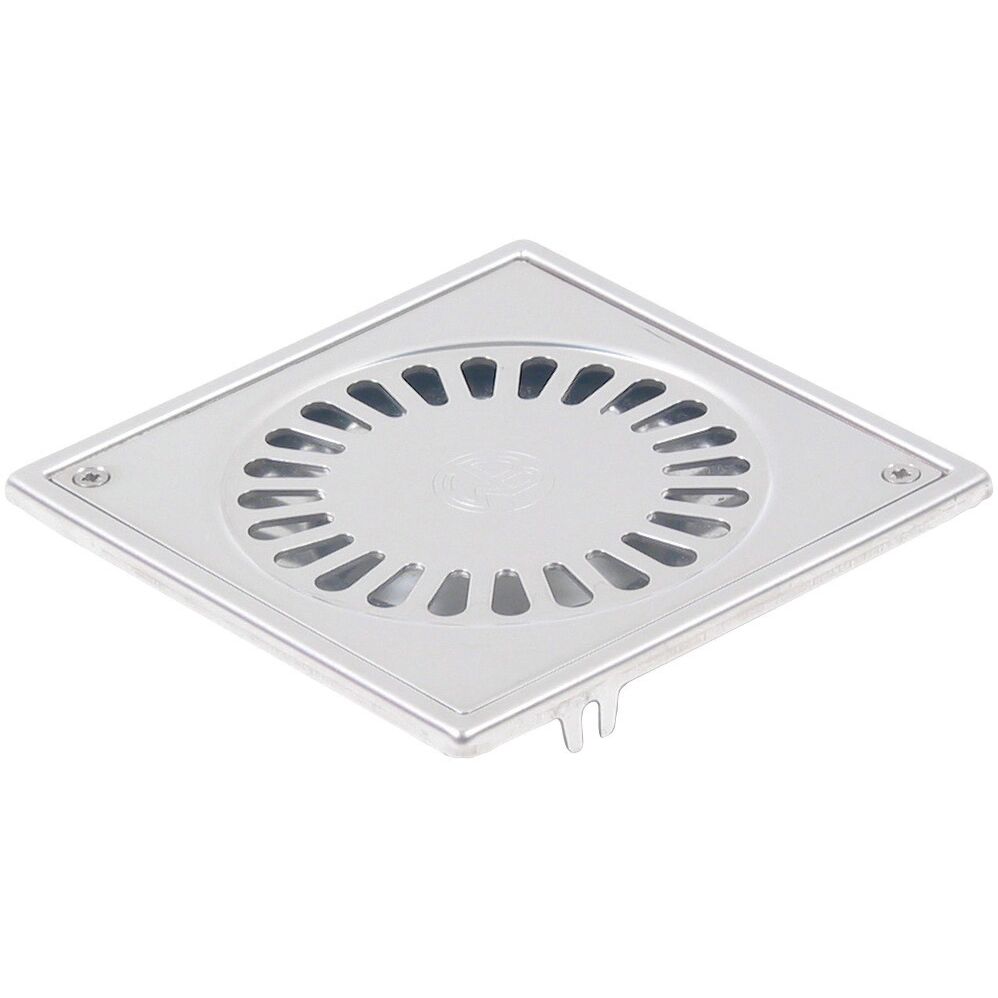

COMPACT DRAIN 150X150 - (183.151.075)
×
![]()
Part Of the Series: Drain-Balcony-150
Type no.: 183.151.075
EAN no.: 5705499120325
VVS no.: 153701175
RSK no.: 7120098
LVI no.: 3305826
Size: 150x150
COMPACT DRAIN 5-7/8 x 5-7/8
-With screw lock, removable water trap cannot be used
-Floor: concrete and tiled
-Frame: 5-3/4 x 5-3/4 inch
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 34 |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Number of Screws | 2 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 150x150 |
| Size of Frame (Inch) | 5-7/8 x 5-7/8 |
| Weight (kg) | 0.22 |
| Weight (lbs) | 0.49 |
-
Approval Information
For approval information, please refer to the below approval certificates.
