ROOF DRAIN FOR GRAVITY - (401.104.050)
×
![]()
Part Of the Series: Drain for gravity-bitumen
Type no.: 401.104.050
EAN no.: 5705499132731
VVS no.: 164100050
RSK no.: 5173691
LVI no.: 3384518

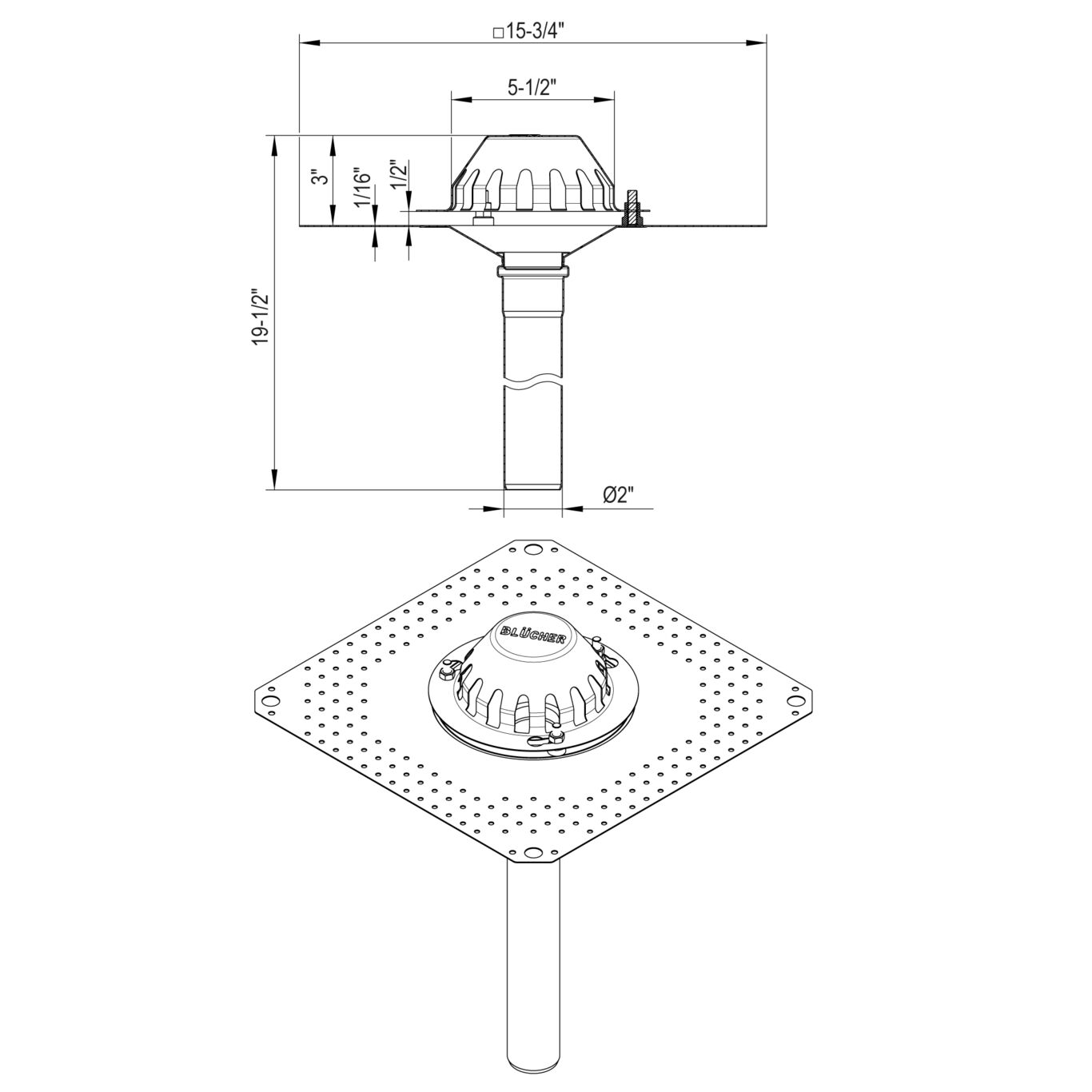

ROOF DRAIN FOR GRAVITY
-Roof: bitumen
-Flange: 15-3/4 x 15-3/4 inch
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.8 |
| Minimum Height (mm) | 495 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Gravity |
| Weight (kg) | 1.72 |
| Weight (lbs) | 3.79 |
-
Approval Information
For approval information, please refer to the below approval certificates.
