ROOF DRAIN FOR GRAVITY, HIGH - (402.106.110)
×
![]()
Part Of the Series: Drain for gravity-single ply membrane
Type no.: 402.106.110
EAN no.: 5705499132816
VVS no.: 164101310
RSK no.: 5173700
NRF no.: 3395004
LVI no.: 3384533

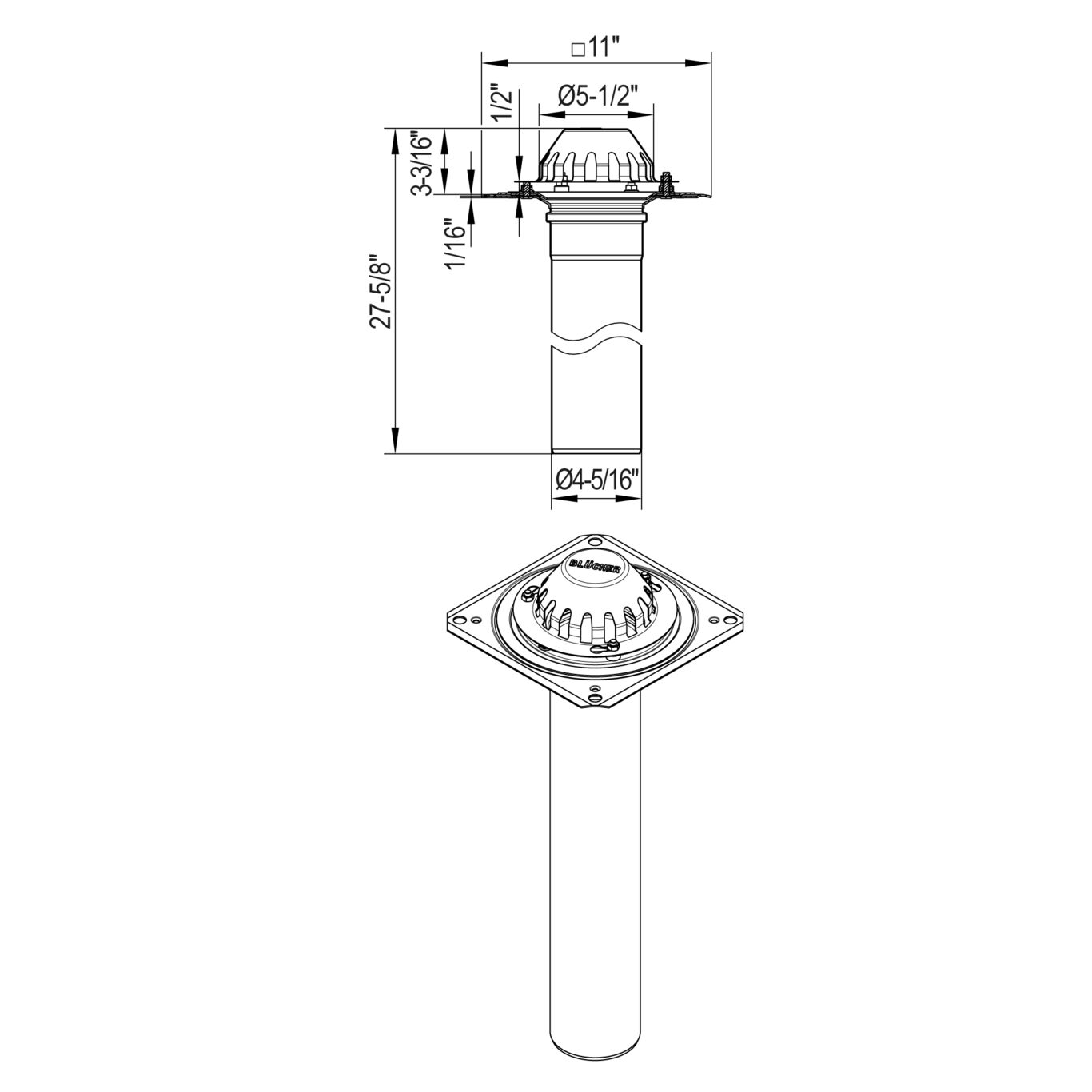

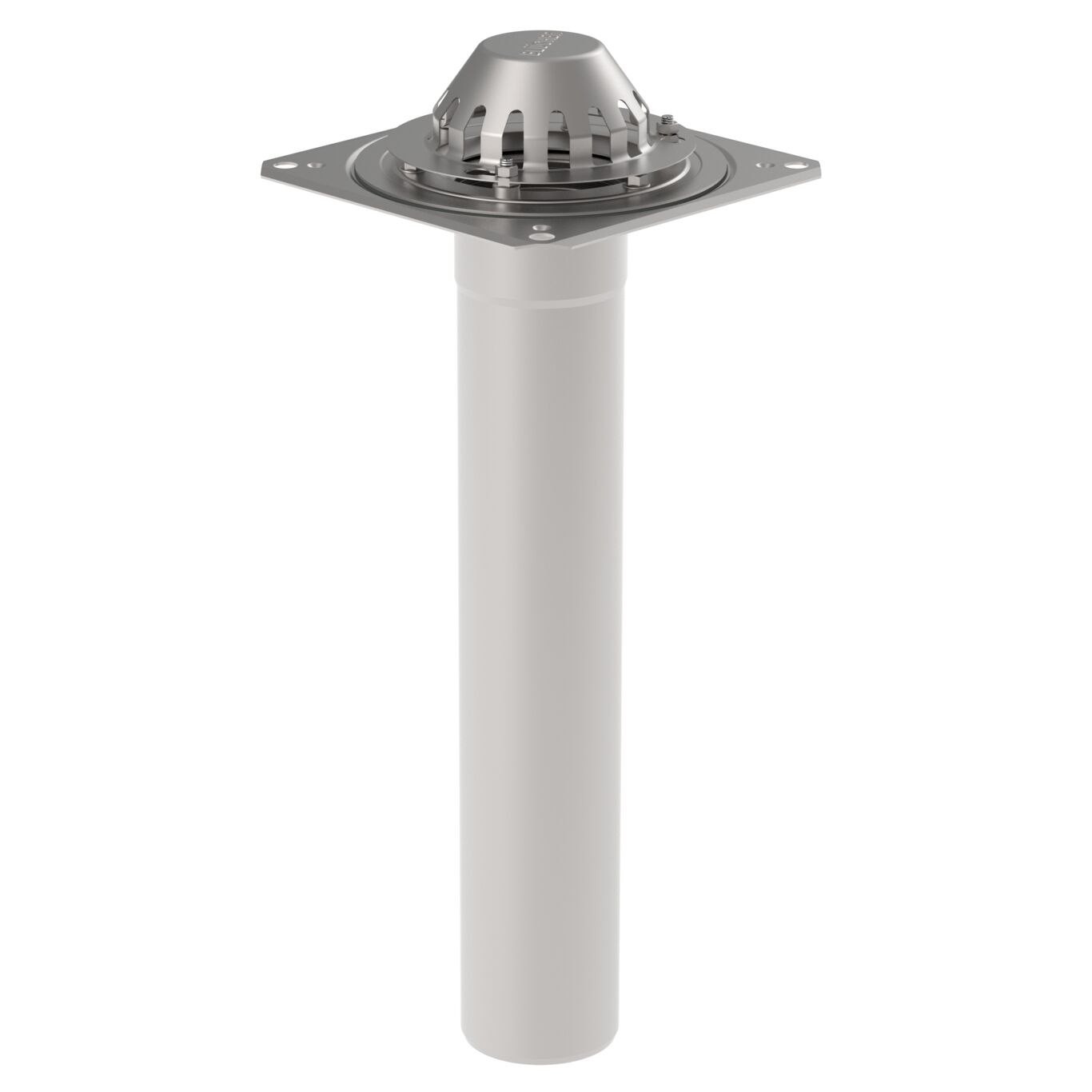

ROOF DRAIN FOR GRAVITY, HIGH
-Roof: single ply membrane
-Flange: 11 x 11 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 5.1 |
| Minimum Height (mm) | 701 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| System | Gravity |
| Weight (kg) | 3.78 |
| Weight (lbs) | 8.33 |
-
Approval Information
For approval information, please refer to the below approval certificates.
