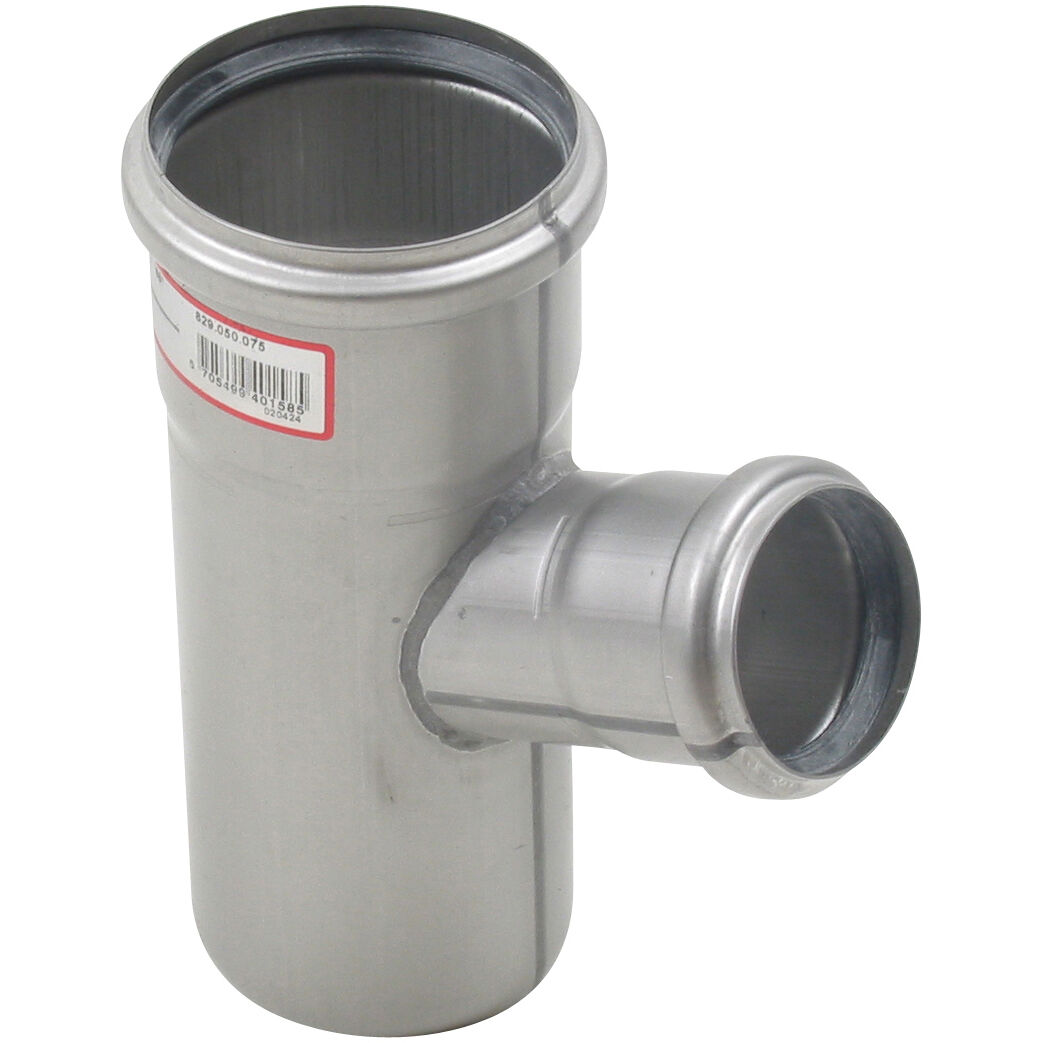

BRANCH 67.5° - (829.050.075)
×
![]()
Part Of the Series: Branch-67.5
Type no.: 829.050.075
EAN no.: 5705499401585
VVS no.: 160223073
NRF no.: 2172328
LVI no.: 0246011

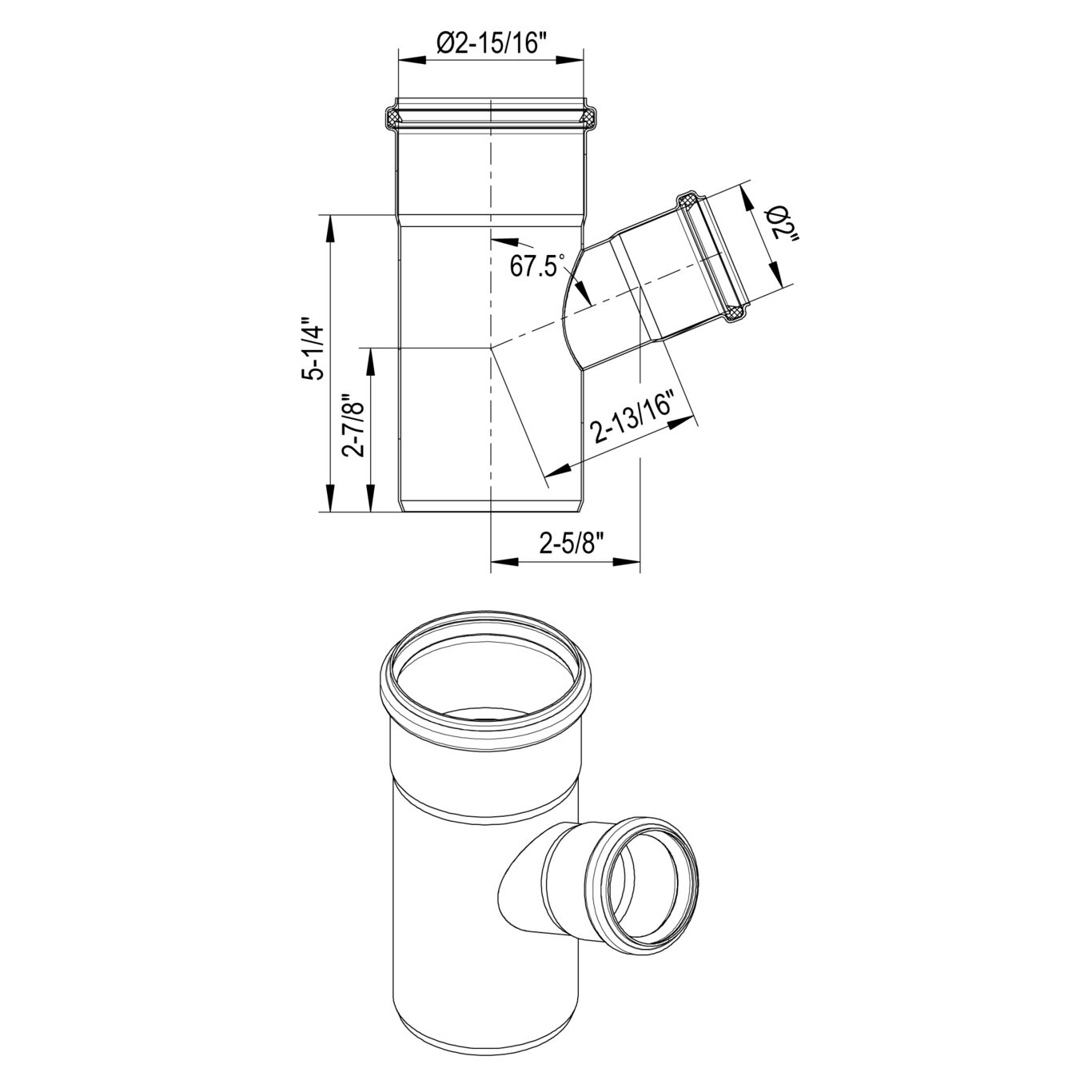

BRANCH 67.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 67.5 |
| Length (mm) | 139 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 1 |
| Weight (lbs) | 2.2 |
-
Approval Information
For approval information, please refer to the below approval certificates.
