BRANCH 87.5° - (830.075.160)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.075.160
EAN no.: 5705499412550
NRF no.: 2172338
LVI no.: 0246016

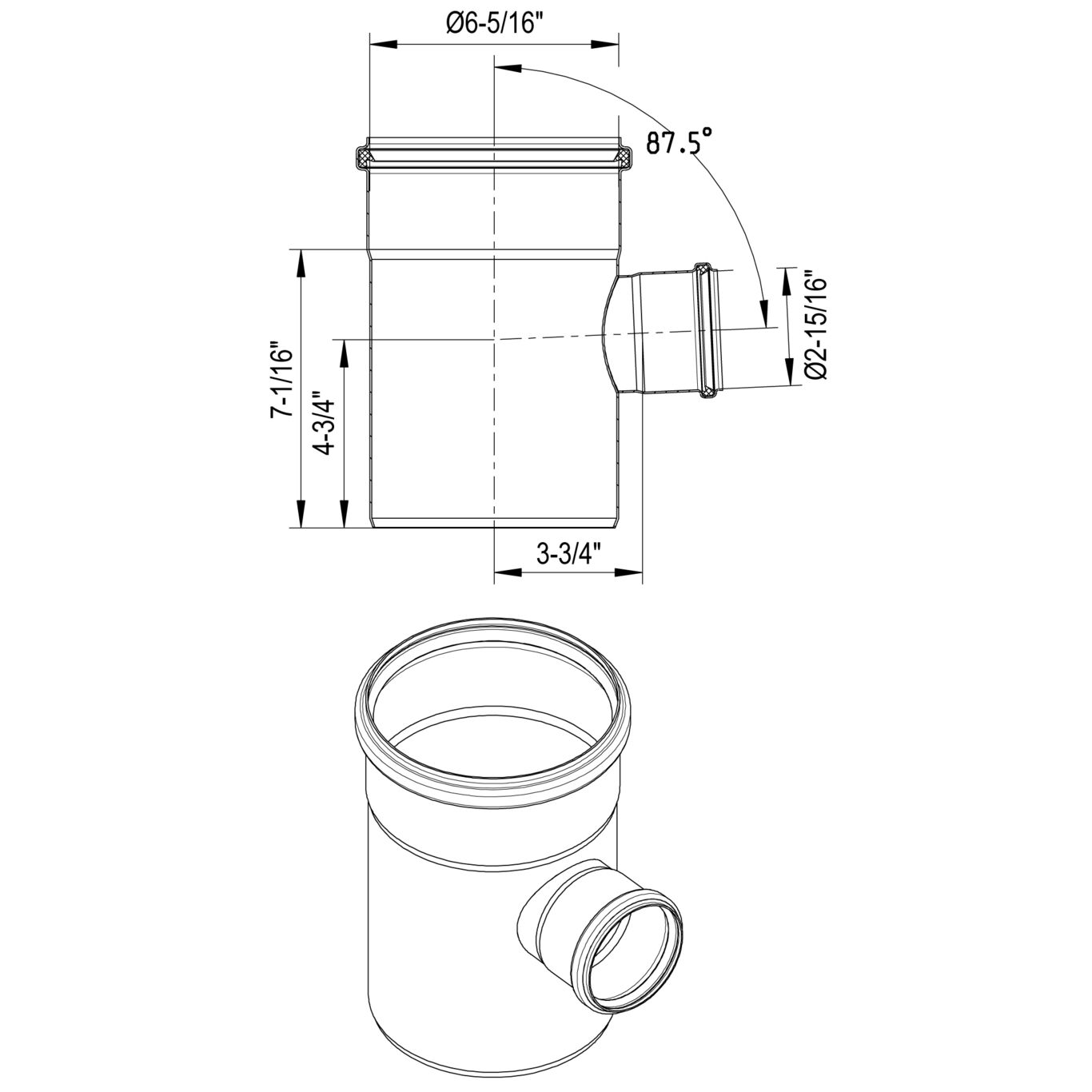

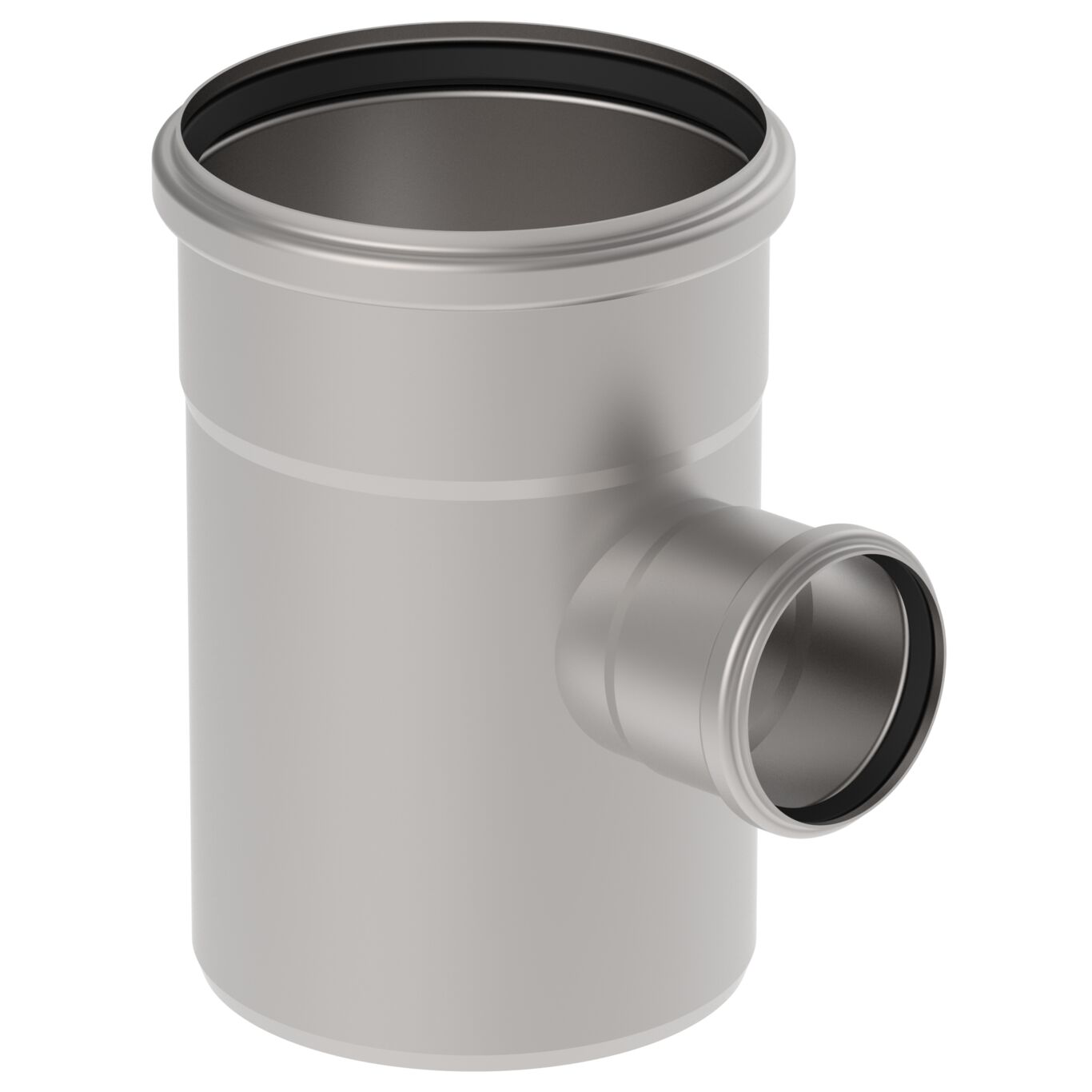

BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 179 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 1.46 |
| Weight (lbs) | 3.22 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 KR - Type Approval CPH42135-PE001 RU - 0212322 Pipes-21 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products
