DOUBLE BRANCH 87.5° - (832.050.075)
×
![]()
Part Of the Series: Double branch-87.5-90
Type no.: 832.050.075
EAN no.: 5705499401967
VVS no.: 160232073
NRF no.: 2172349
LVI no.: 0244953

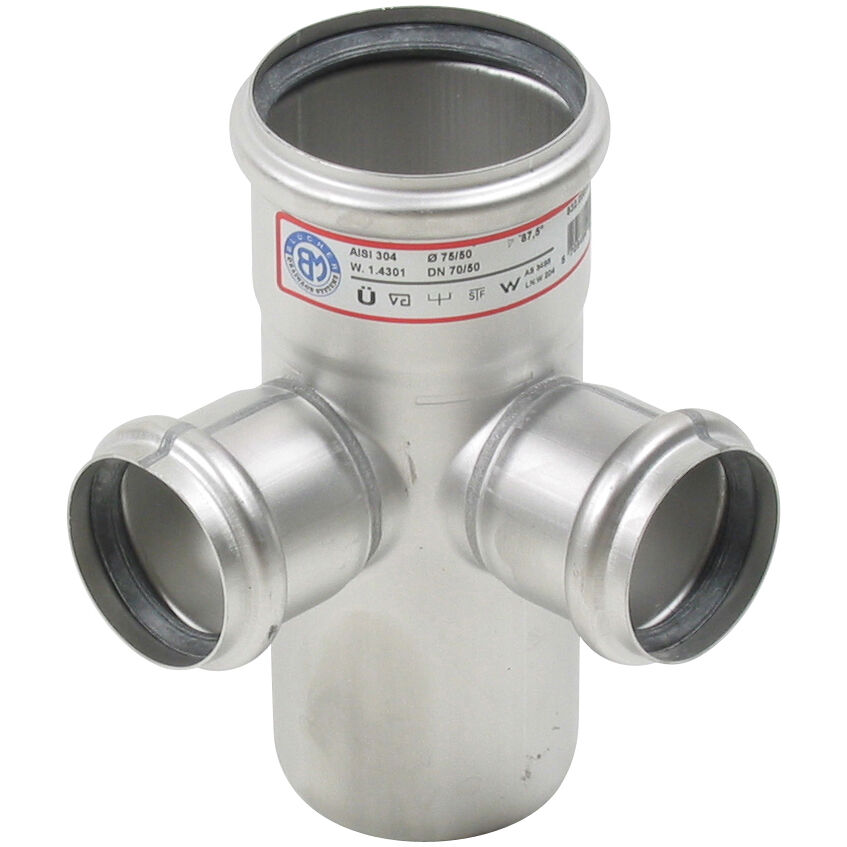

DOUBLE BRANCH 87.5°

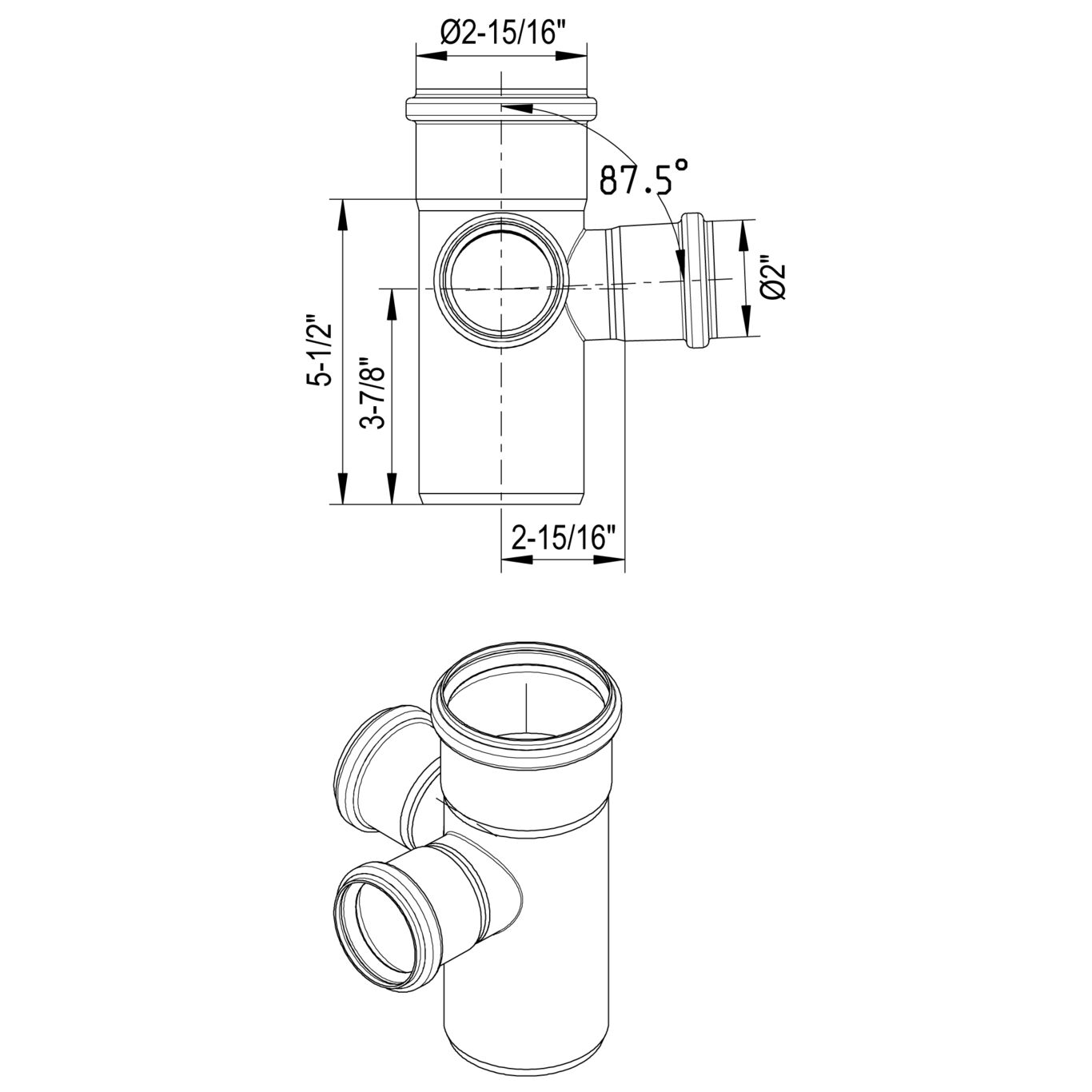

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 139 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.54 |
| Weight (lbs) | 1.19 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
