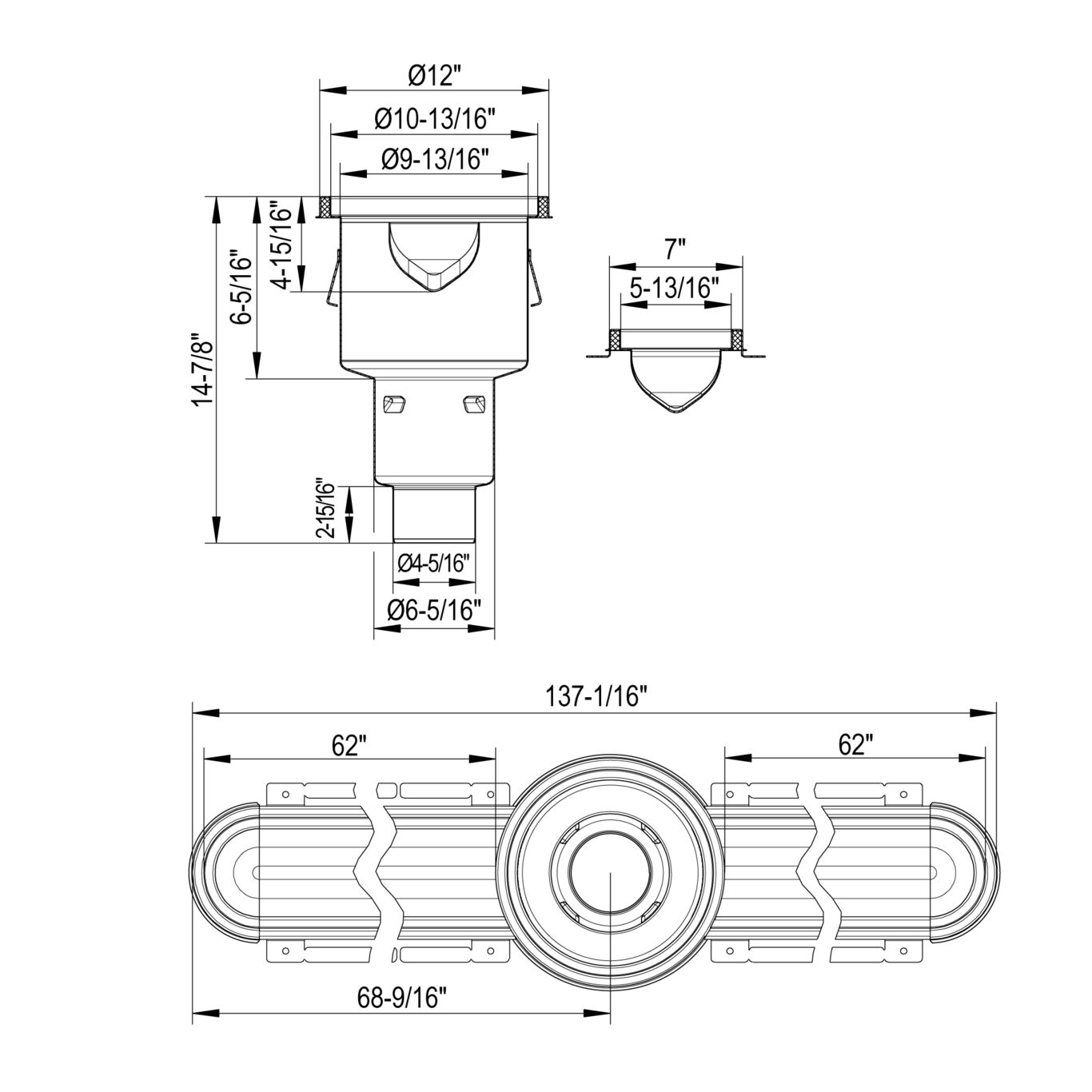

HYGIENICPRO CHANNEL 150x3000 CENTER OUTLET - (676CC030-15CF S)

Part Of the Series: Channel-No membrane

Type no.: 676CC030-15CF S

EAN no.: 5705499136821

LVI no.: 3305670

Size: 150x3000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type No Membrane
Minimum Height (mm) 378
Outlet Box Yes
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 150x3000
Size of Frame (Inch) 5-7/8 x 118-1/8
Weight (kg) 26.06
Weight (lbs) 57.45
  • Approval Information

    For approval information, please refer to the below approval certificates.
