SHOWER CHANNEL WATERLINE 800 - (275.080.056.20)
×
![]()
Part Of the Series: Shower channel-Vinyl
Type no.: 275.080.056.20
EAN no.: 5705499122534
VVS no.: 155060008
RSK no.: 7121680
NRF no.: 3394732
LVI no.: 3304475
Size: 50x800

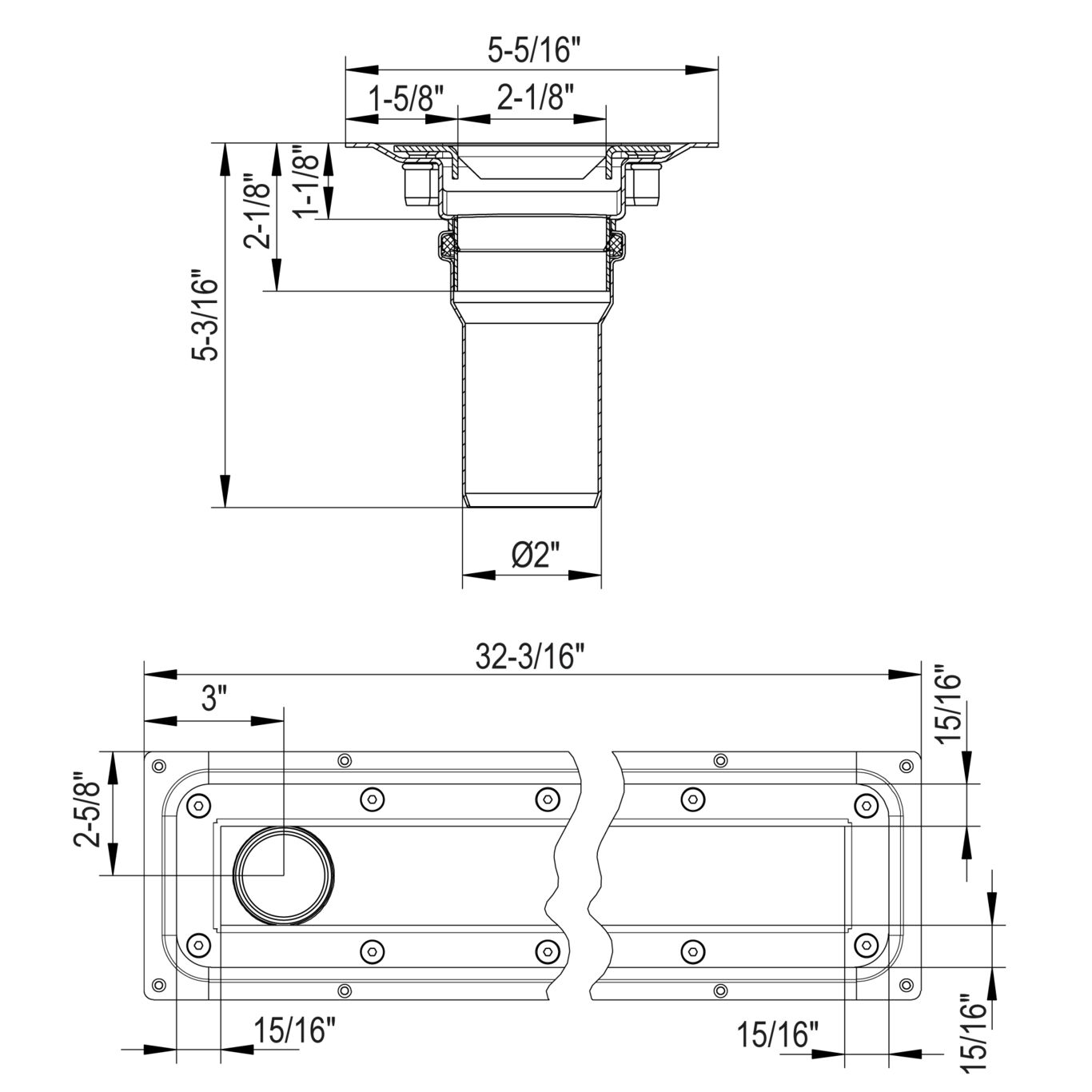

SHOWER CHANNEL WATERLINE 800
-Floor: vinyl
-Frame: rectangular
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 128 |
| Outlet Box | No |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 50x800 |
| Size of Frame (Inch) | 2 x 31-1/2 |
| Weight (kg) | 2.61 |
| Weight (lbs) | 5.75 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DK - MK 7.21/1664-21
DK - VA 2.44/19205-21
SE - RI.SE 0084-07 2021
FI-Tyyppihyväksyntä VTT-RTH-03128-08 Blücher Waterline 275,378-2017 RU - 0212321 Drains-21 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA PL - Hygienic Certificate - All Products ABS - LD1716353-PDA
