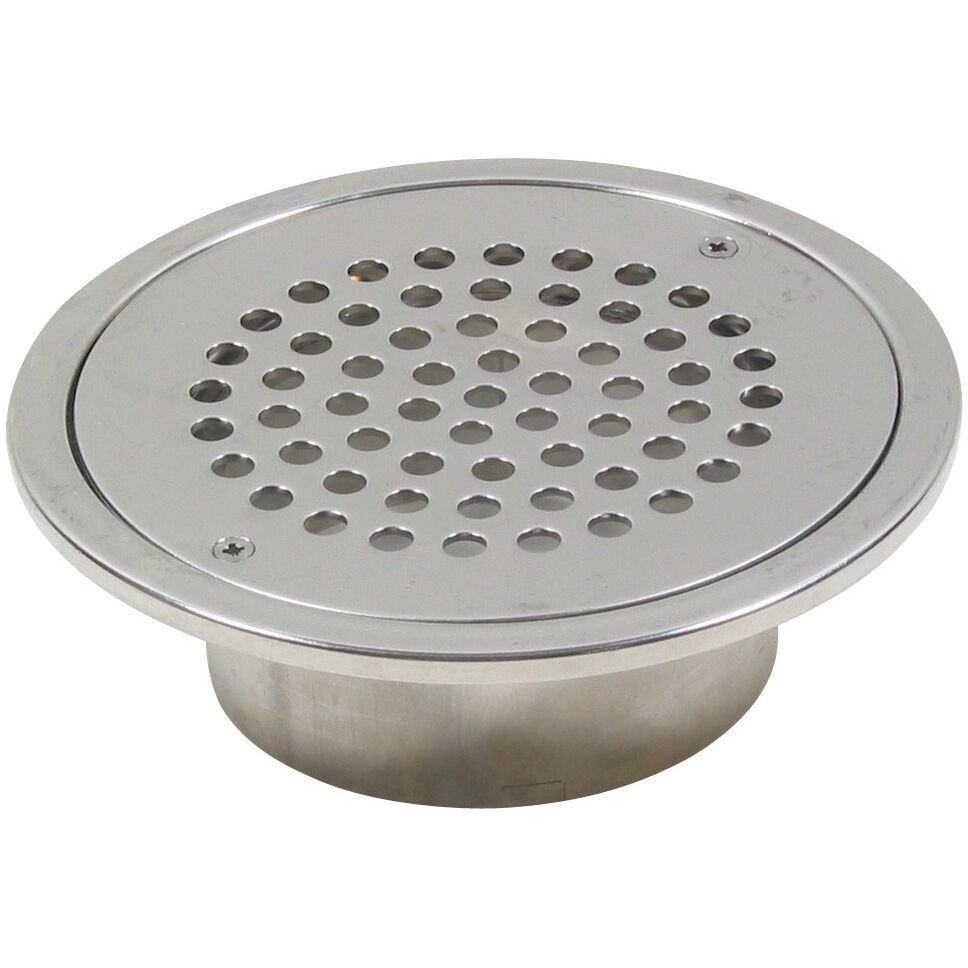

UPPER PART CIRCLE - (150.320.000 S)

Part Of the Series: Upper part-No membrane-180

Type no.: 150.320.000 S

EAN no.: 5705499118049

VVS no.: 153337116

LVI no.: 3304251

Size: Ø155


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Resin
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 59
Number of Screw Holes 3
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Round
Size (mm) Ø155
Size of Frame (Inch) Ø6-1/8
Weight (kg) 0.57
Weight (lbs) 1.26
