LOWER PART - (150.000.075 S)
×
![]()
Part Of the Series: Lower part-110
Type no.: 150.000.075 S
EAN no.: 5705499107081
LVI no.: 3303754

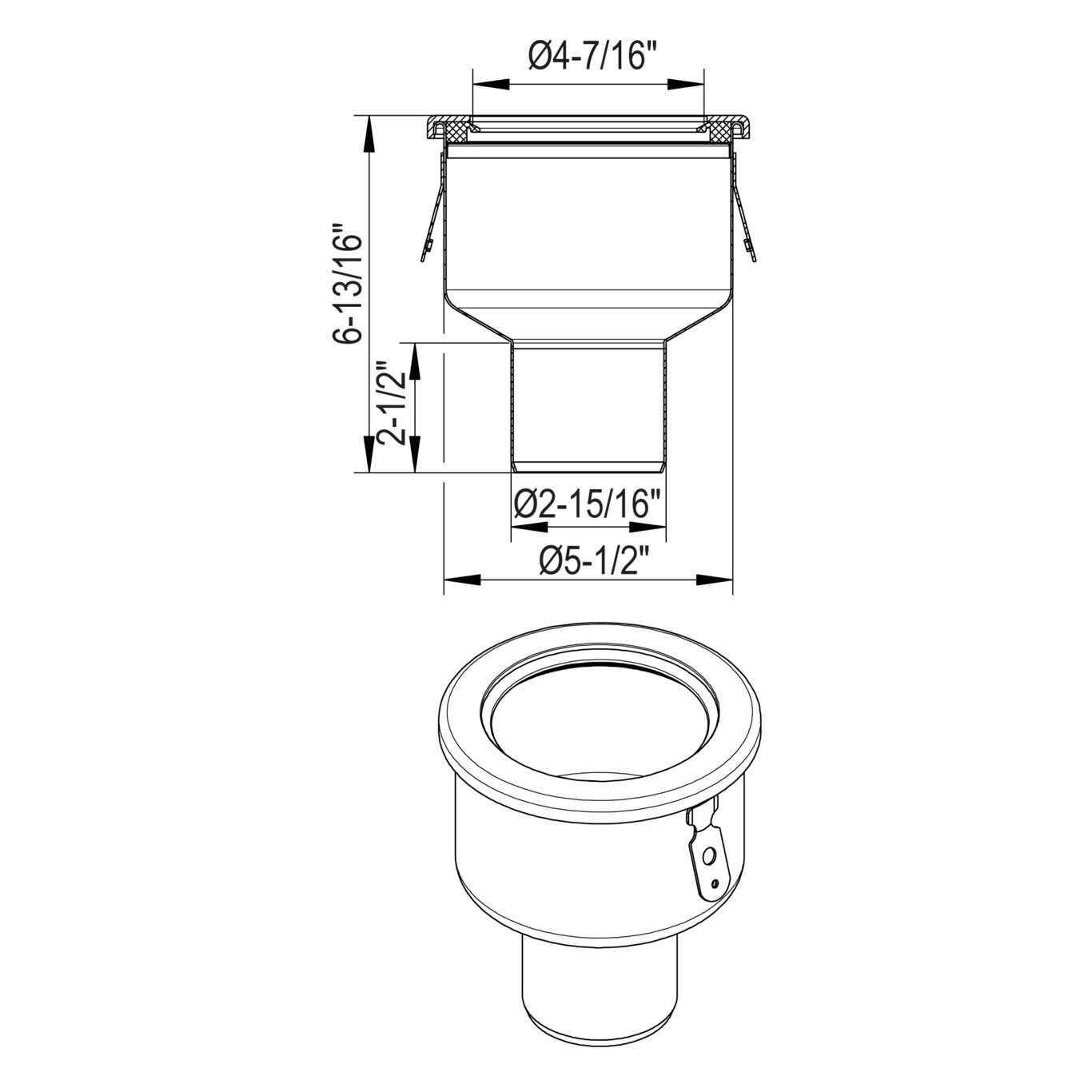

LOWER PART
-No membrane flange
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic / Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 173 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Weight (kg) | 0.94 |
| Weight (lbs) | 2.07 |
-
Approval Information
For approval information, please refer to the below approval certificates.
