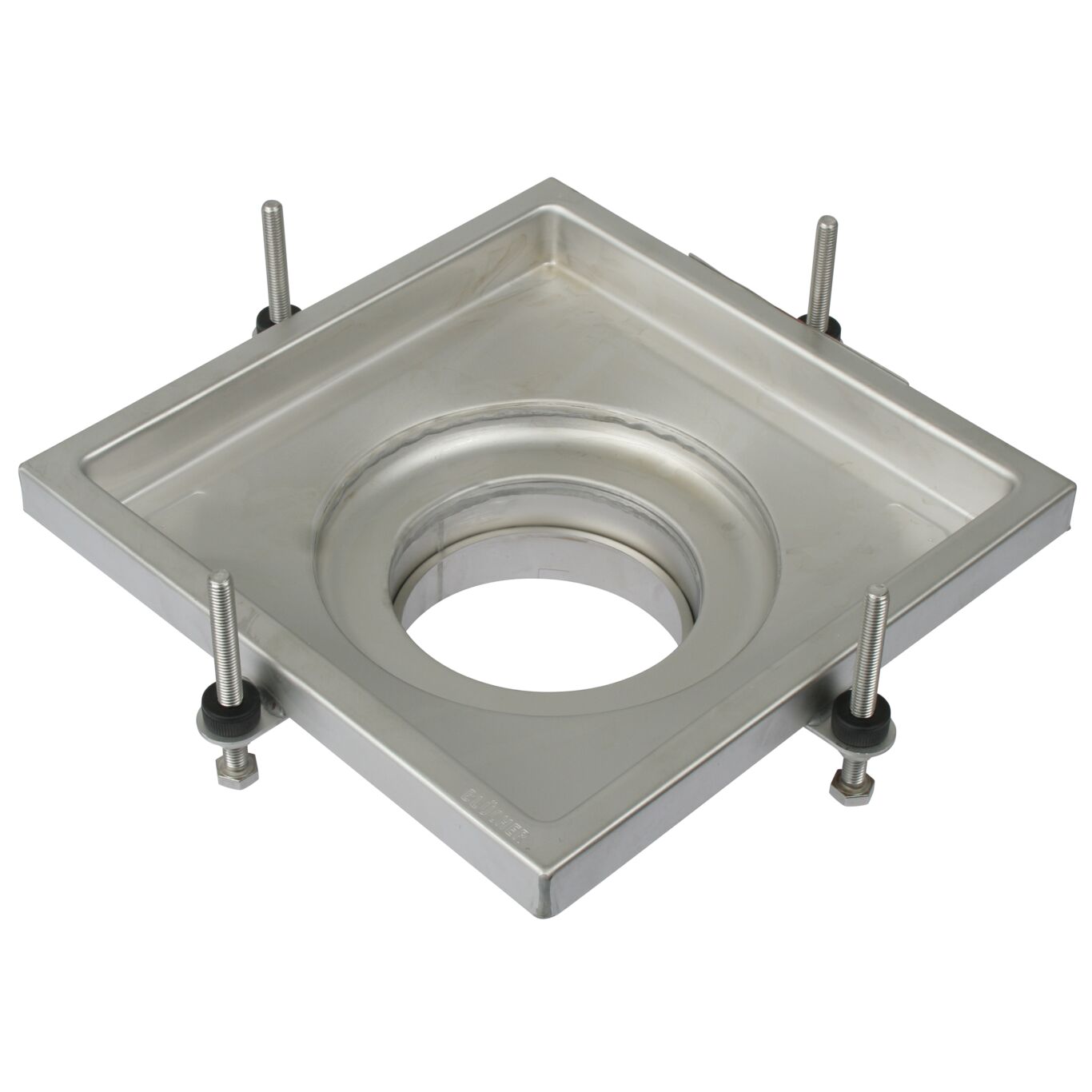

UPPER PART - (710.401.000 S)

Part Of the Series: Upper part-No membrane-250

Type no.: 710.401.000 S

EAN no.: 5705499128772

Size: 250x250


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 316L
Material (EN) EN 1.4404
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Square
Size (mm) 250x250
Size of Frame (Inch) 9-7/8 x 9-7/8
Weight (kg) 1.87
Weight (lbs) 4.12
