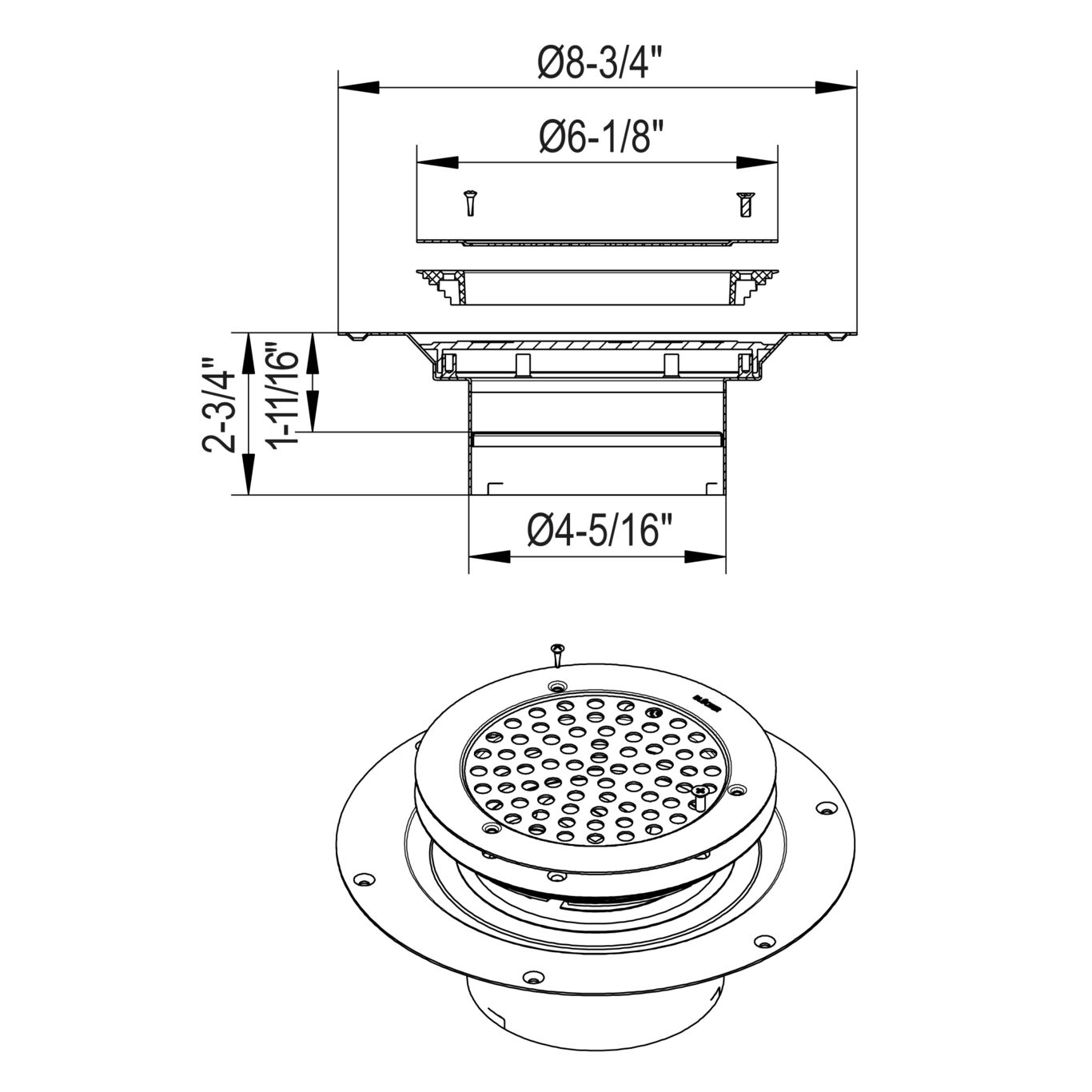

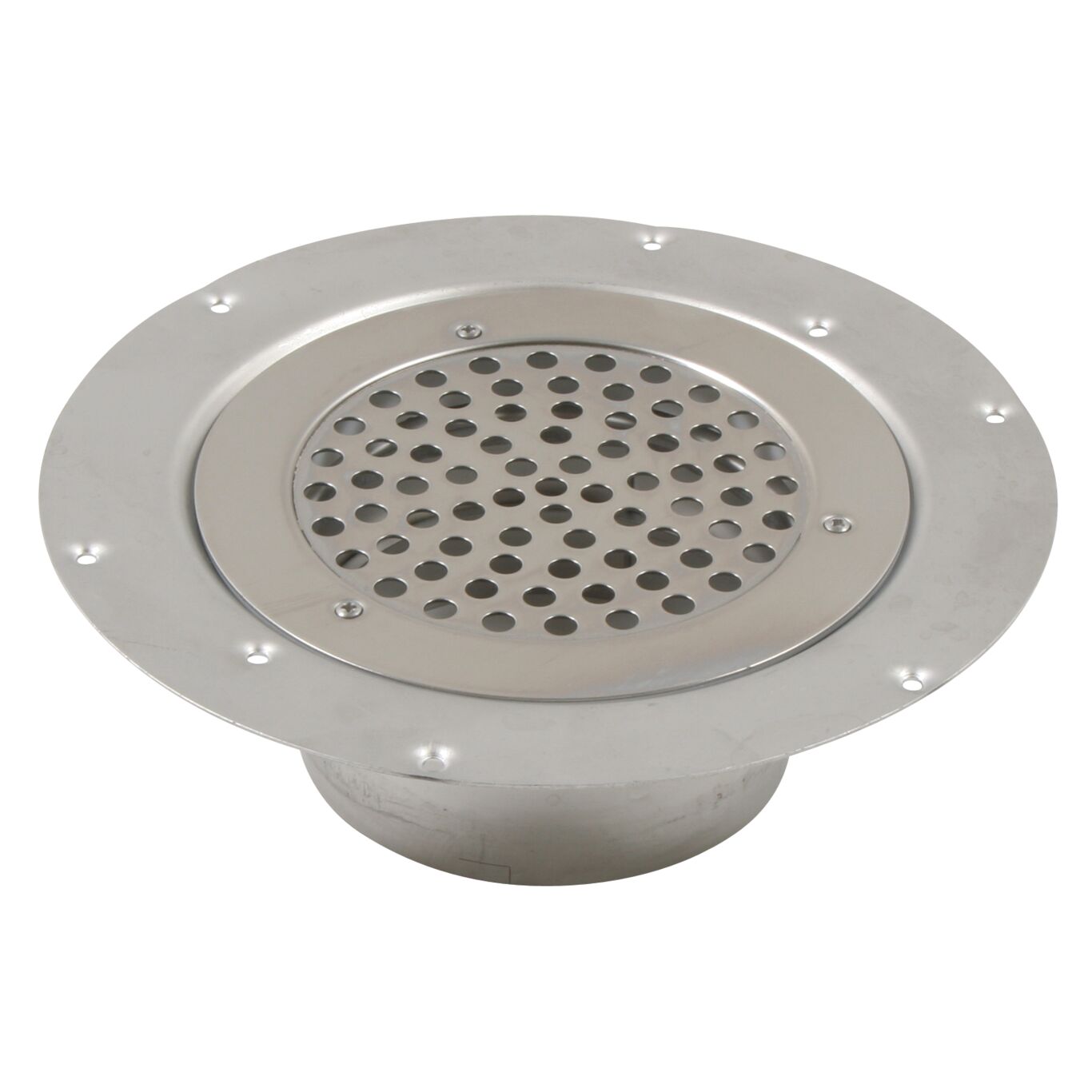

UPPER PART CIRCLE - (250.300.000)

Part Of the Series: Upper part-Vinyl-155

Type no.: 250.300.000

EAN no.: 5705499107012

VVS no.: 153612710

RSK no.: 7122074

Size: Ø155


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Vinyl
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 70
Number of Screw Holes 3
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Round
Size (mm) Ø155
Size of Frame (Inch) Ø6-1/8
Weight (kg) 0.55
Weight (lbs) 1.21

Flange

Lower parts
