LOWER PART - (110.000.110)
×
Part Of the Series: Lower part-110
Type no.: 110.000.110
EAN no.: 5705499129403

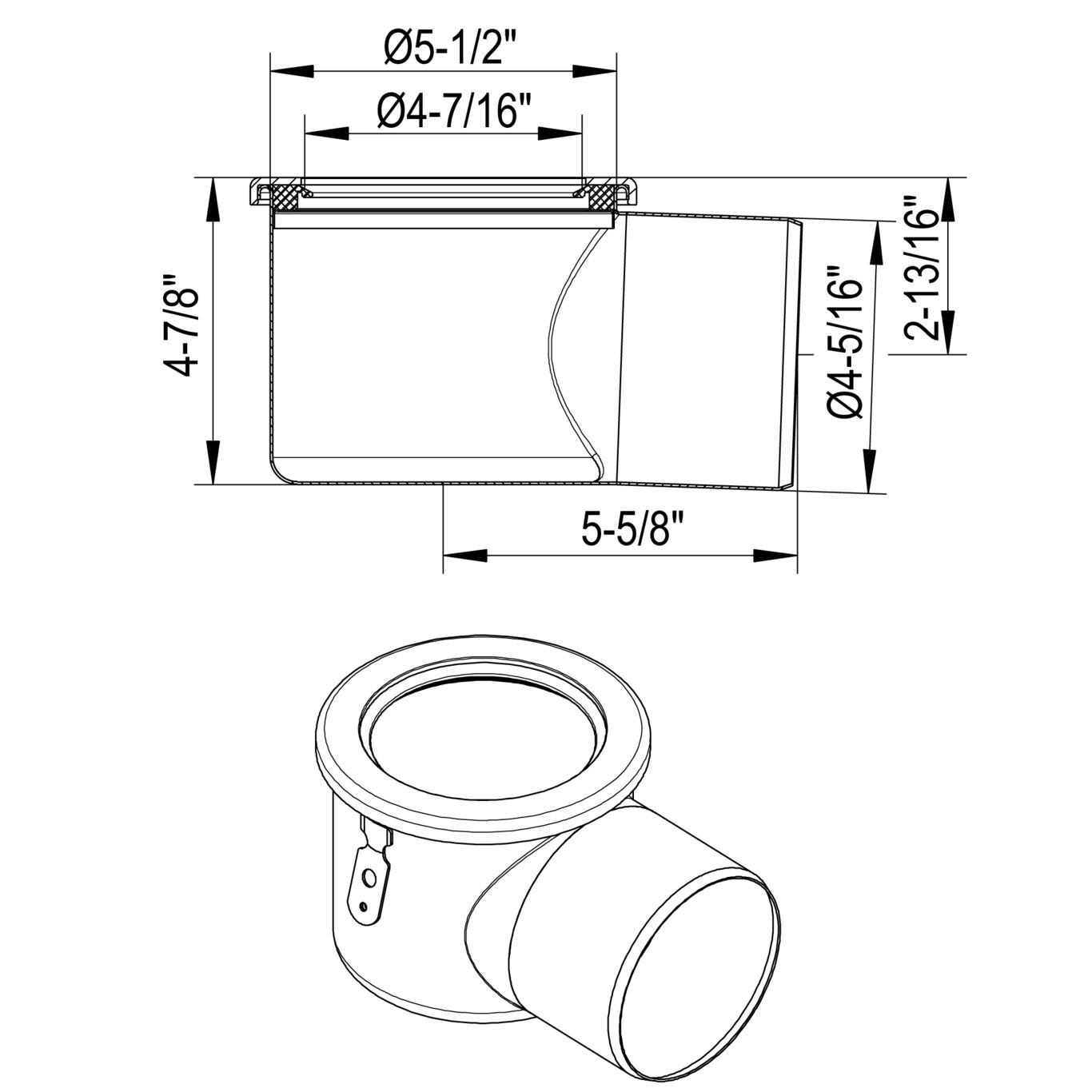

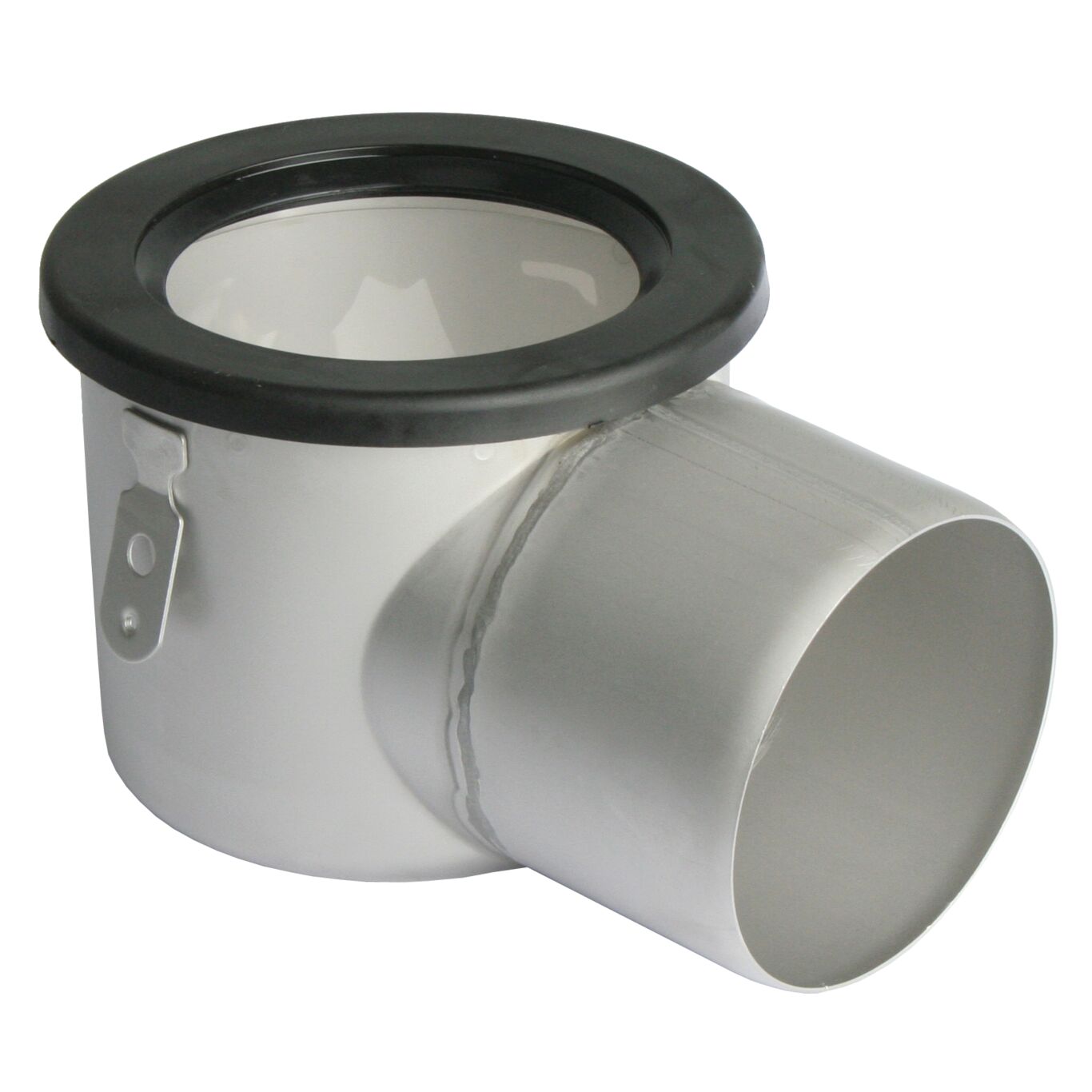

LOWER PART
-No membrane flange
-Outlet: Ø4 inch, horizontal
-Stainless steel: AISI304/EN1.4301
Part of US Order Number(s) BFD-###
Product Specification | |
---|---|
Field of Application | Domestic / Industrial |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 124 |
Number of Inlets | 0 |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Outlet Direction | Horizontal |
Weight (kg) | 0.85 |
Weight (lbs) | 1.87 |
-
Approval Information
For approval information, please refer to the below approval certificates.
