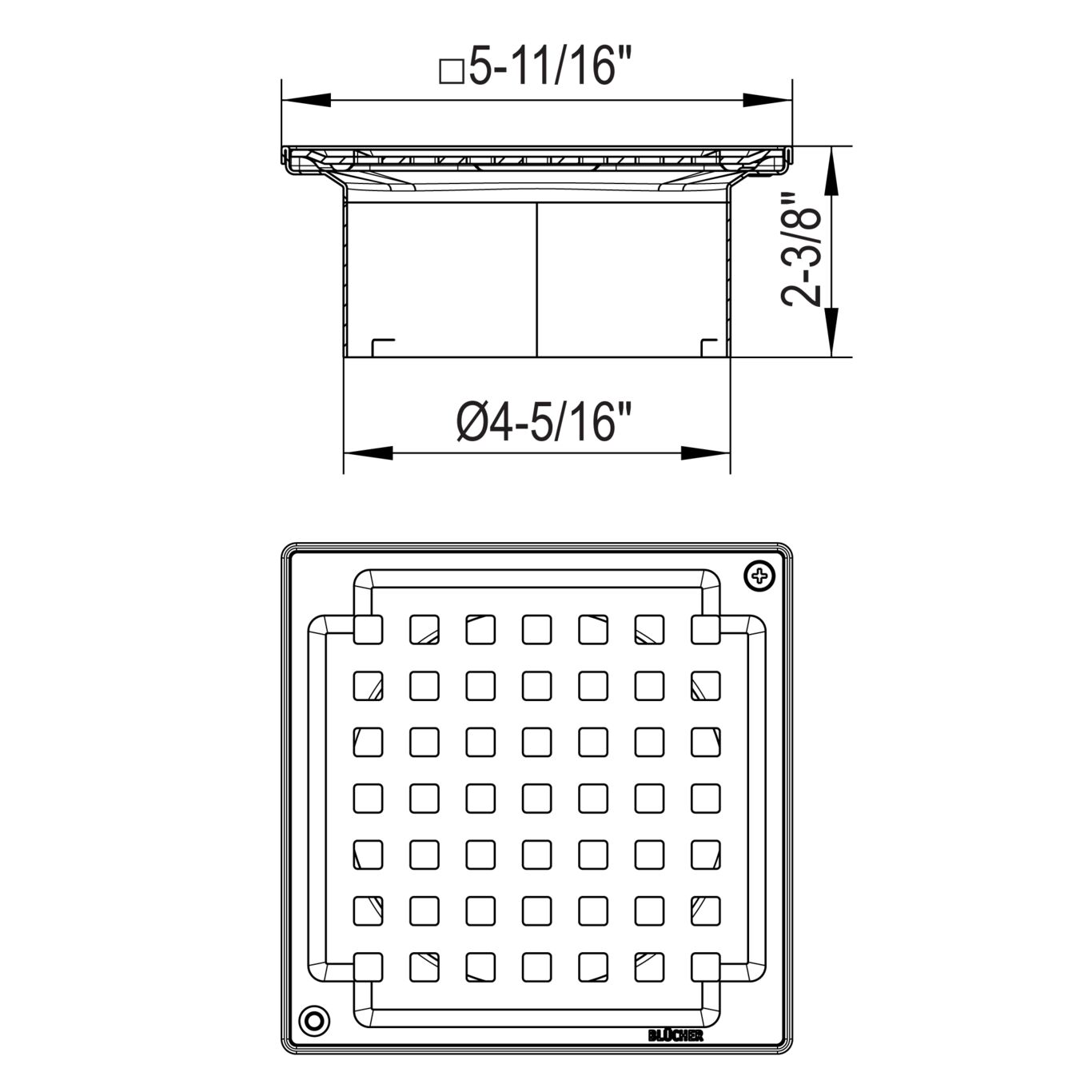

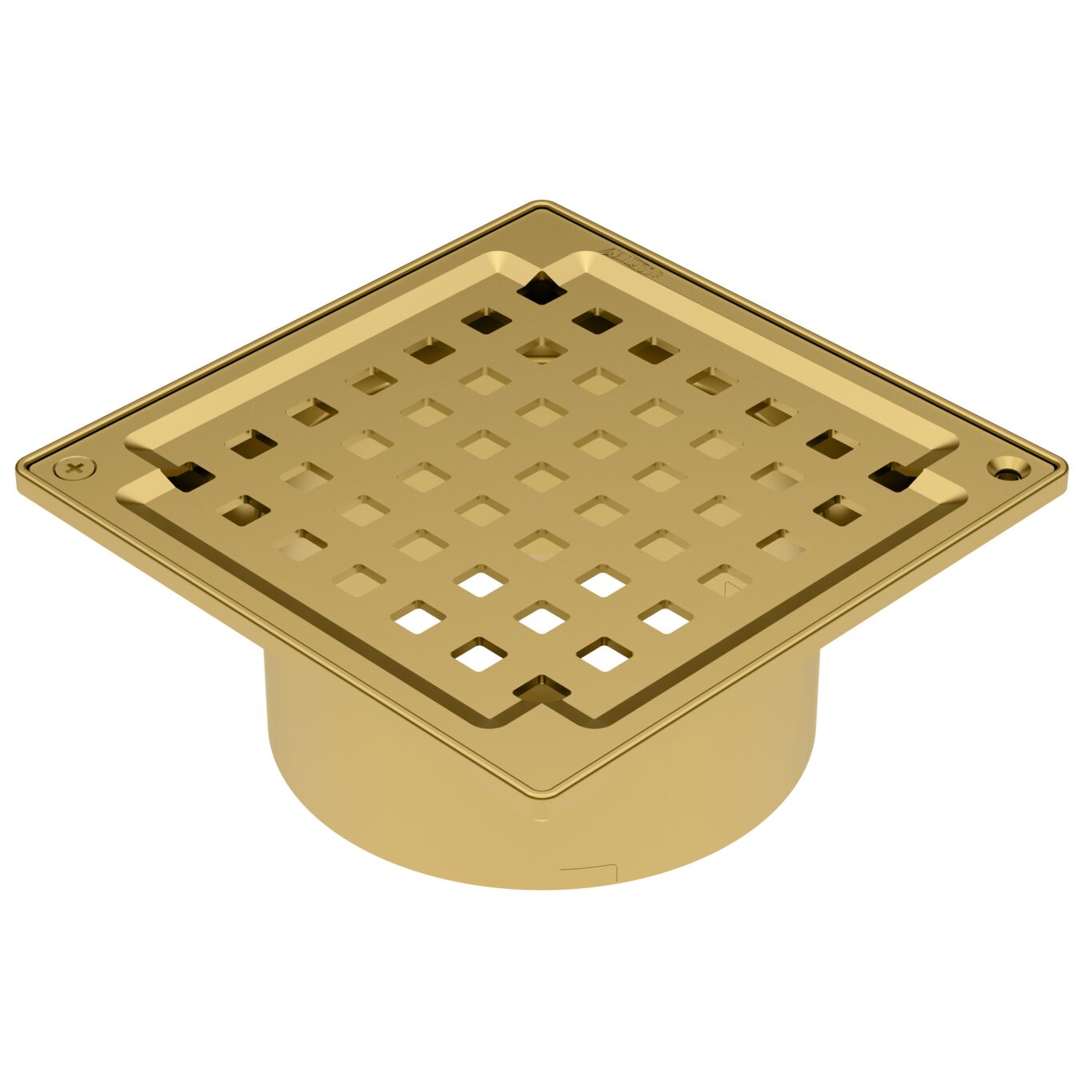

UPPER PART SQUARE - (110.300.000 M)

Part Of the Series: Upper part-No membrane-145

Type no.: 110.300.000 M

EAN no.: 5705499139174

VVS no.: 153327820

Size: 145x145


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Number of Screw Holes 2
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Square
Size (mm) 145x145
Size of Frame (Inch) 5-3/4 x 5-3/4
Weight (kg) 0.53
Weight (lbs) 1.17
