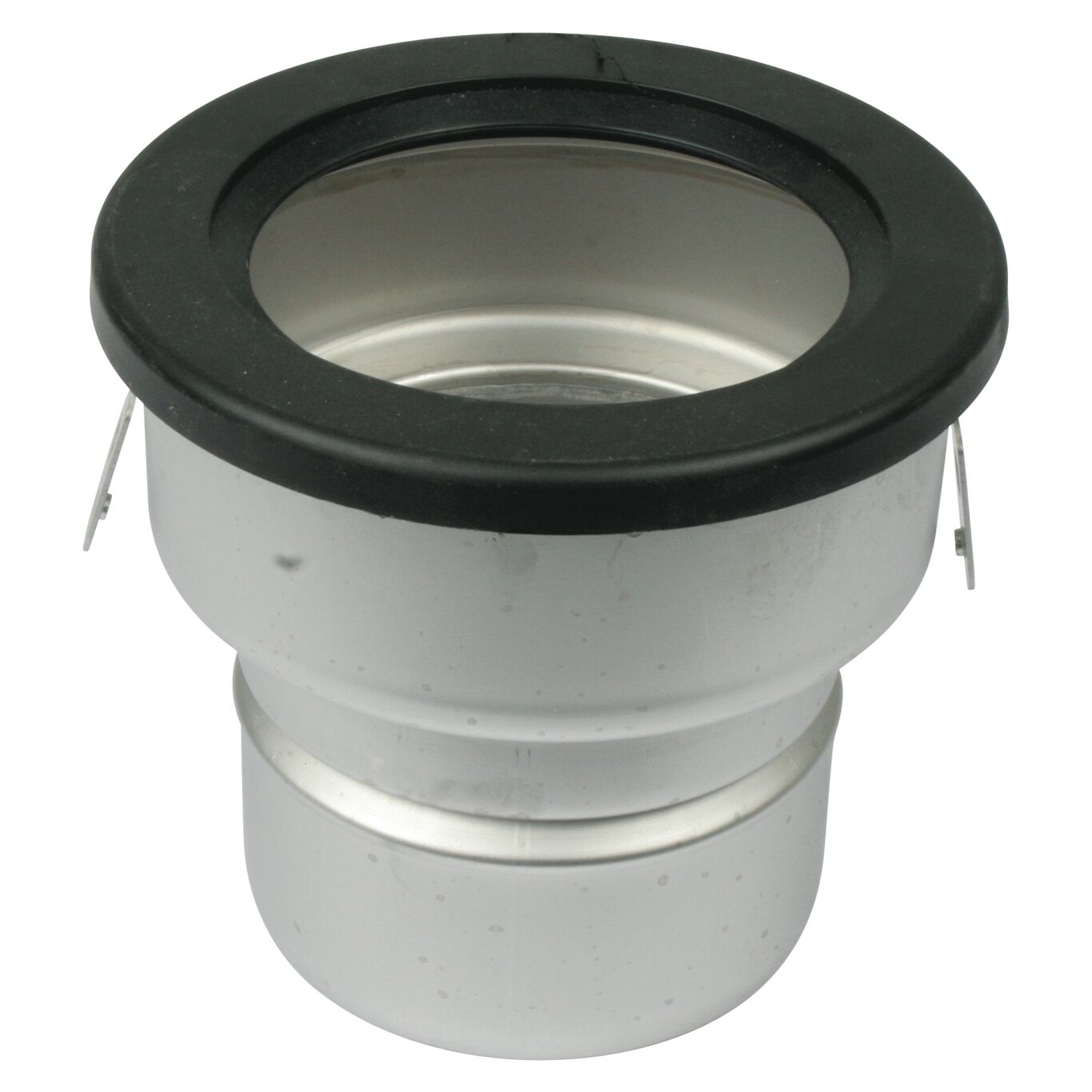

LOWER PART - (150.000.110)

Part Of the Series: Lower part-110

Type no.: 150.000.110

EAN no.: 5705499107098

NRF no.: 3396323

LVI no.: 3303755

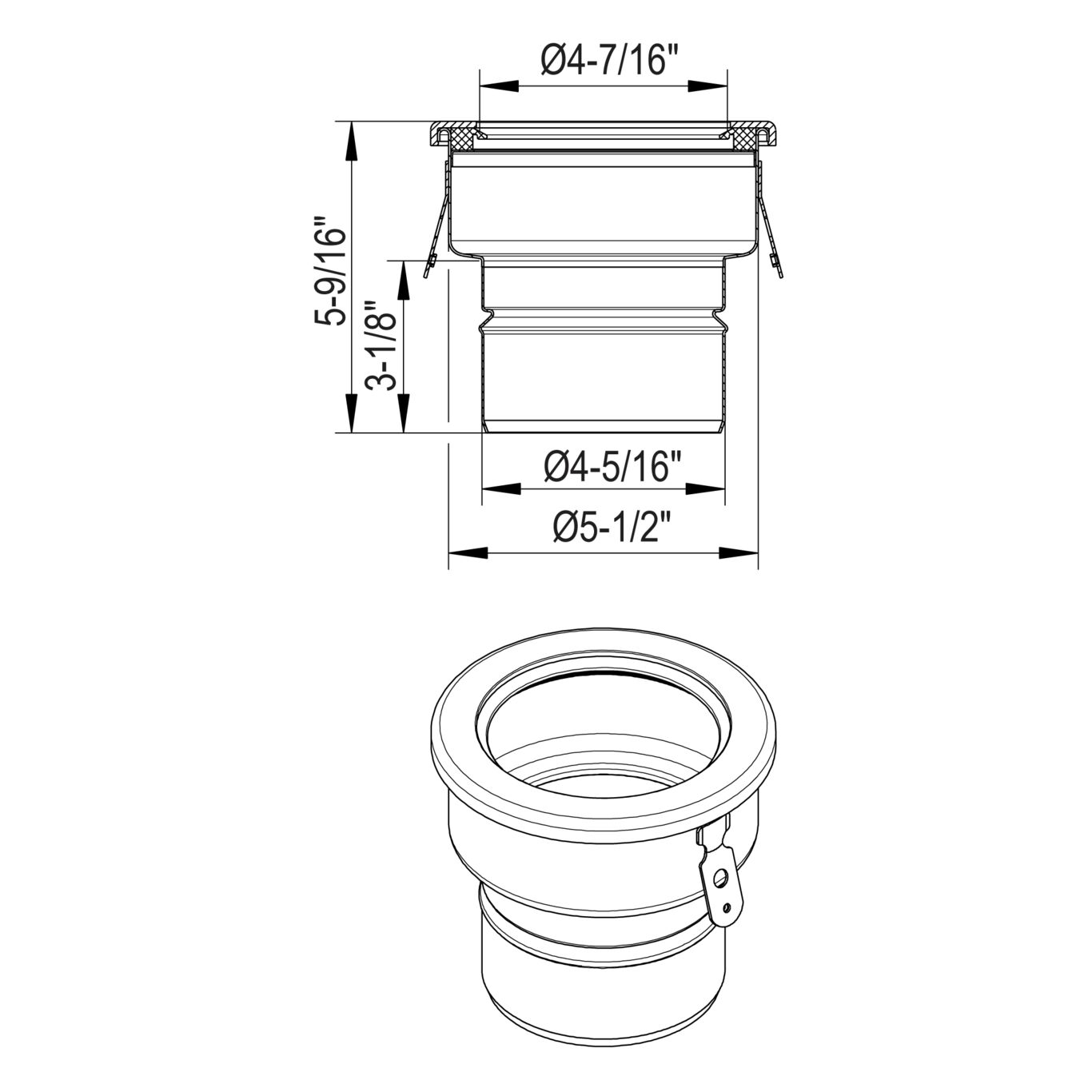

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic / Industrial
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 141
Number of Inlets 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Weight (kg) 1.04
Weight (lbs) 2.29

Flange
