UPPER PART SQUARE - (110.300.000 B)
×
![]()
Part Of the Series: Upper part-No membrane-145
Type no.: 110.300.000 B
EAN no.: 5705499139167
VVS no.: 153327810
Size: 145x145

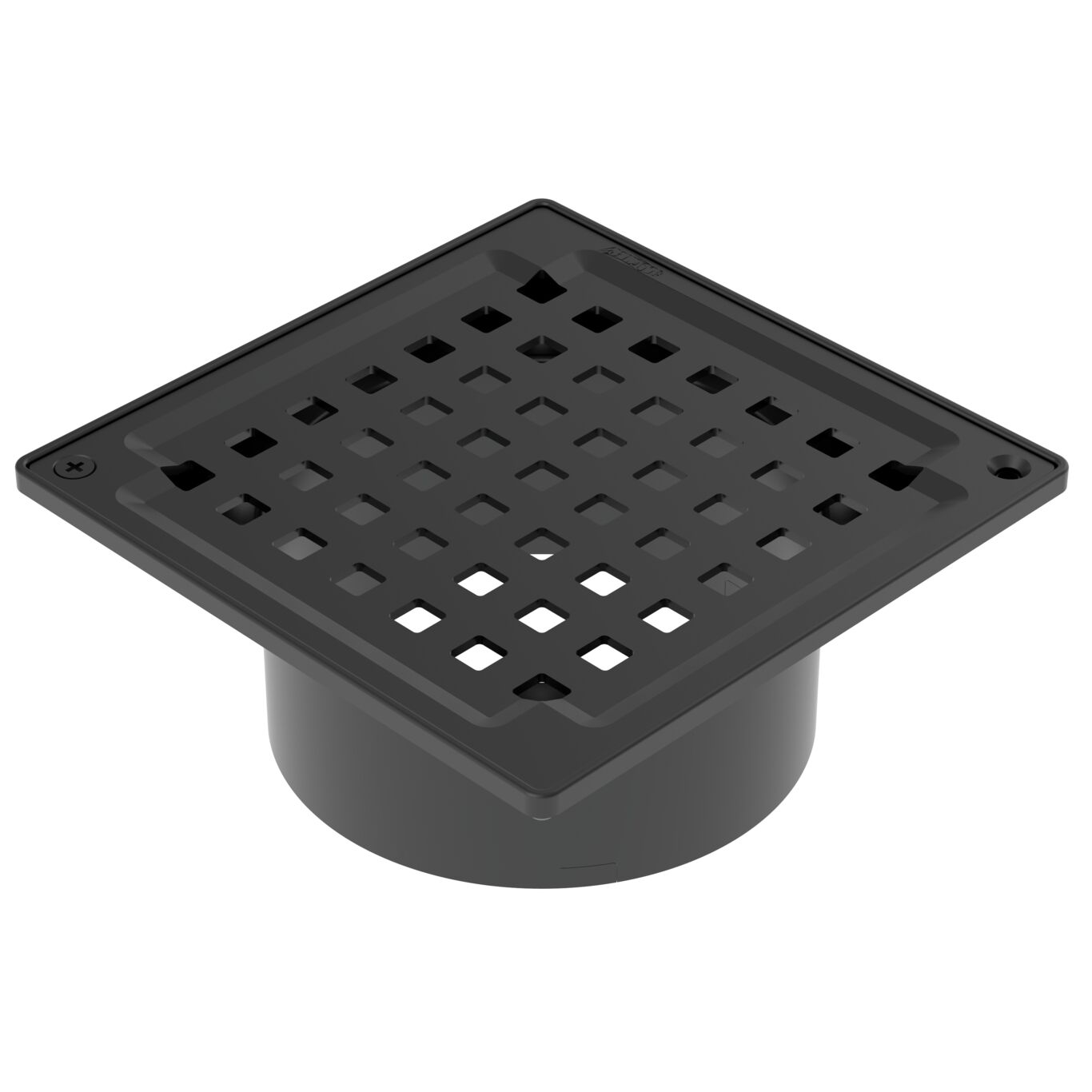

UPPER PART SQUARE
- No supporting ring
- Floor: concrete and tiled
- Frame: 5-3/4 x 5-3/4 inch
- Colour: Black
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Square |
| Size (mm) | 145x145 |
| Size of Frame (Inch) | 5-3/4 x 5-3/4 |
| Weight (kg) | 0.53 |
| Weight (lbs) | 1.17 |
-
Approval Information
For approval information, please refer to the below approval certificates.
