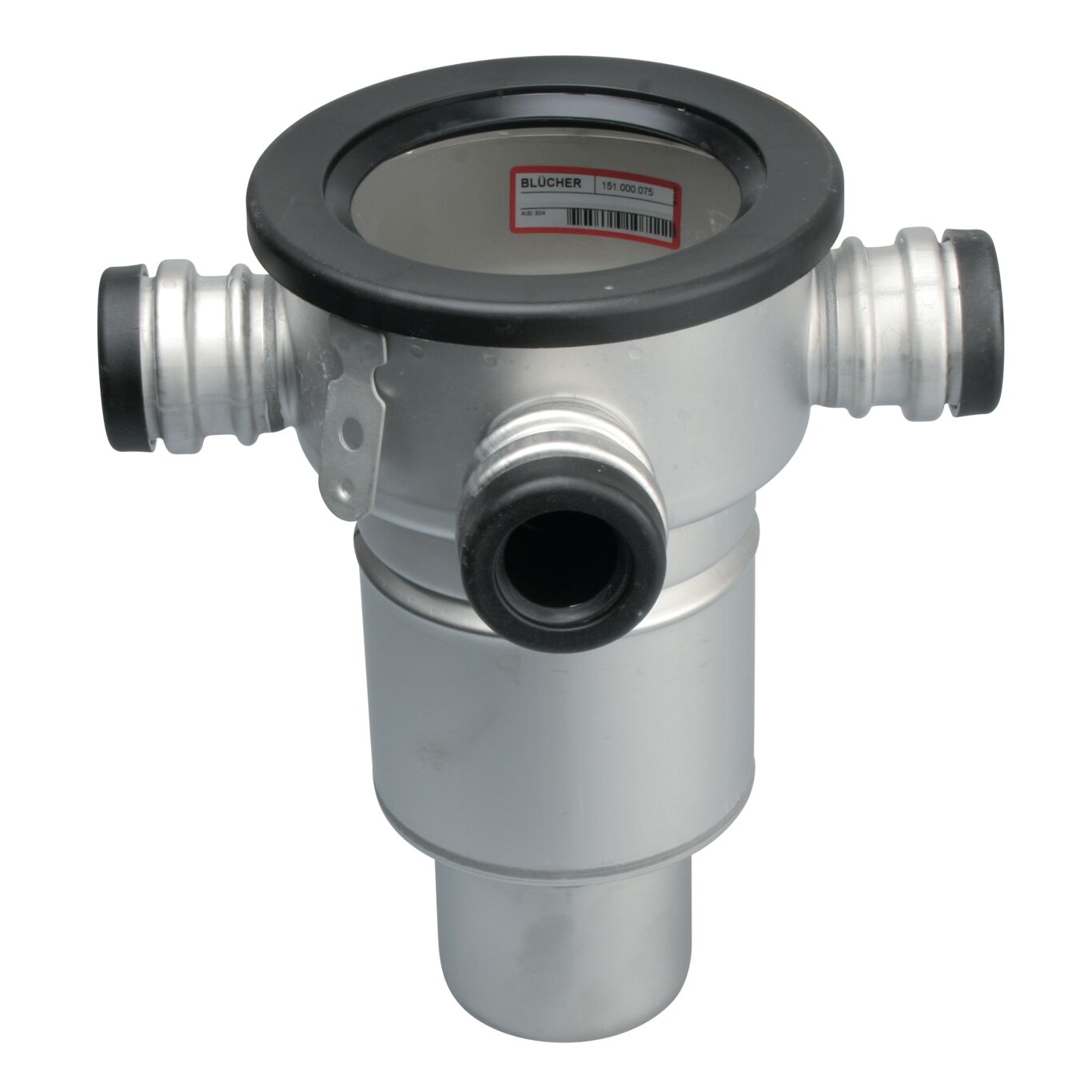

LOWER PART - (151.000.075)

Part Of the Series: Lower part-110

Type no.: 151.000.075

EAN no.: 5705499107111

LVI no.: 3303856


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane

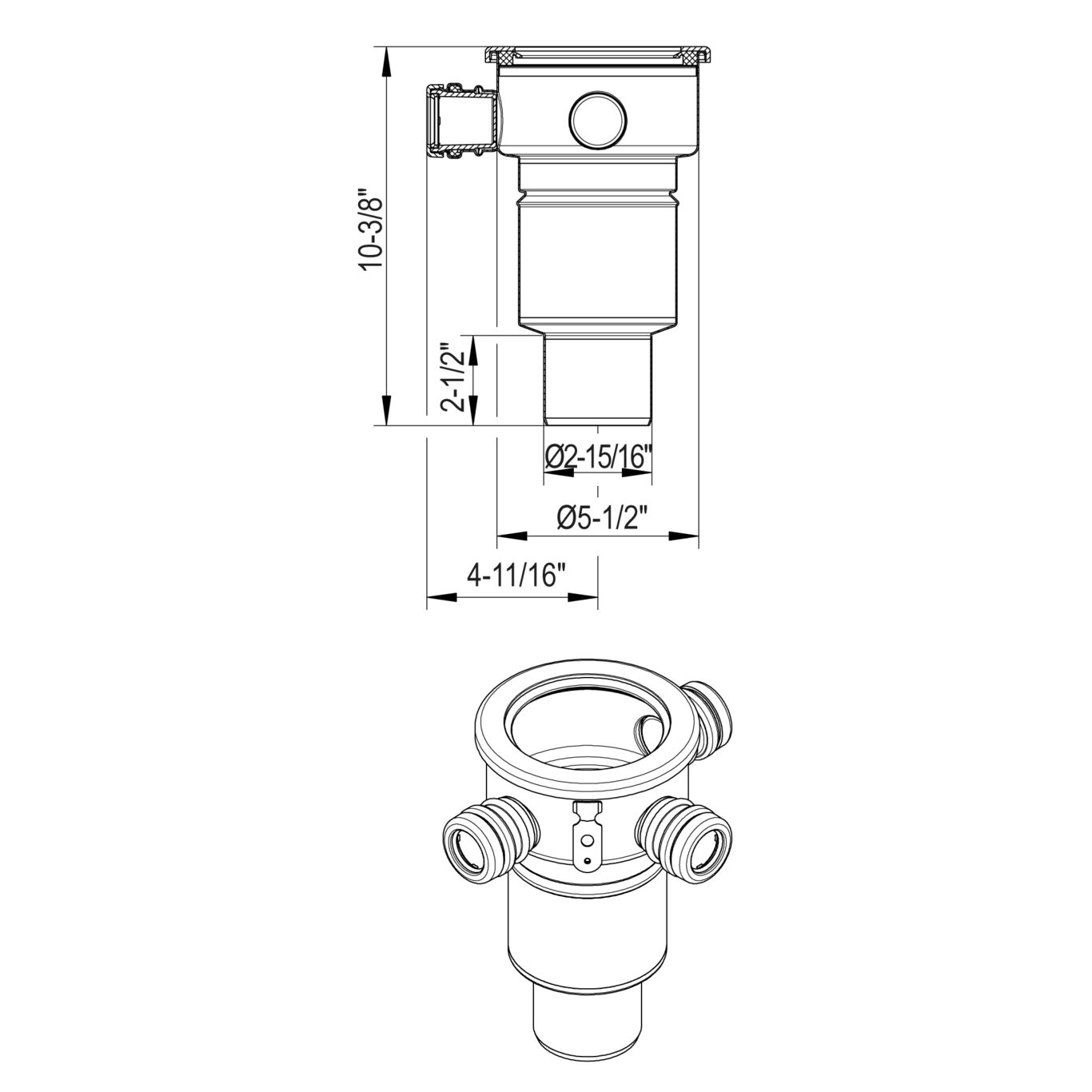

Minimum Height (mm) 263
Number of Inlets 3 (Ø32/40mm)
Number of Inlets (Inch) 3 (Ø1-1/4 inch, 1-1/2 inch)
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Vertical
Weight (kg) 1.4
Weight (lbs) 3.09

Flange
