UPPER PART TRIO - (110.380.000)

Part Of the Series: Upper part-No membrane-Triangular

Type no.: 110.380.000

EAN no.: 5705499120202

VVS no.: 153308110

RSK no.: 7119826


Download CAD Collections

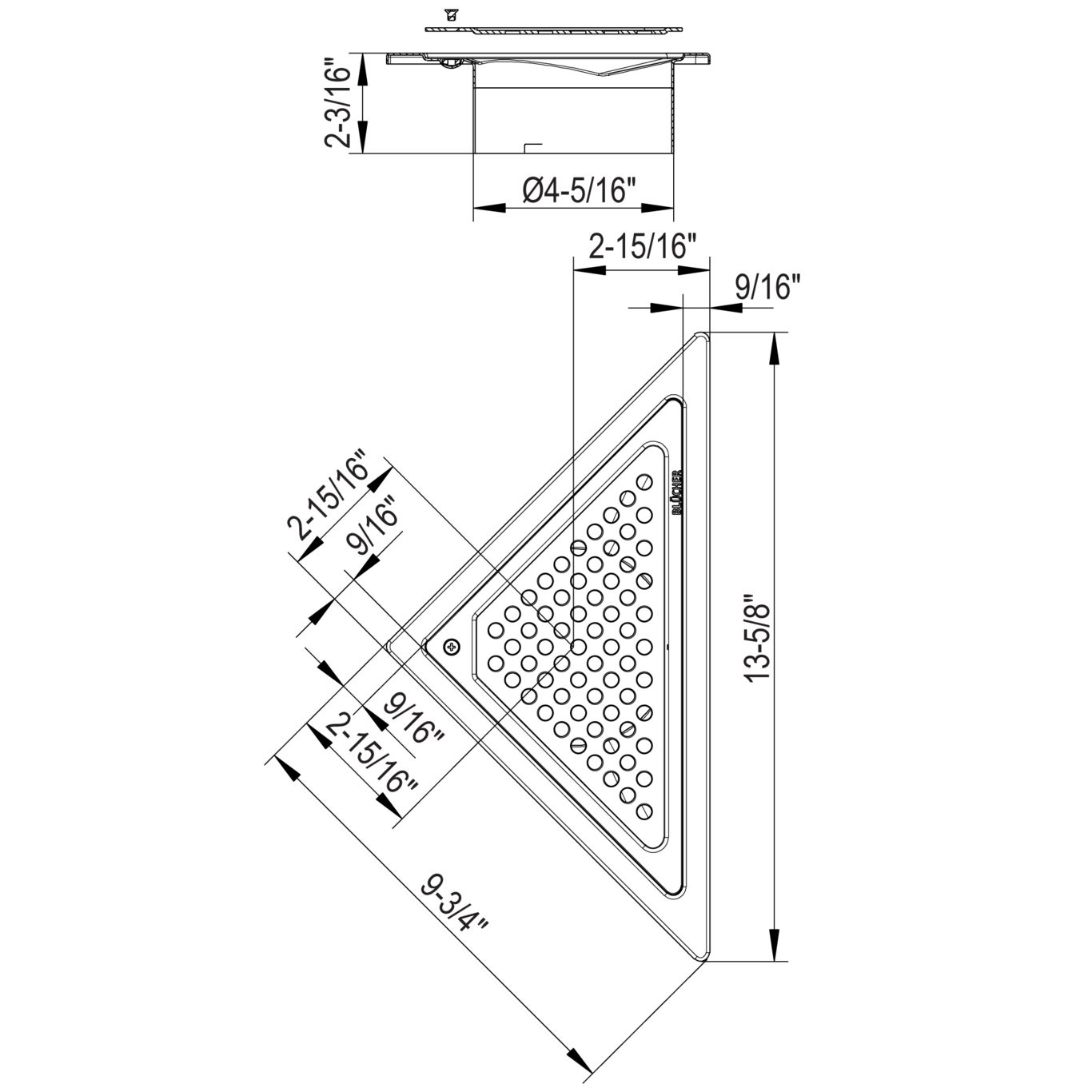

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Installation Free placing
Load Class EN1253 K3
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 55
Number of Screw Holes 1
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Triangular
Weight (kg) 0.63
Weight (lbs) 1.39
