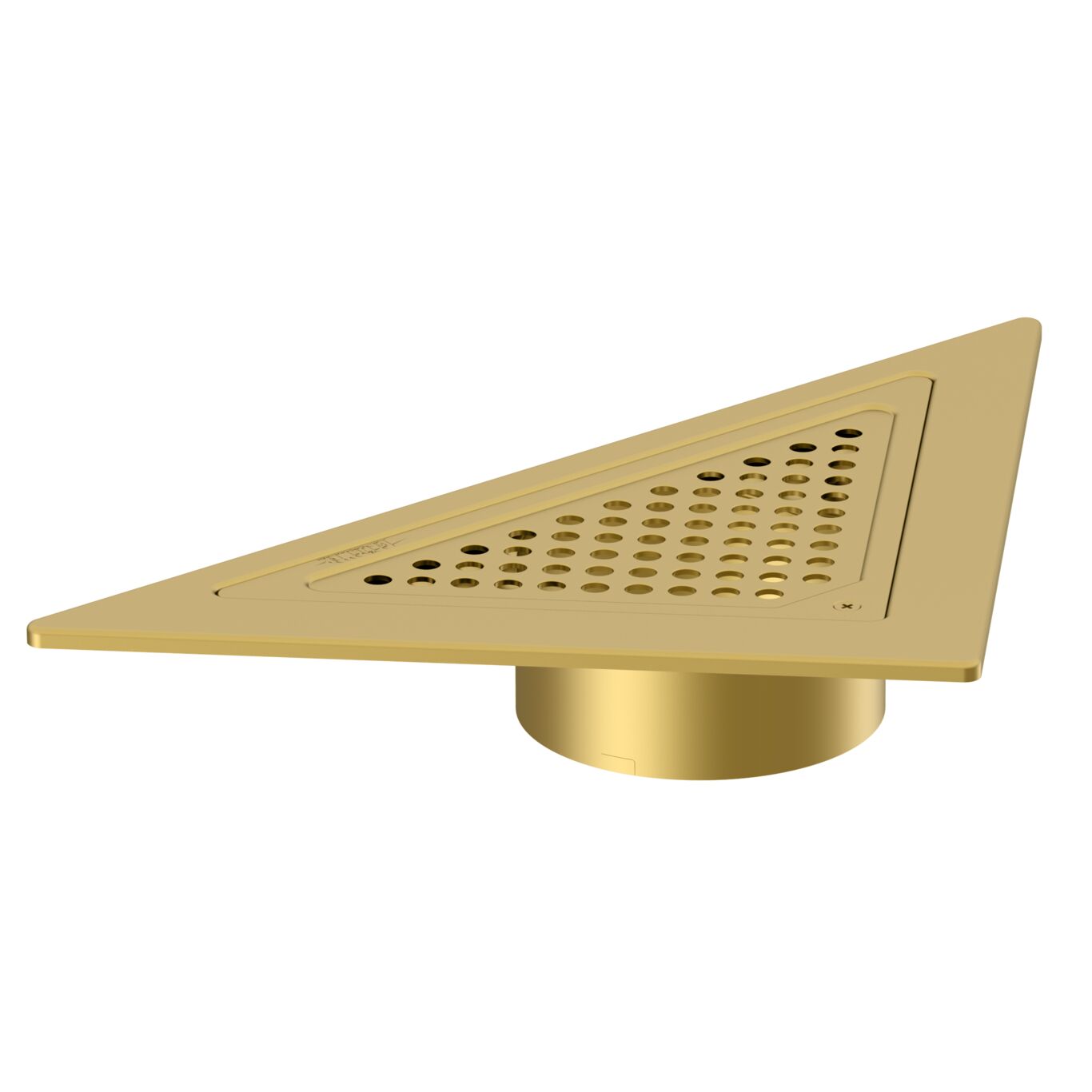

UPPER PART TRIO - (110.360.000 M)

Part Of the Series: Upper part-No membrane-Triangular

Type no.: 110.360.000 M

EAN no.: 5705499139198

VVS no.: 153308511


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Installation Corner
Load Class EN1253 K3
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 55
Number of Screw Holes 1
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Triangular
Weight (kg) 0.7
Weight (lbs) 1.54
