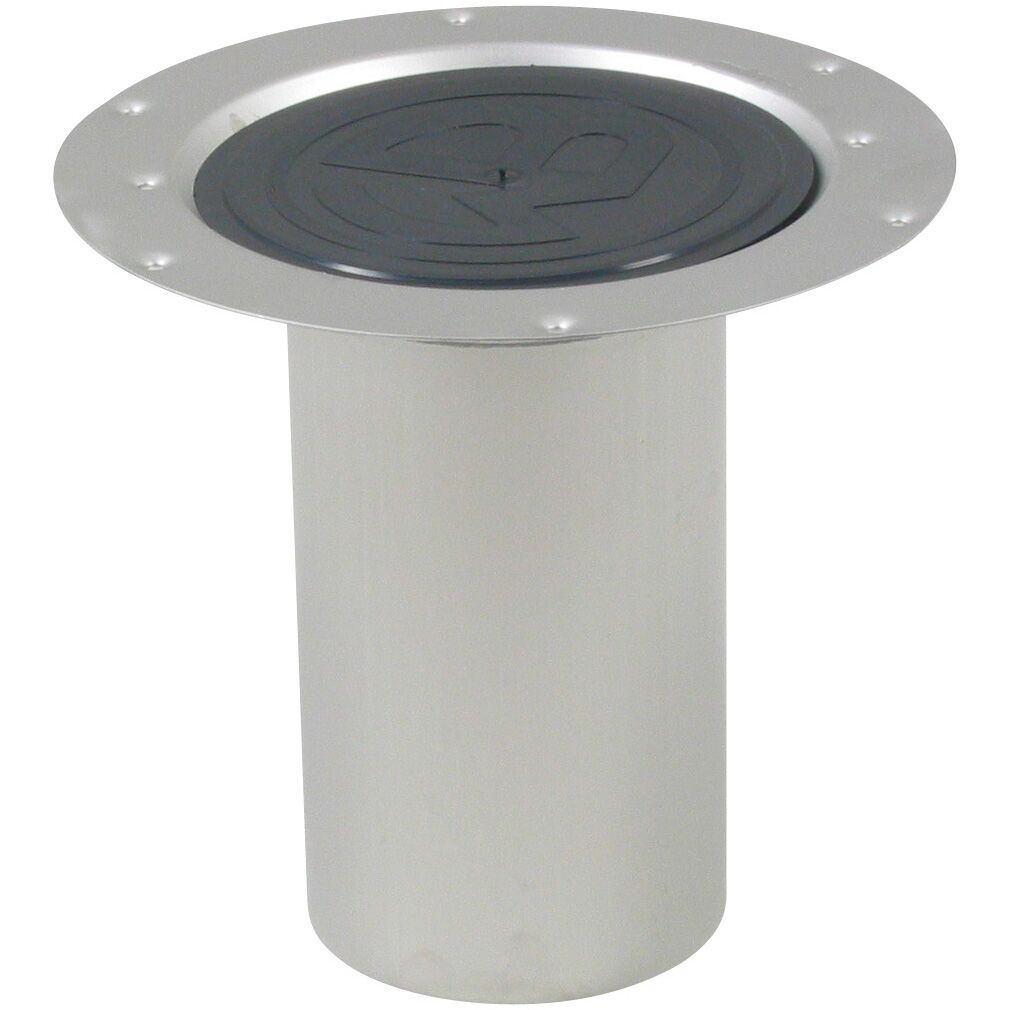

UPPER PART CIRCLE, LONG - (210.300.001)

Part Of the Series: Upper part-Vinyl-155

Type no.: 210.300.001

EAN no.: 5705499117981

VVS no.: 153614740

LVI no.: 3303889

Size: Ø155


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 209
Number of Screw Holes 3
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Round
Size (mm) Ø155
Size of Frame (Inch) Ø6-1/8
Weight (kg) 0.81
Weight (lbs) 1.79
