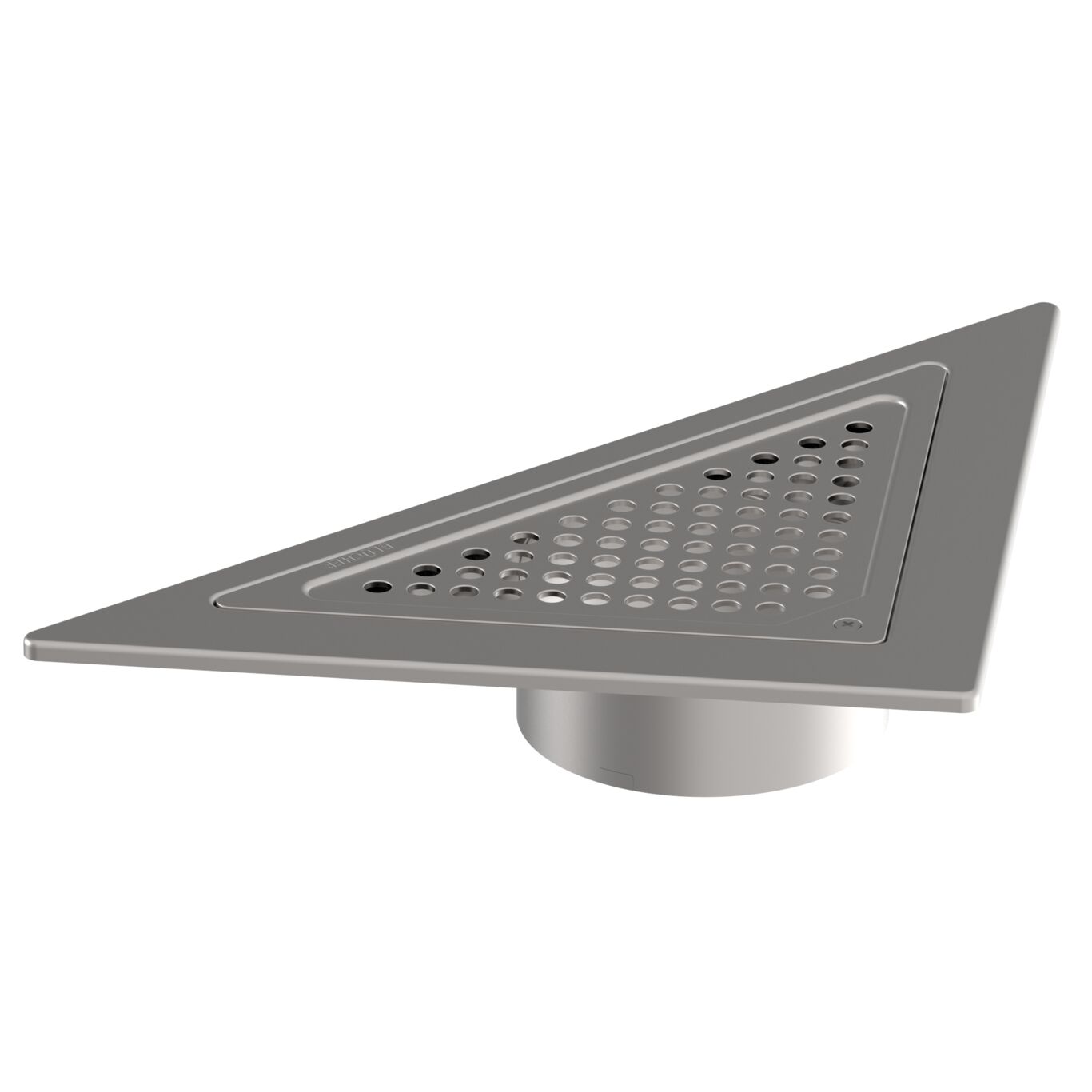

UPPER PART TRIO - (110.360.000)
×
![]()
Part Of the Series: Upper part-No membrane-Triangular
Type no.: 110.360.000
EAN no.: 5705499138030
VVS no.: 153308310
UPPER PART TRIO
-No supporting ring, for installation in corner
-Floor: concrete and tiled
-Frame: triangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Installation | Corner |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 55 |
| Number of Screw Holes | 1 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Triangular |
| Weight (kg) | 0.7 |
| Weight (lbs) | 1.54 |
