UPPER PART - (710.602.000)

Part Of the Series: Upper part-Vinyl-232

Type no.: 710.602.000

EAN no.: 5705499108408

NRF no.: 3396301

LVI no.: 3303817

Size: Ø232

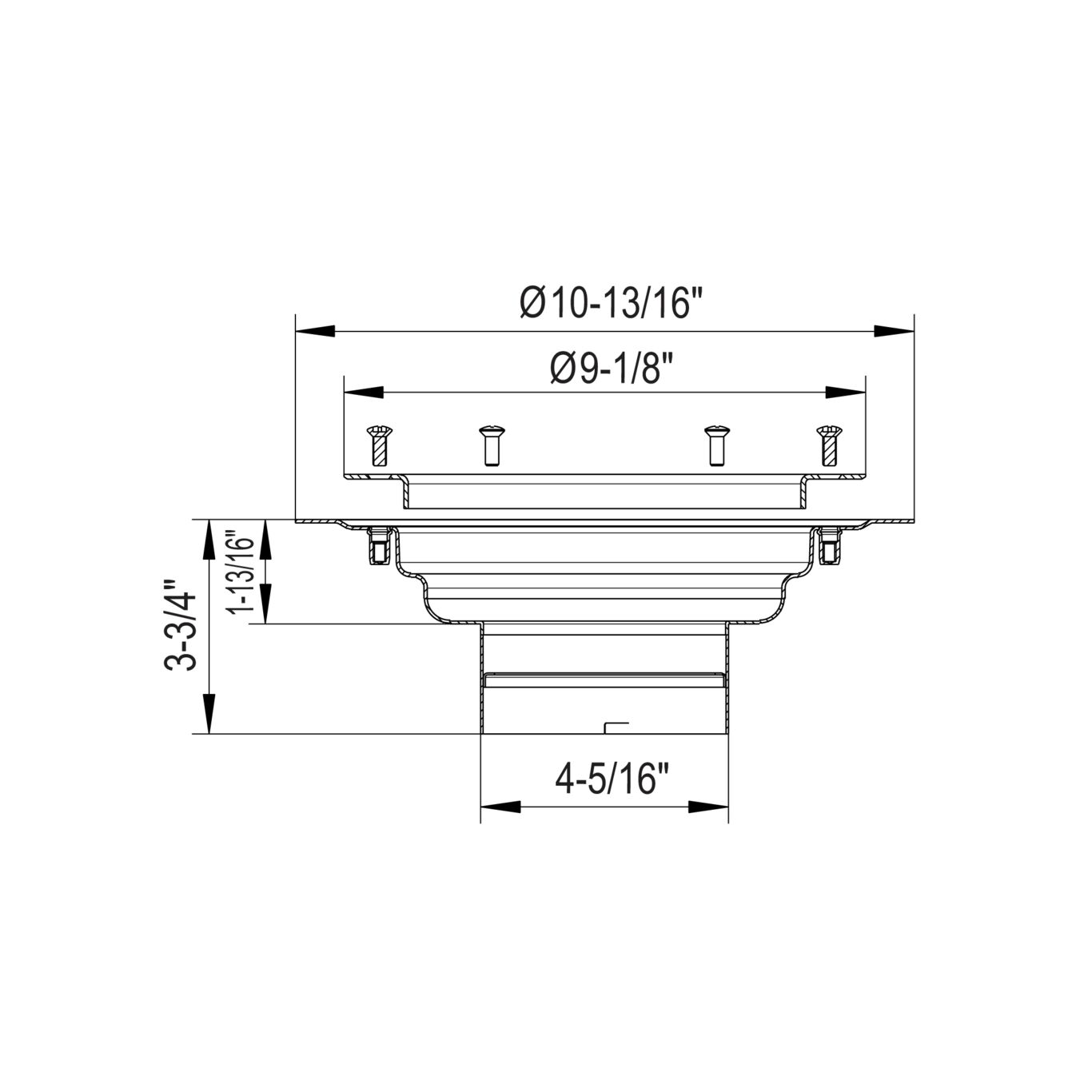

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 95
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Shape Round
Size (mm) Ø232
Size of Frame (Inch) Ø9-1/8
Weight (kg) 1.39
Weight (lbs) 3.06
