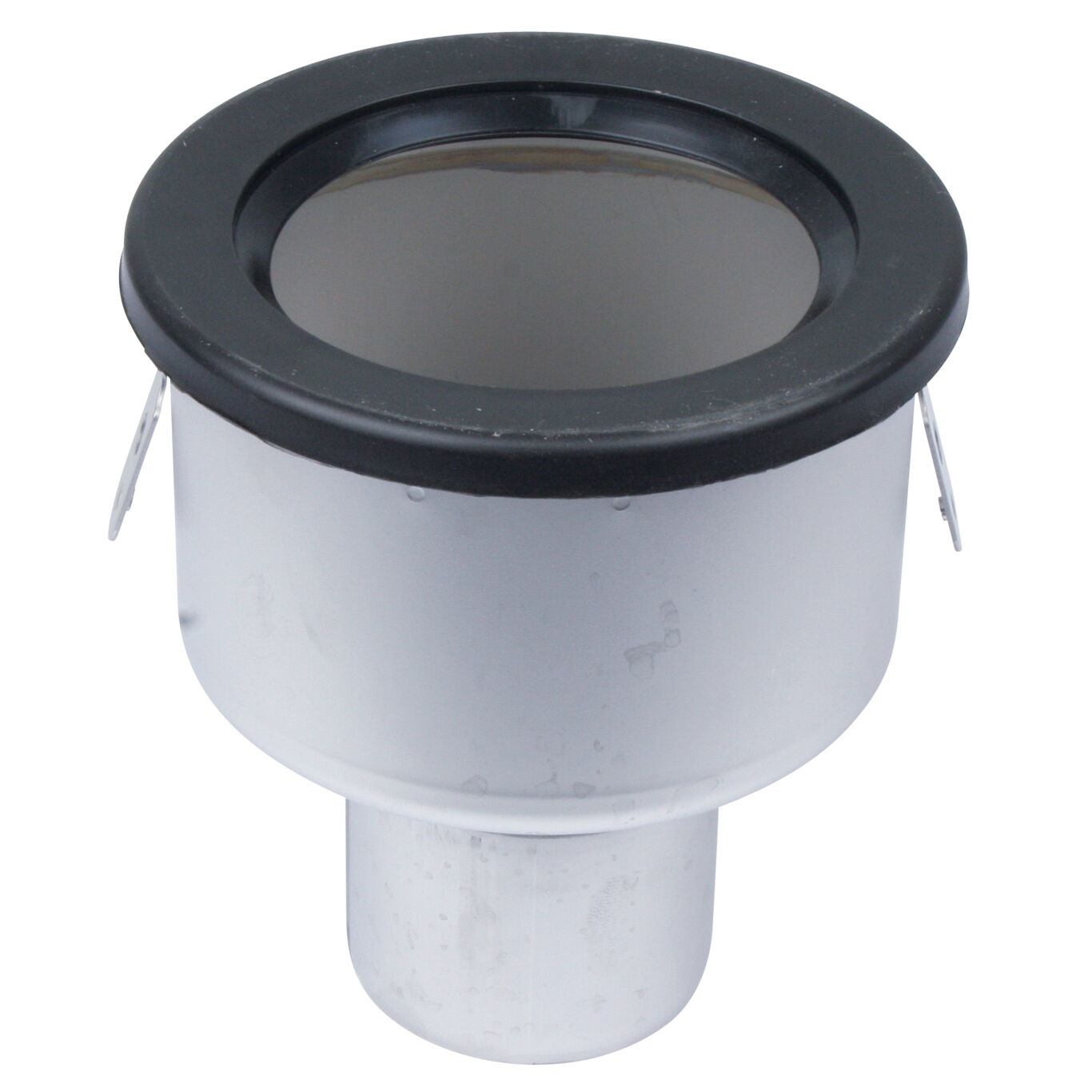

LOWER PART - (150.000.075)

Part Of the Series: Lower part-110

Type no.: 150.000.075

EAN no.: 5705499107074

RSK no.: 7121868

NRF no.: 3396322

LVI no.: 3303753


Download CAD Collections

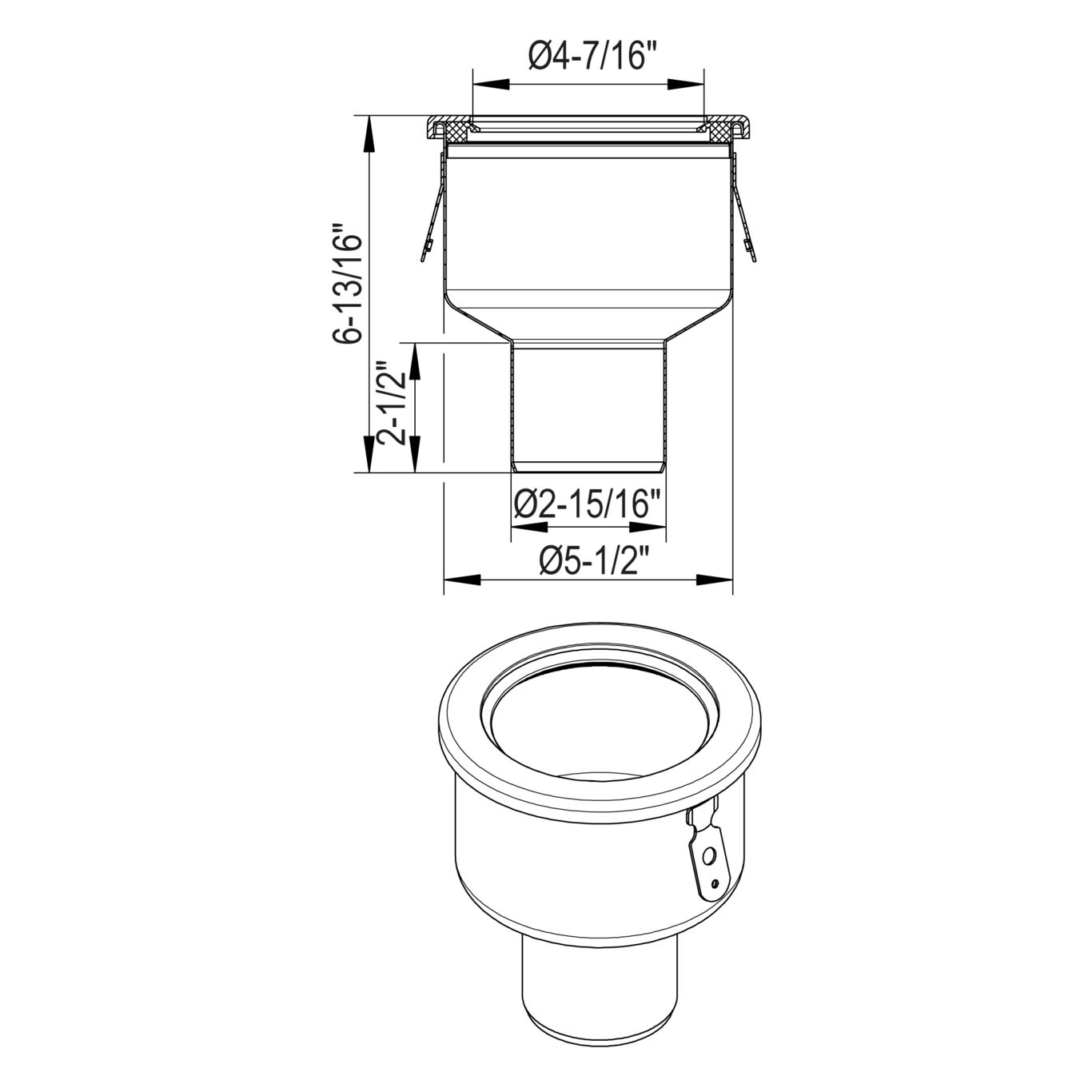

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic / Industrial
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 173
Number of Inlets 0
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Vertical
Weight (kg) 0.94
Weight (lbs) 2.07

Flange
