UPPER PART CIRCLE - (250.300.002)
×
![]()
Part Of the Series: Upper part-Vinyl-155
Type no.: 250.300.002
EAN no.: 5705499135459
Size: Ø155

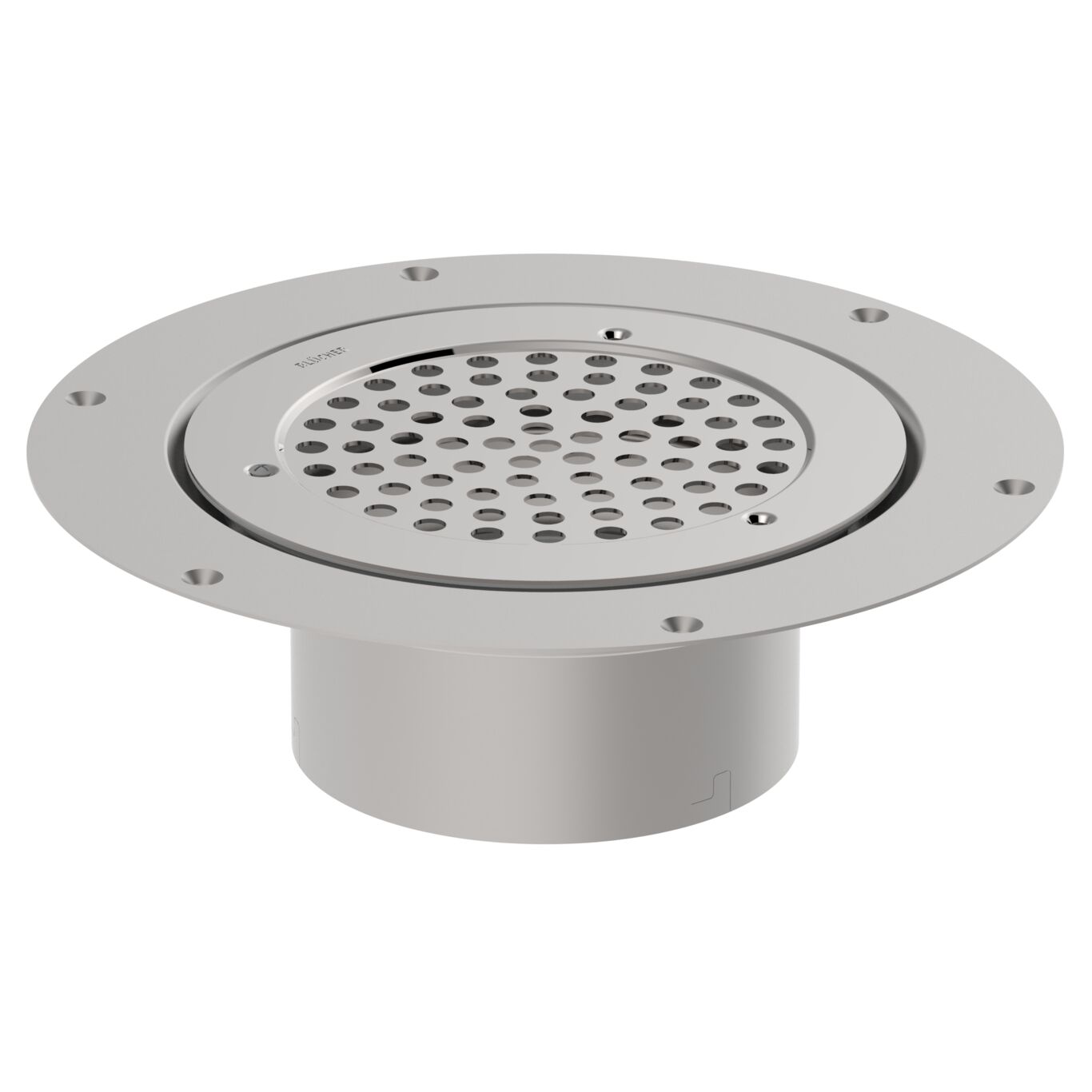

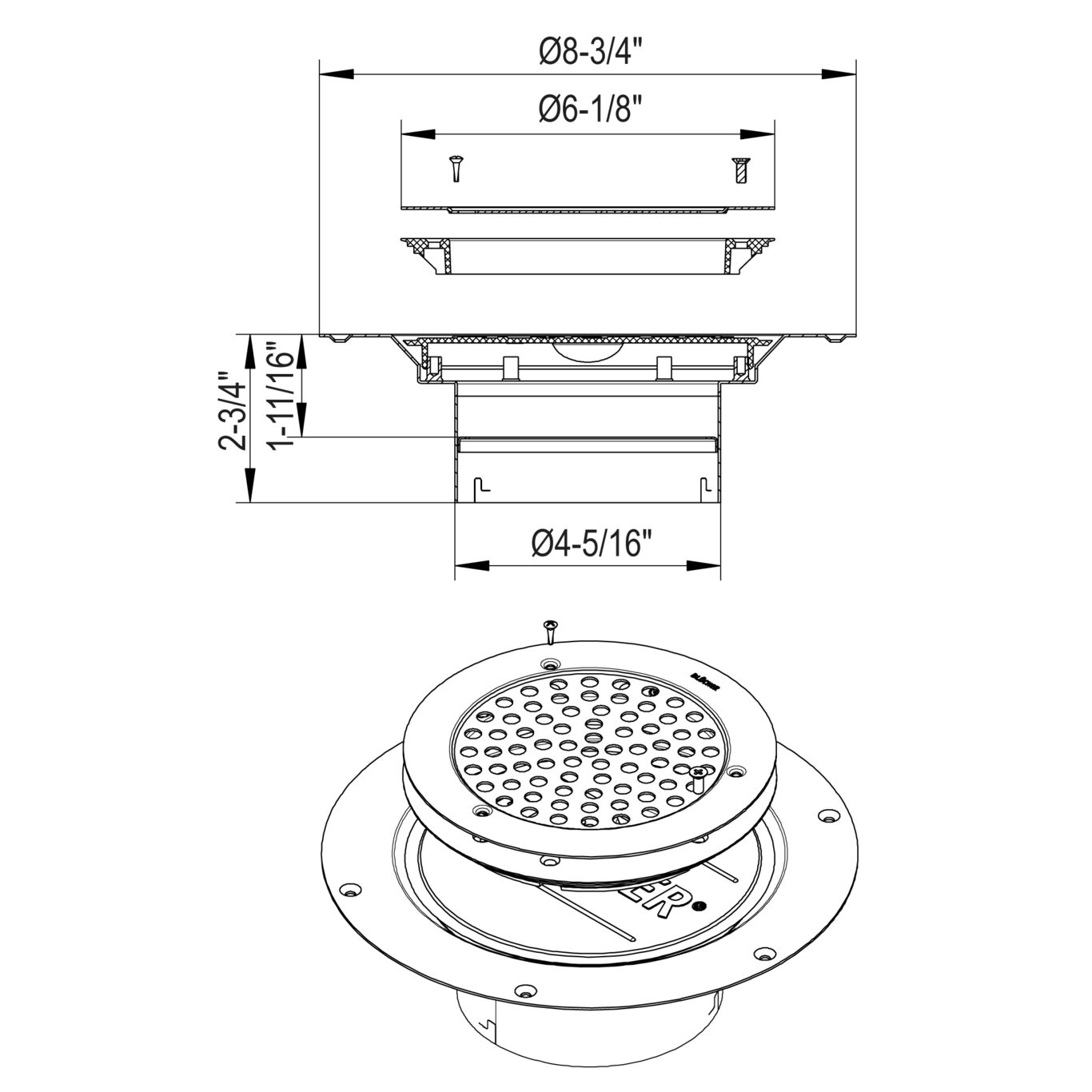

UPPER PART CIRCLE
-With supporting ring for water trap
-Floor: vinyl
-Grating: Ø6-1/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 70 |
| Number of Screw Holes | 3 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 1 |
| Weight (lbs) | 2.2 |
-
Approval Information
For approval information, please refer to the below approval certificates.
