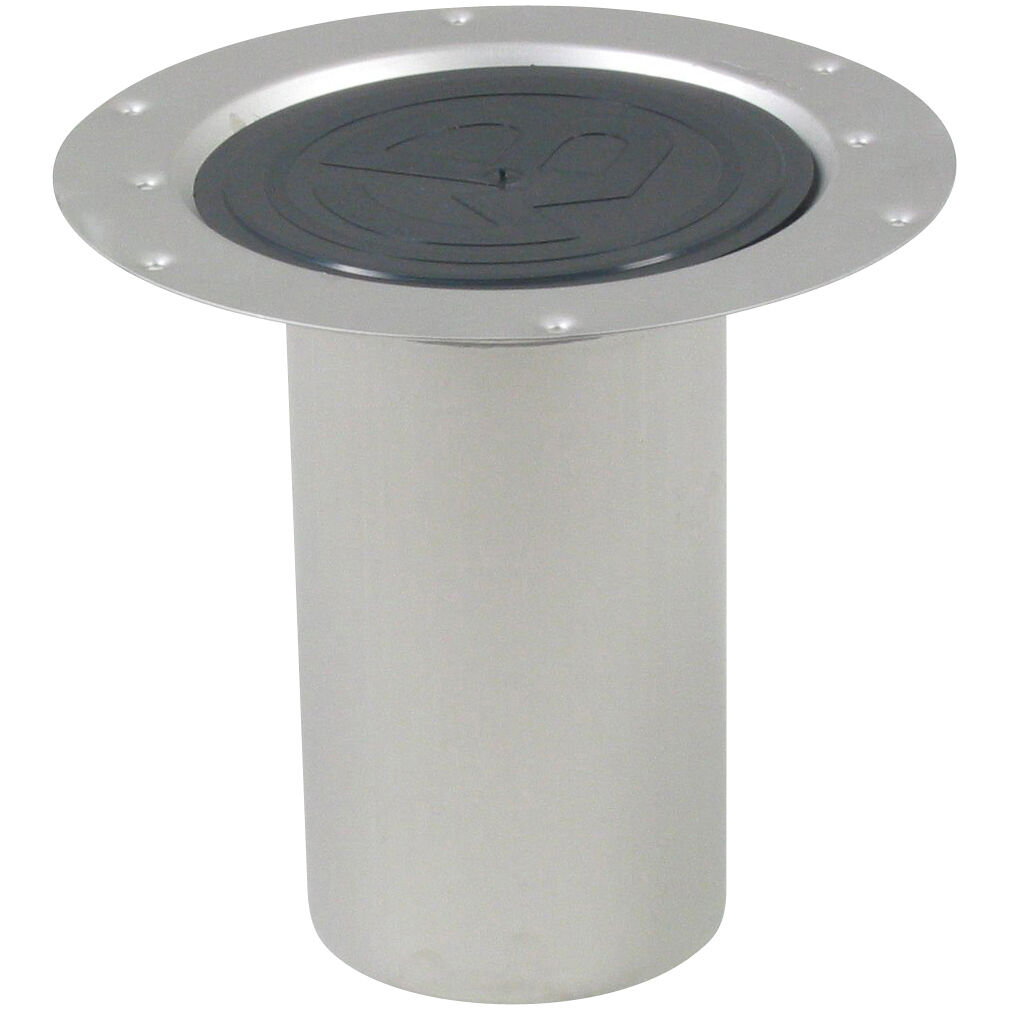

UPPER PART CIRCLE, LONG - (250.300.001)
×
![]()
Part Of the Series: Upper part-Vinyl-155
Type no.: 250.300.001
EAN no.: 5705499118001
VVS no.: 153612740
RSK no.: 7122076
LVI no.: 3303890
Size: Ø155
UPPER PART CIRCLE, LONG
-With supporting ring for water trap
-Floor: vinyl
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 209 |
| Number of Screw Holes | 3 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 0.81 |
| Weight (lbs) | 1.79 |
-
Approval Information
For approval information, please refer to the below approval certificates.
