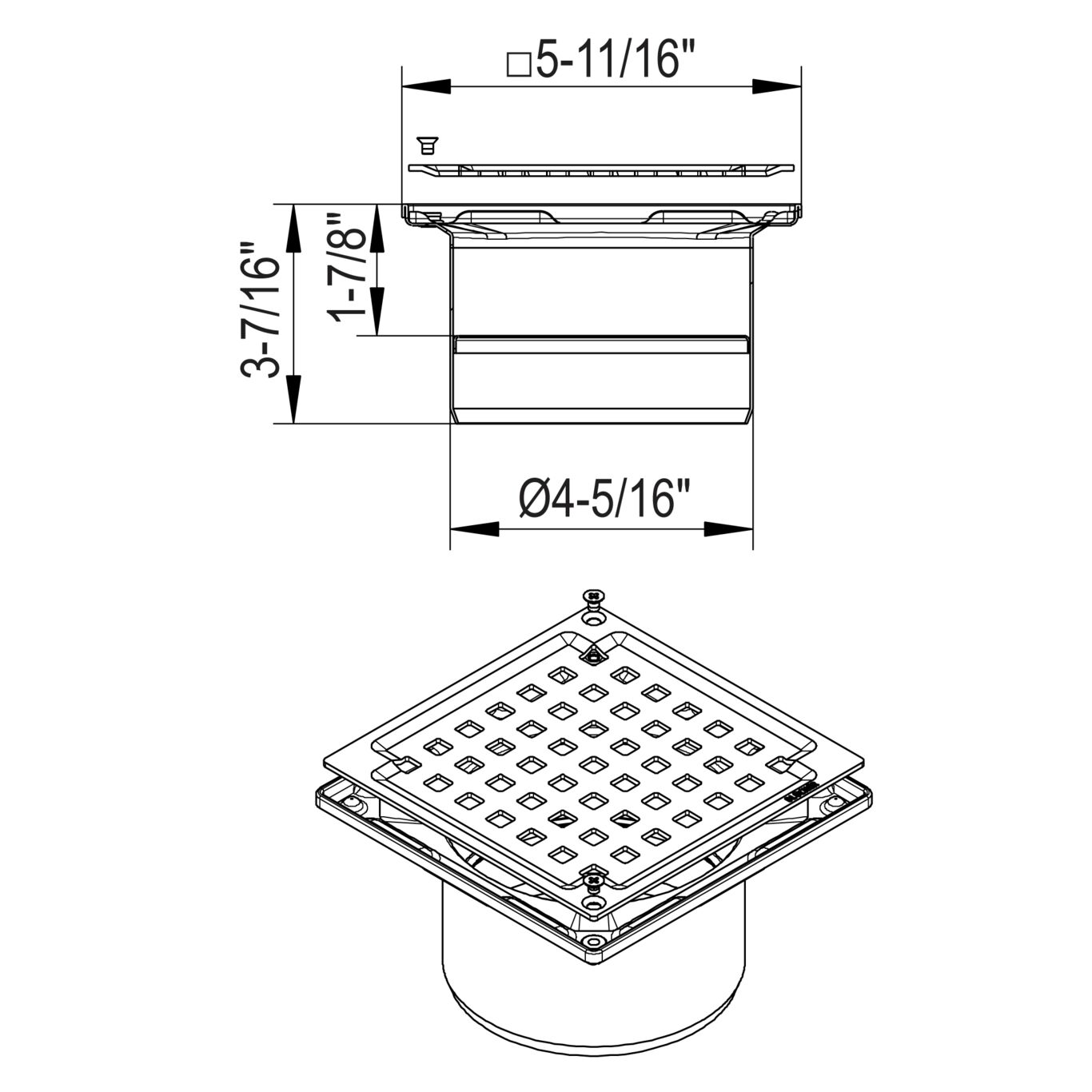

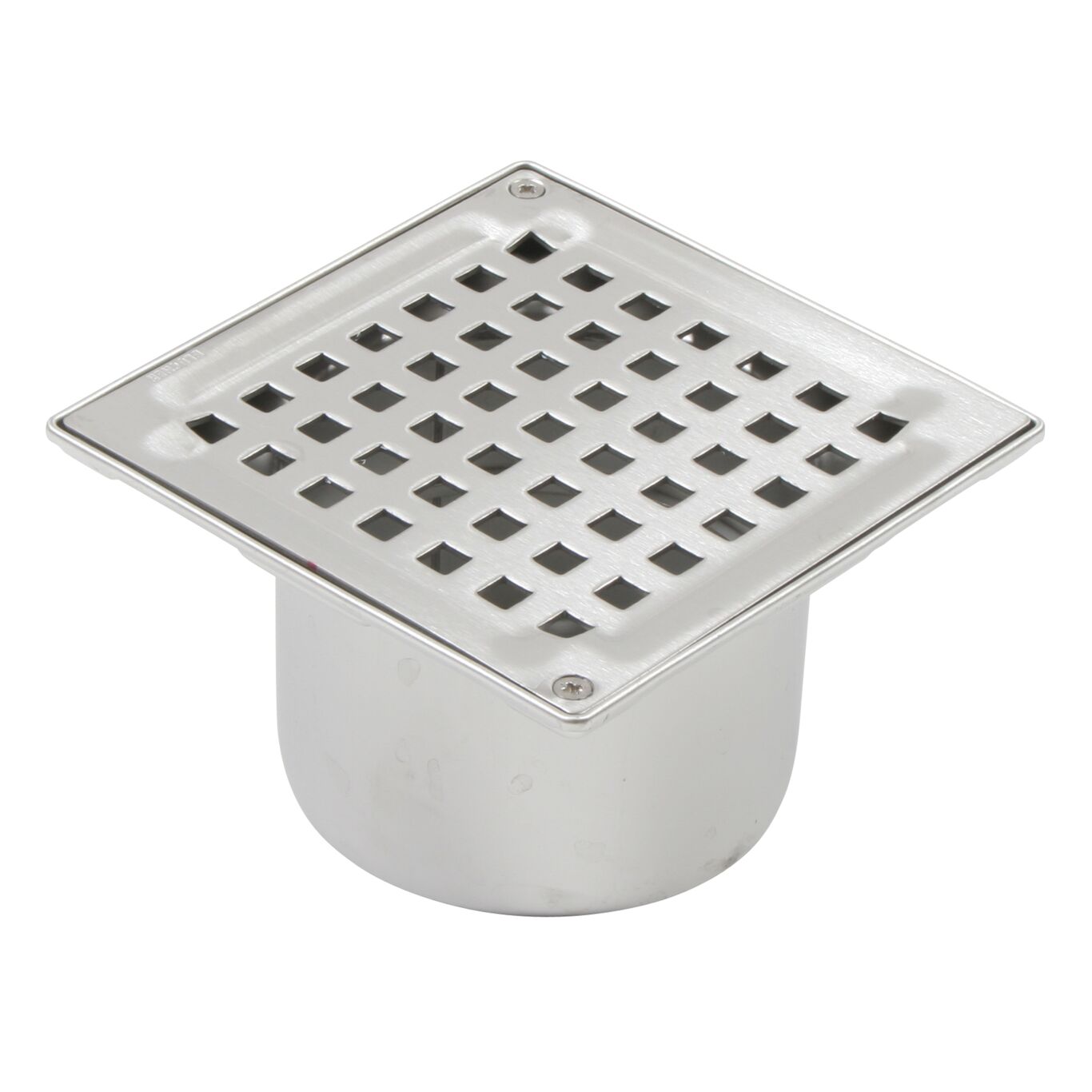

UPPER PART SQUARE - (312.300.000)
×
![]()
Part Of the Series: Upper part-No membrane-145
Type no.: 312.300.000
EAN no.: 5705499106930
Size: 145x145
UPPER PART SQUARE
-With supporting ring for water trap
-Floor: concrete and tiled
-Frame: 5-3/4 x 5-3/4 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Square |
| Size (mm) | 145x145 |
| Size of Frame (Inch) | 5-3/4 x 5-3/4 |
| Weight (kg) | 0.5 |
| Weight (lbs) | 1.1 |
-
Approval Information
For approval information, please refer to the below approval certificates.
