UPPER PART TRIO - (150.380.000)
×
![]()
Part Of the Series: Upper part-No membrane-Triangular
Type no.: 150.380.000
EAN no.: 5705499120219
VVS no.: 153308210
NRF no.: 3395123

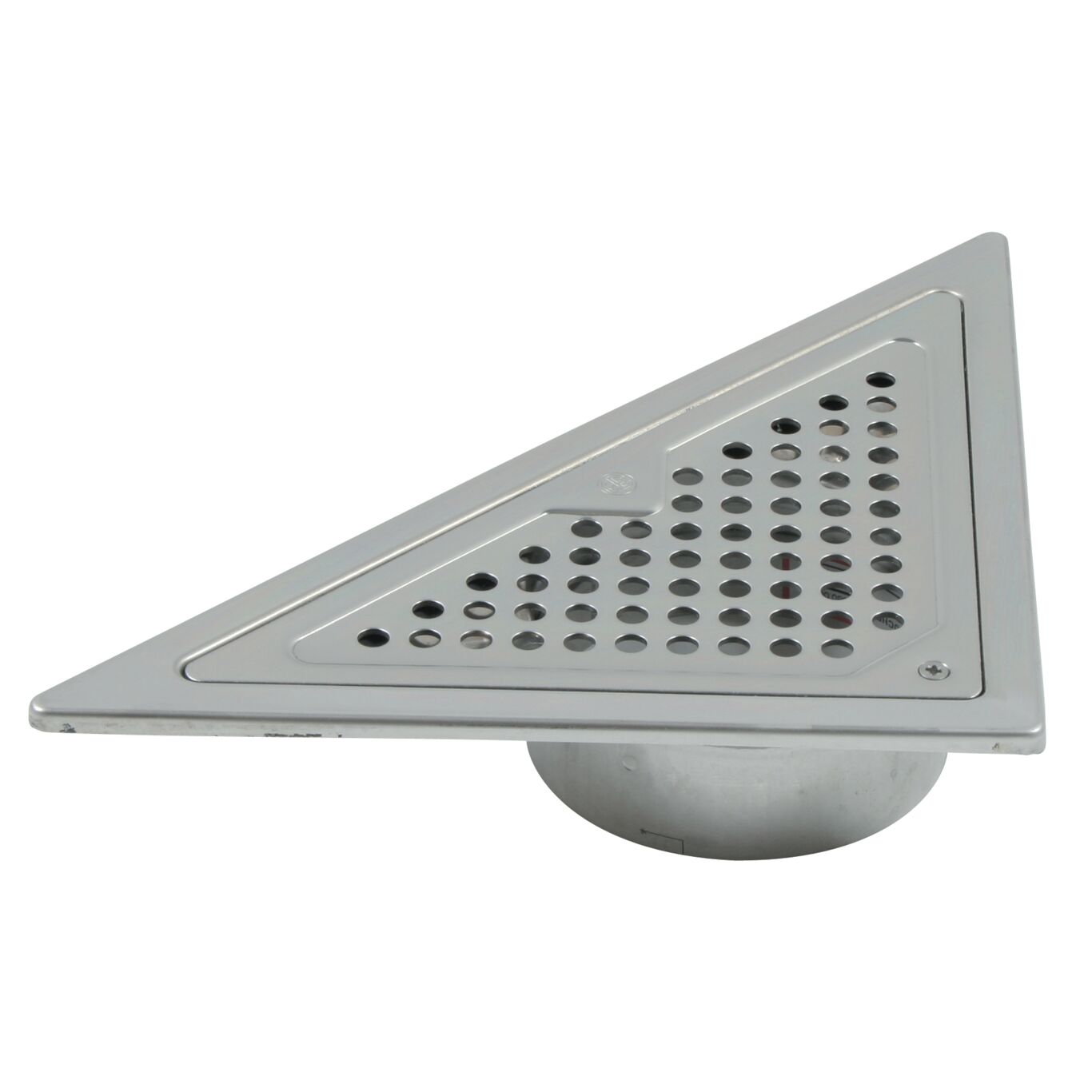

UPPER PART TRIO
-With supporting ring for water trap, free placing
-Floor: concrete and tiled
-Frame: triangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Installation | Free placing |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 55 |
| Number of Screw Holes | 1 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Triangular |
| Weight (kg) | 0.65 |
| Weight (lbs) | 1.43 |
-
Approval Information
For approval information, please refer to the below approval certificates.
