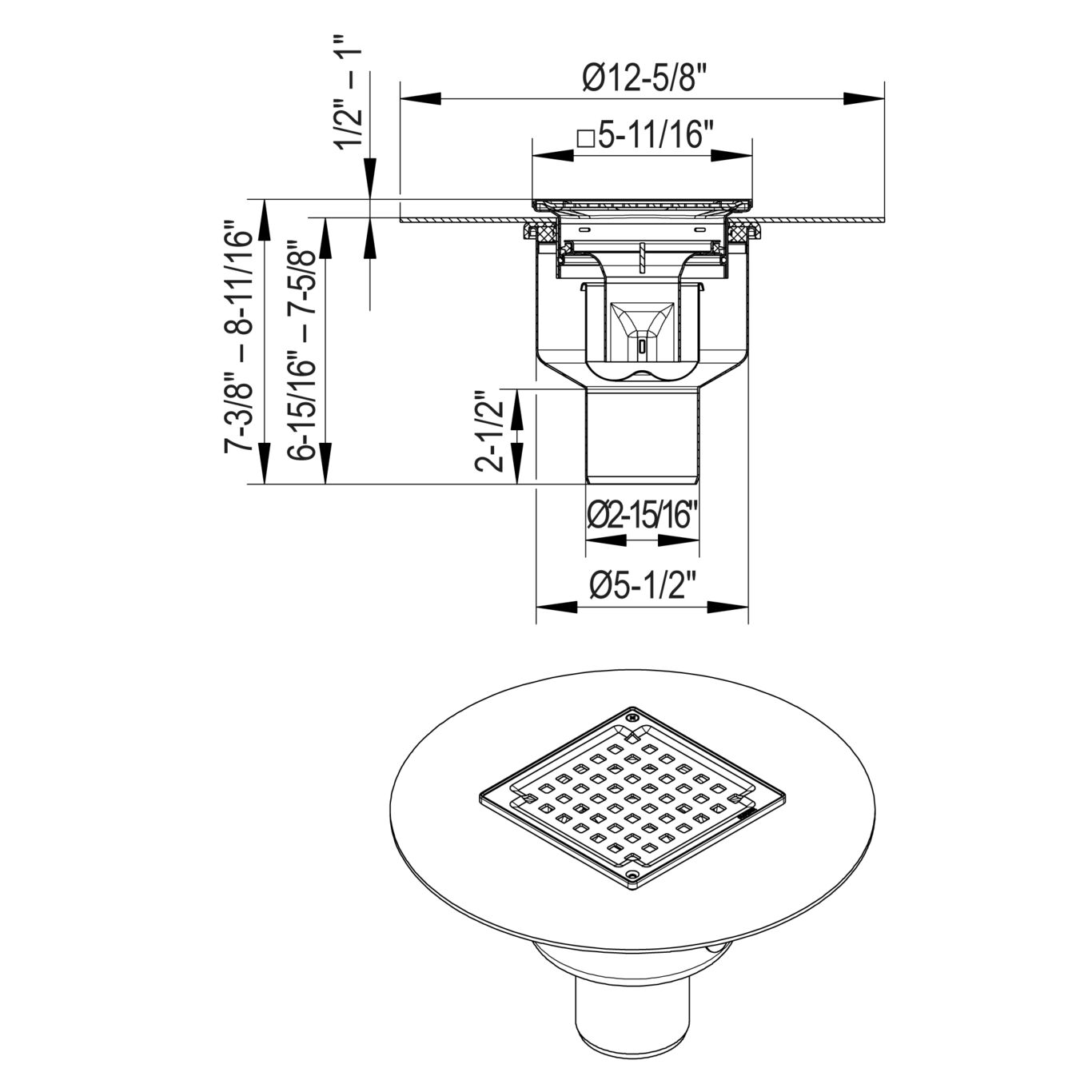

ADJUSTABLE SHOWER DRAIN SQUARE - (350.320.075 V)
×
![]()
Part Of the Series: Drain-Liquid membrane-145
Type no.: 350.320.075 V
EAN no.: 5705499127652
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-With removable water trap
-Floor: concrete and tiled
-Liquid membrane, frame: 5-3/4 x 5-3/4 inch
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 249 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 145x145 |
| Size of Frame (Inch) | 5-3/4 x 5-3/4 |
| Weight (kg) | 3.32 |
| Weight (lbs) | 7.32 |
-
Approval Information
For approval information, please refer to the below approval certificates.
