INDUSTRIAL DRAIN - (761.403.110)
×
![]()
Part Of the Series: Drain-Liquid membrane-300
Type no.: 761.403.110
EAN no.: 5705499109740
VVS no.: 153044316
RSK no.: 7123014
NRF no.: 3396377
LVI no.: 3303691
Size: 300x300

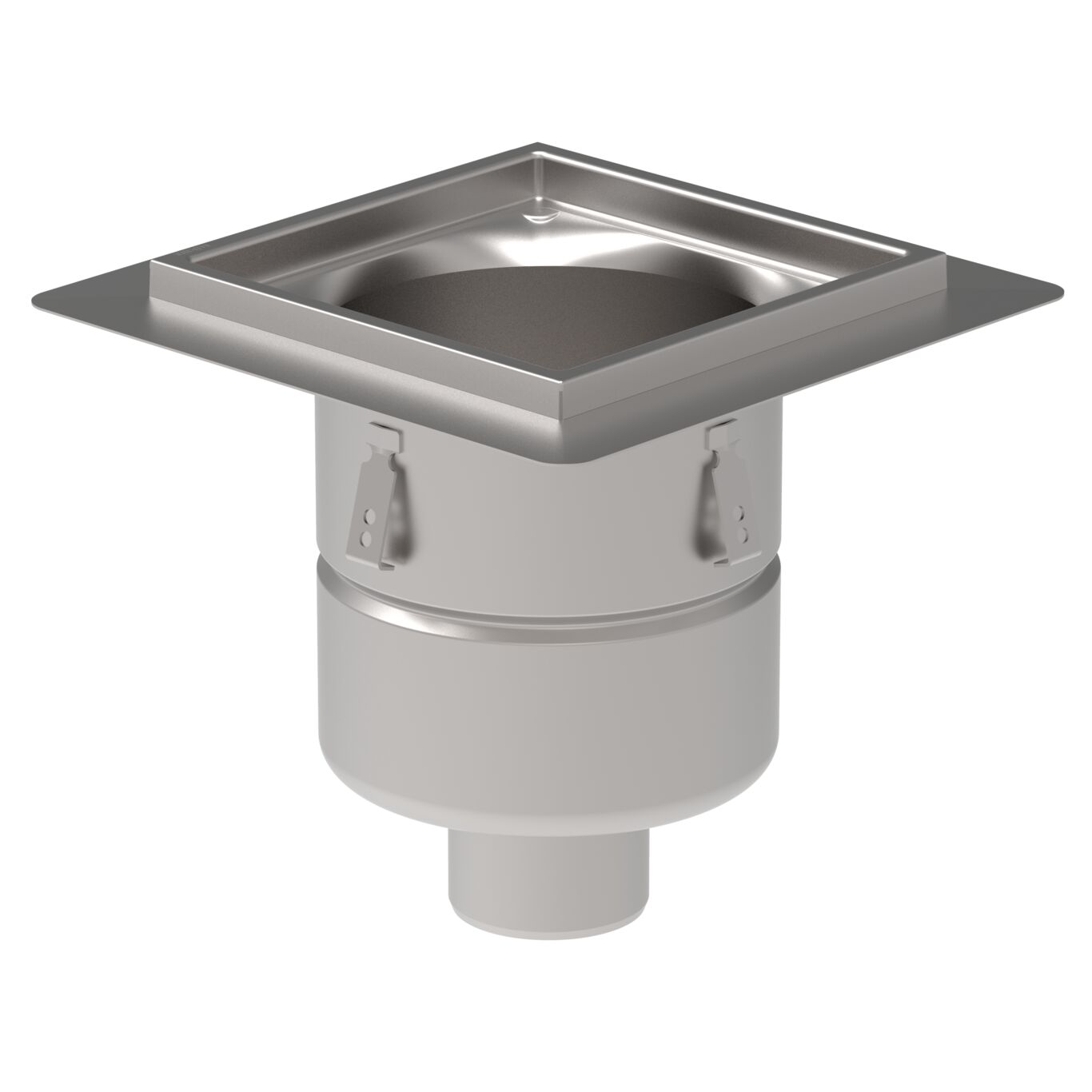

INDUSTRIAL DRAIN
-Floor: concrete and tiled
-Liquid membrane, frame: 300x300mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 300x300 |
| Size of Frame (Inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 9.81 |
| Weight (lbs) | 21.63 |
-
Approval Information
For approval information, please refer to the below approval certificates.
