INDUSTRIAL DRAIN - (763.403.110)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 763.403.110
EAN no.: 5705499109986
VVS no.: 153043316
RSK no.: 7121824
NRF no.: 3396093
LVI no.: 3303611
Size: 300x300

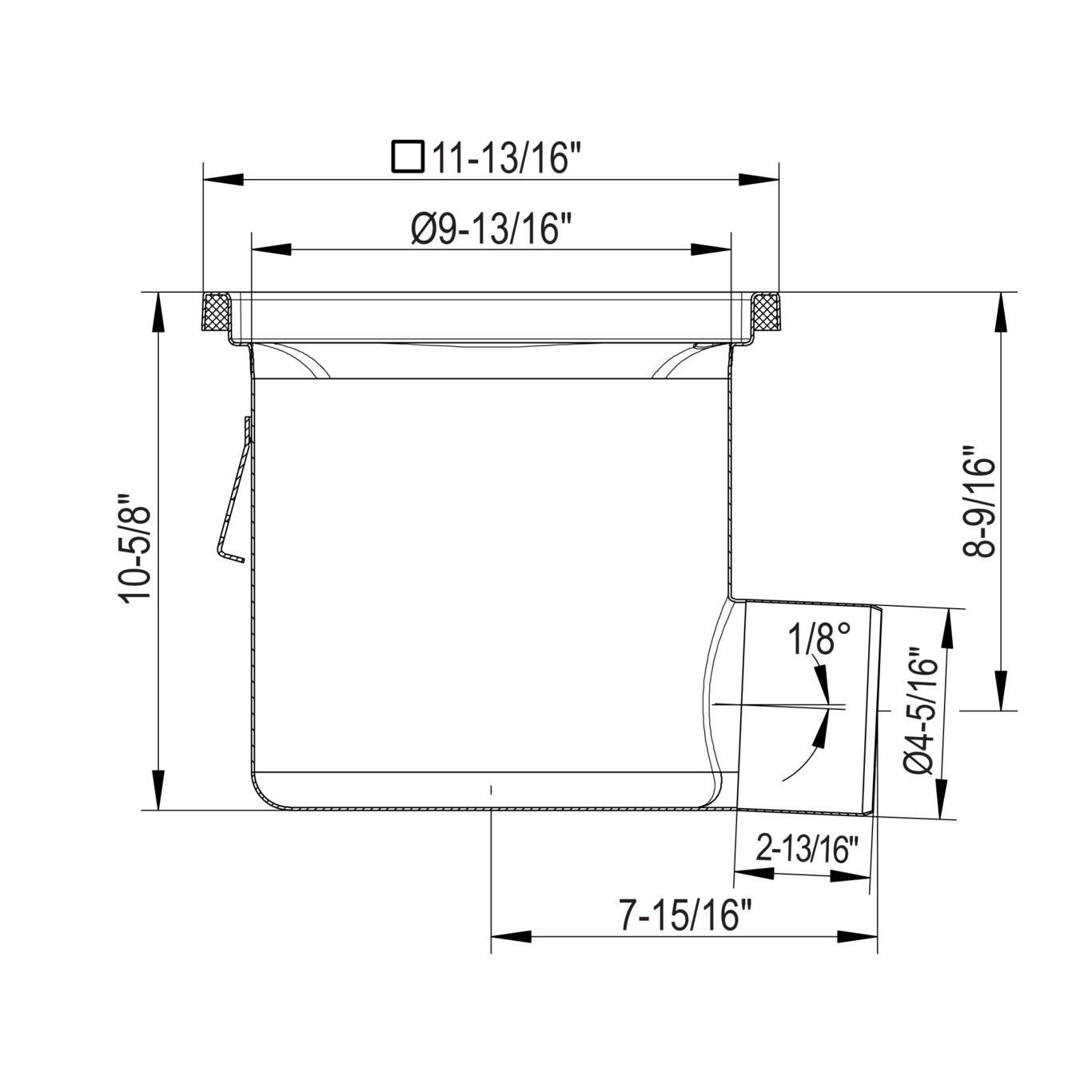

INDUSTRIAL DRAIN
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 300x300 |
| Size of Frame (Inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 5.15 |
| Weight (lbs) | 11.35 |
-
Approval Information
For approval information, please refer to the below approval certificates.
