BFD-570 Floor Drain

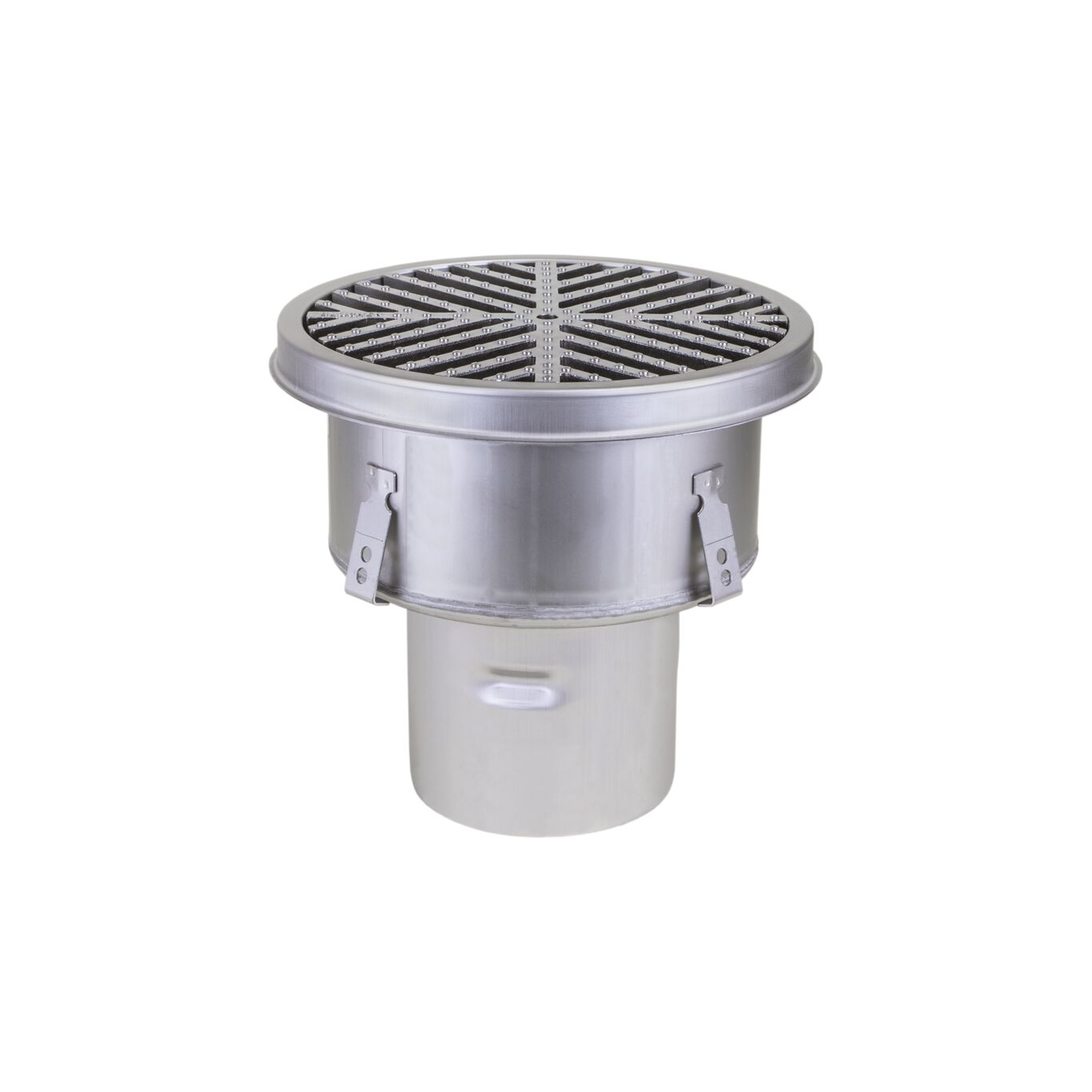

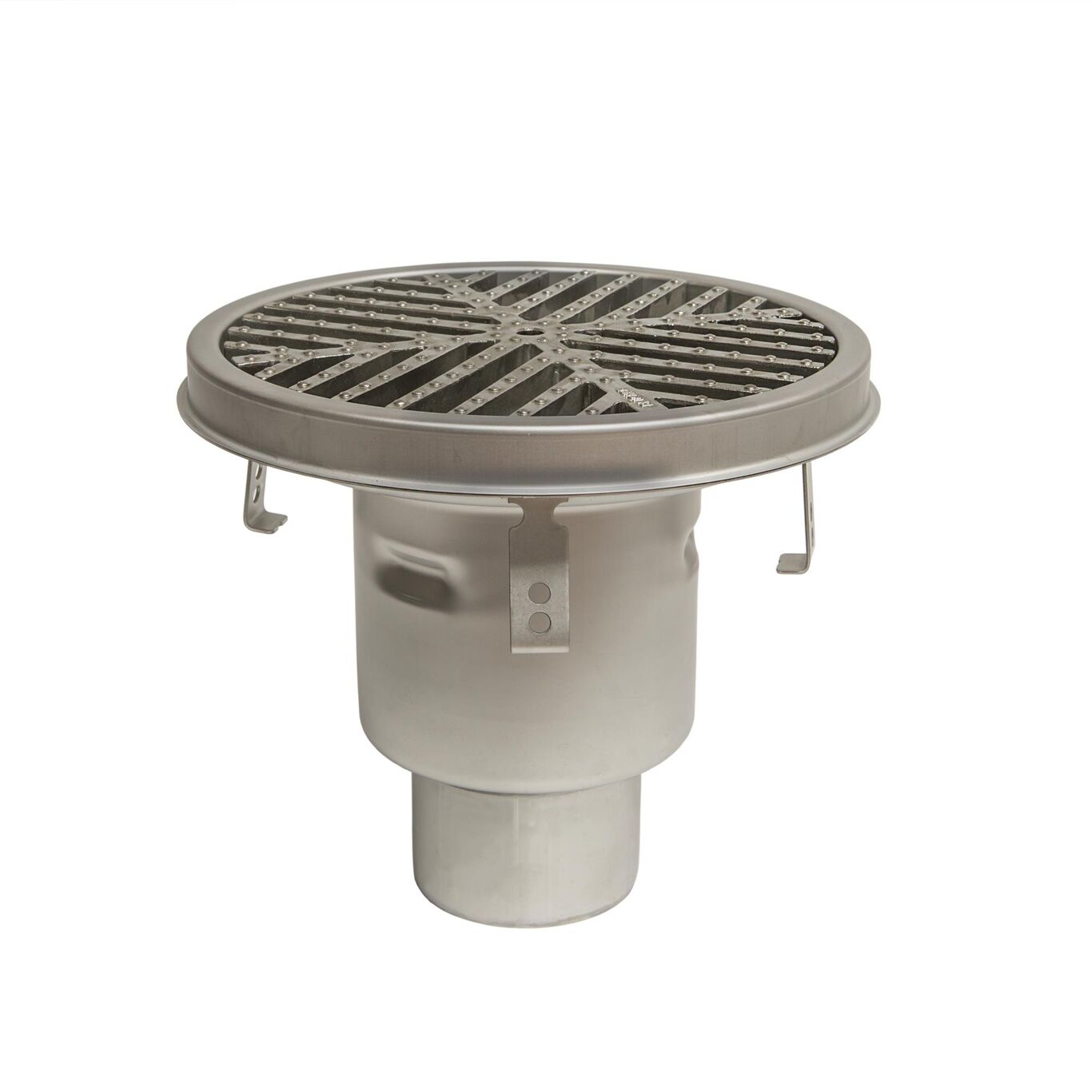

HygienicPro® BFD-570 AISI Type 304 stainless steel processing drain with smooth interior, 12in. (305mm) round top, AISI CF-8 cast grating, and bottom outlet (BO) or side outlet (SO). Model options include low (L), medium (M), and high (H) depths in 4" or 6" diameter outlet, Type 316L stainless steel (-316), and sediment bucket (-B).

Features

• Eliminates unsanitary water ponding with a sloped and radius design

• Provides durable and chemical-resistant solution for heavily cleaned areas

• Maintains sanitary surface with high-quality stainless-steel construction

• Reduces installation time with patented epoxy infill and provided construction cover

US Order # / Description

BFD-574L / 12"(305) Round Top – 4"(110) Pipe – BO – 11"(277) H

BFD-574M / 12"(305) Round Top – 4"(110) Pipe – BO – 15"(378) H

BFD-574H / 12"(305) Round Top – 4"(110) Pipe – BO – 18"(455) H

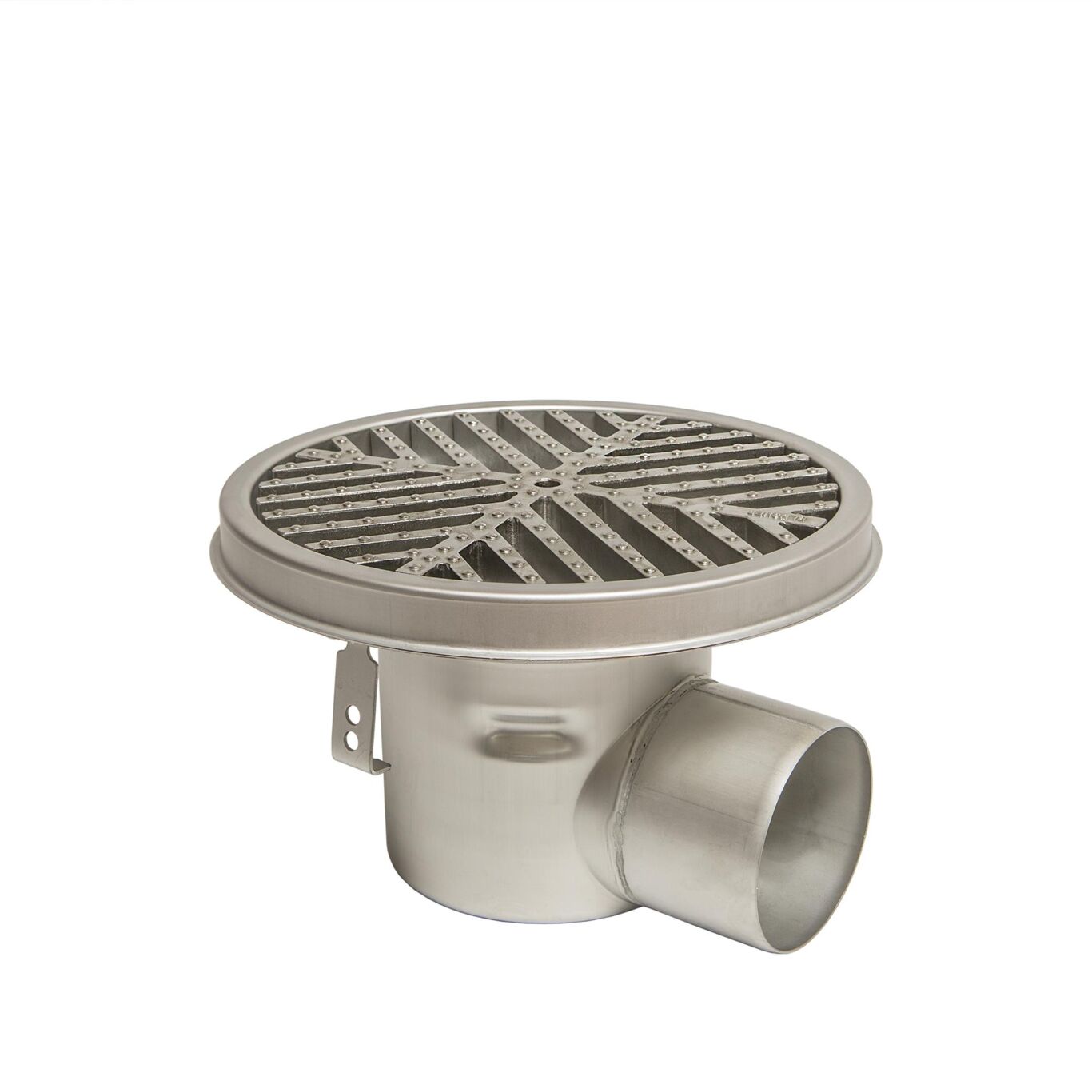

BFD-574L-SO / 12"(305) Round Top - 4"(110) Pipe - SO - 8"(198) H

BFD-574M-SO /12"(305) Round Top - 4"(110) Pipe - SO- 12"(299) H

BFD-574H-SO / 12"(305) Round Top - 4"(110) Pipe - SO - 15"(376) H

BFD-576L / 12"(305) Round Top - 6"(160) Pipe - BO - 8"(202) H

BFD-576M / 12"(305) Round Top - 6"(160) Pipe - BO - 12"(303) H

BFD-576H / 12"(305) Round Top - 6"(160) Pipe - BO - 15"(380) H
