LOWER PART MARINE - (480.200.110 S)
Part Of the Series: Marine-lower part-bimetal flange-aluminium
Type no.: 480.200.110 S
EAN no.: 5705499121889
NRF no.: 3397049

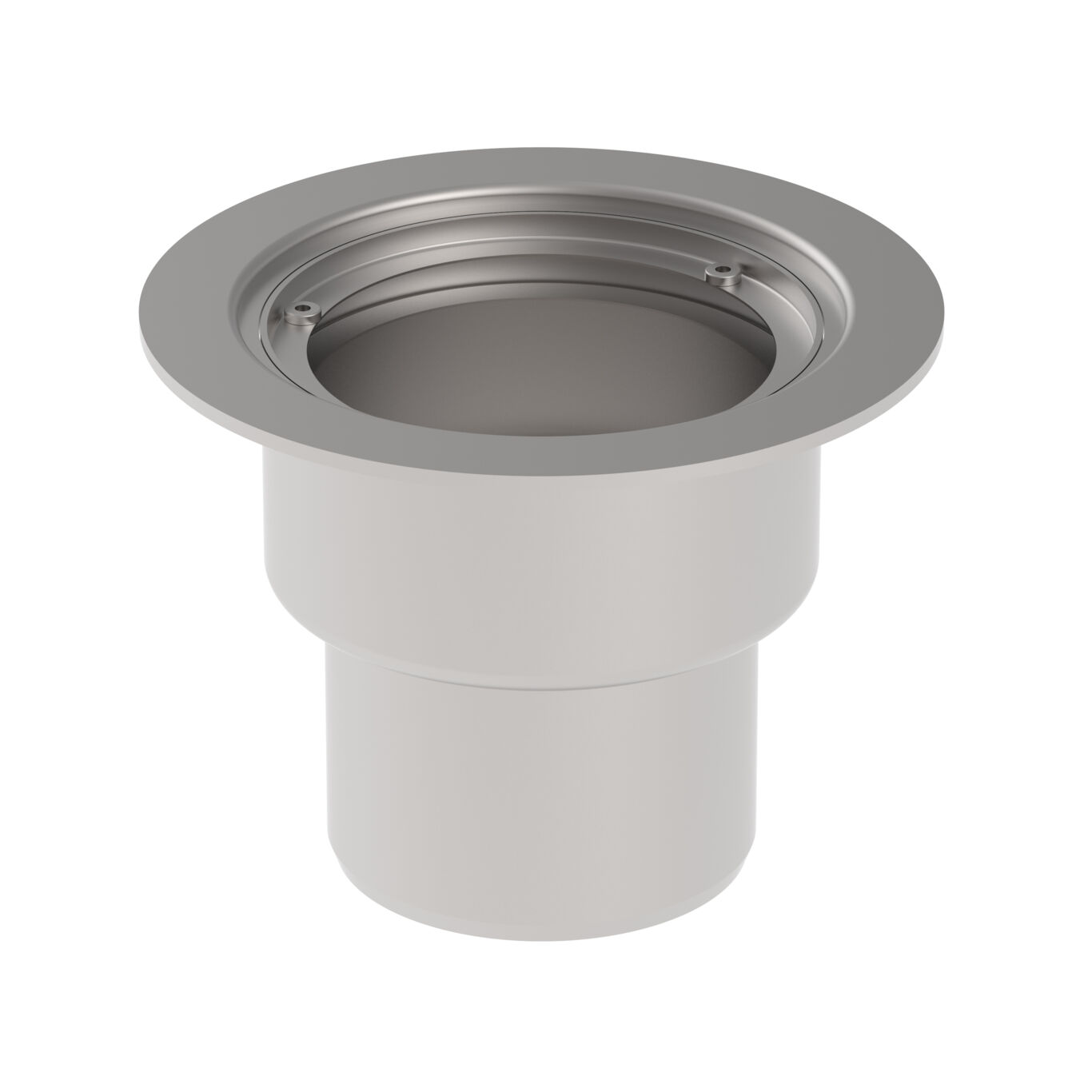

LOWER PART MARINE
-With Bimetal flange
-Deck: aluminium
-Flange: Ø8 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Aluminium |
EC/MED (Deck) | A0-A60 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 151 |
Number of Inlets | 0 |
Outlet dia. (mm) | 110 |
Outlet Diameter (Inch) | 4 |
Outlet Direction | Vertical |
Weight (kg) | 1.5 |
Weight (lbs) | 3.31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
