UPPER PART MARINE - (472.320.110 S)
×
![]()
Part Of the Series: Marine-upper part-180
Type no.: 472.320.110 S
EAN no.: 5705499118537
NRF no.: 3397034
Size: Ø180

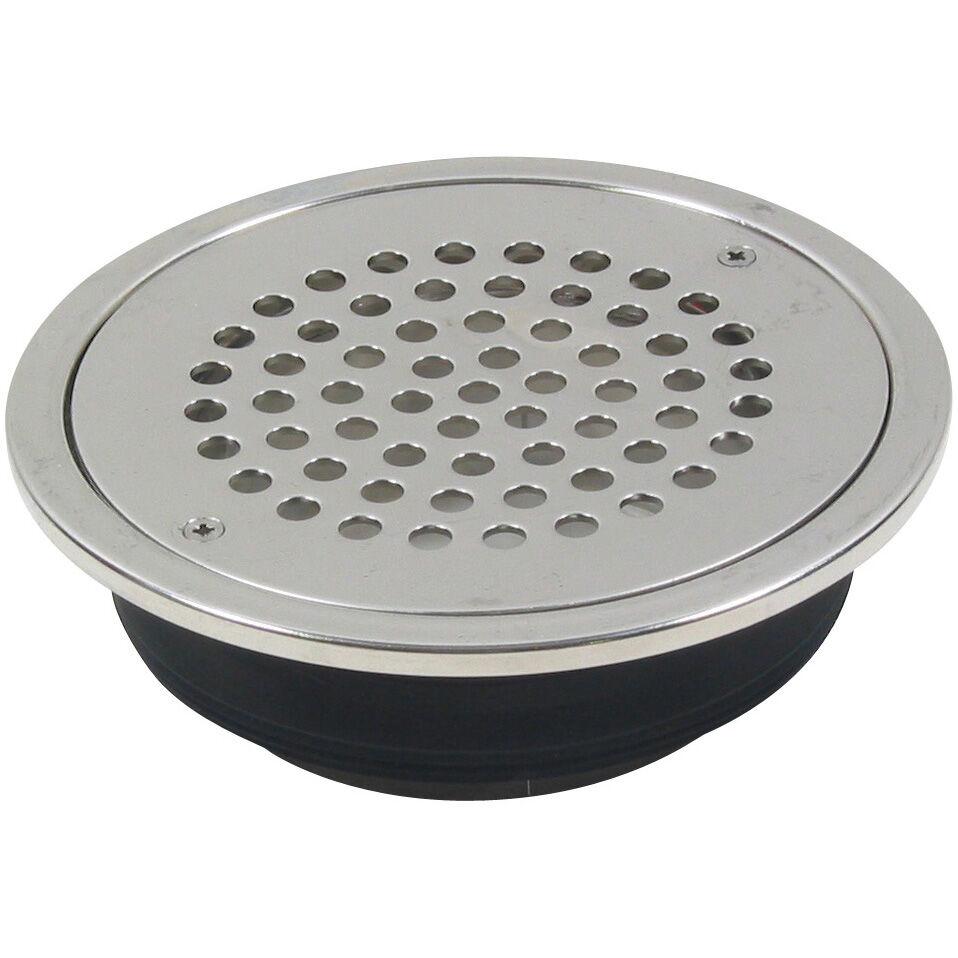

UPPER PART MARINE
-With supporting ring for water trap
-Floor: resin

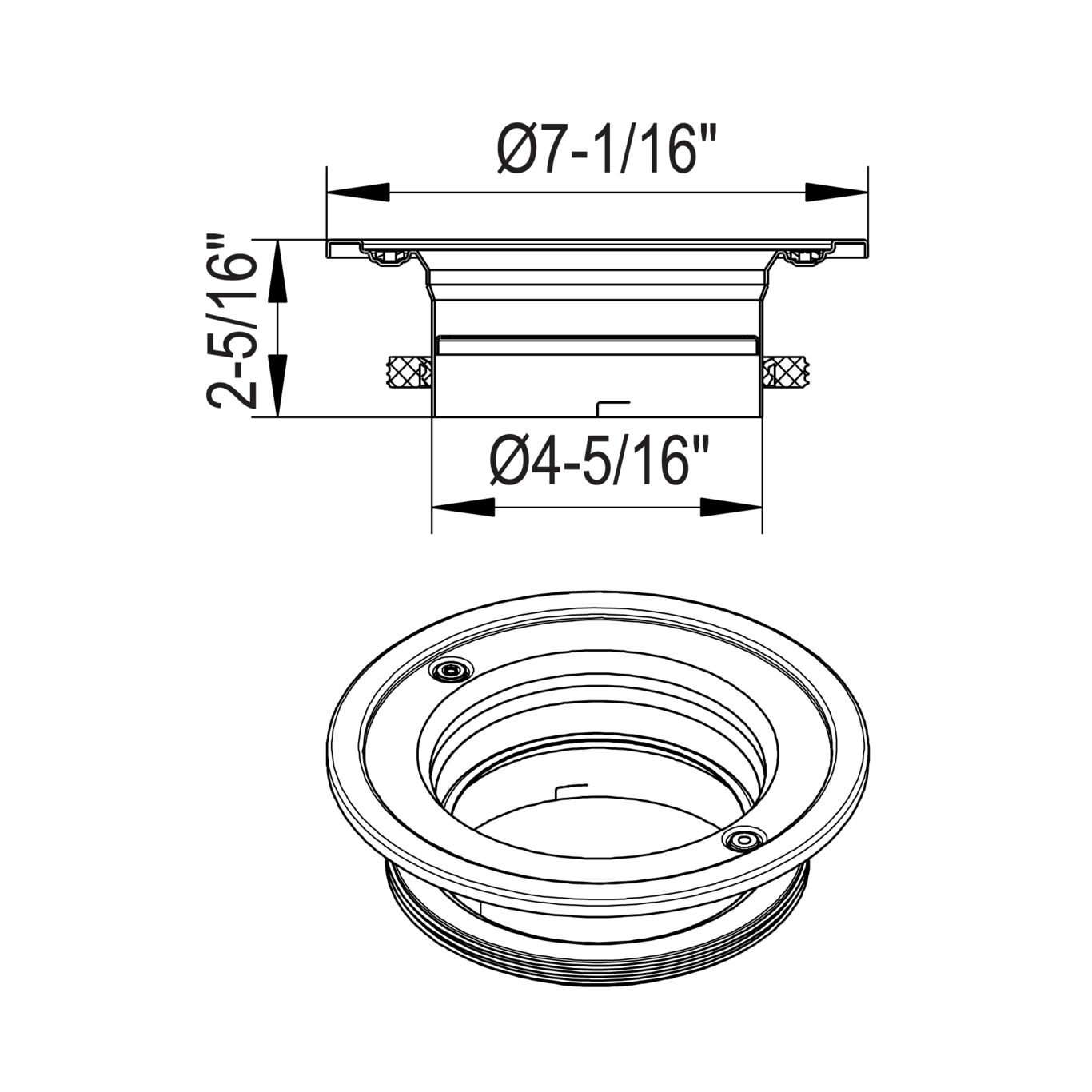

-Frame: Ø7-1/8 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 59 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Shape | Round |
| Size (mm) | Ø180 |
| Size of Frame (Inch) | Ø7-1/8 |
| Weight (kg) | 0.57 |
| Weight (lbs) | 1.26 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3 RU - 0212321 Drains-21 Bureau Veritas - 03456-H0 ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes
