LOWER PART MARINE - (485.200.050 S)
×
![]()
Part Of the Series: Marine-lower part-bimetal flange-aluminium
Type no.: 485.200.050 S
EAN no.: 5705499121865
NRF no.: 3397051

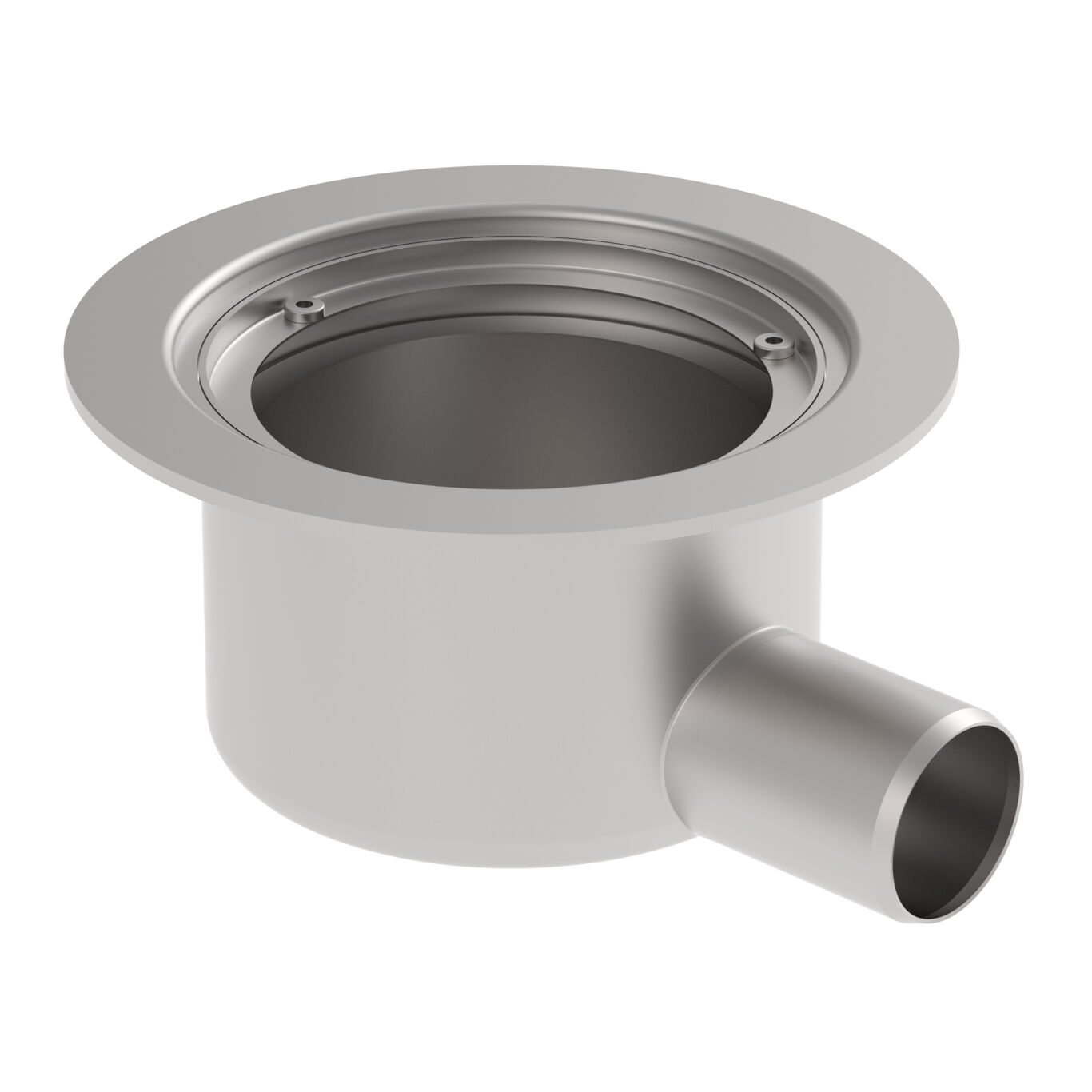

LOWER PART MARINE
-With Bimetal flange
-Deck: aluminium
-Flange: Ø8 inch
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 111 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1.5 |
| Weight (lbs) | 3.31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
