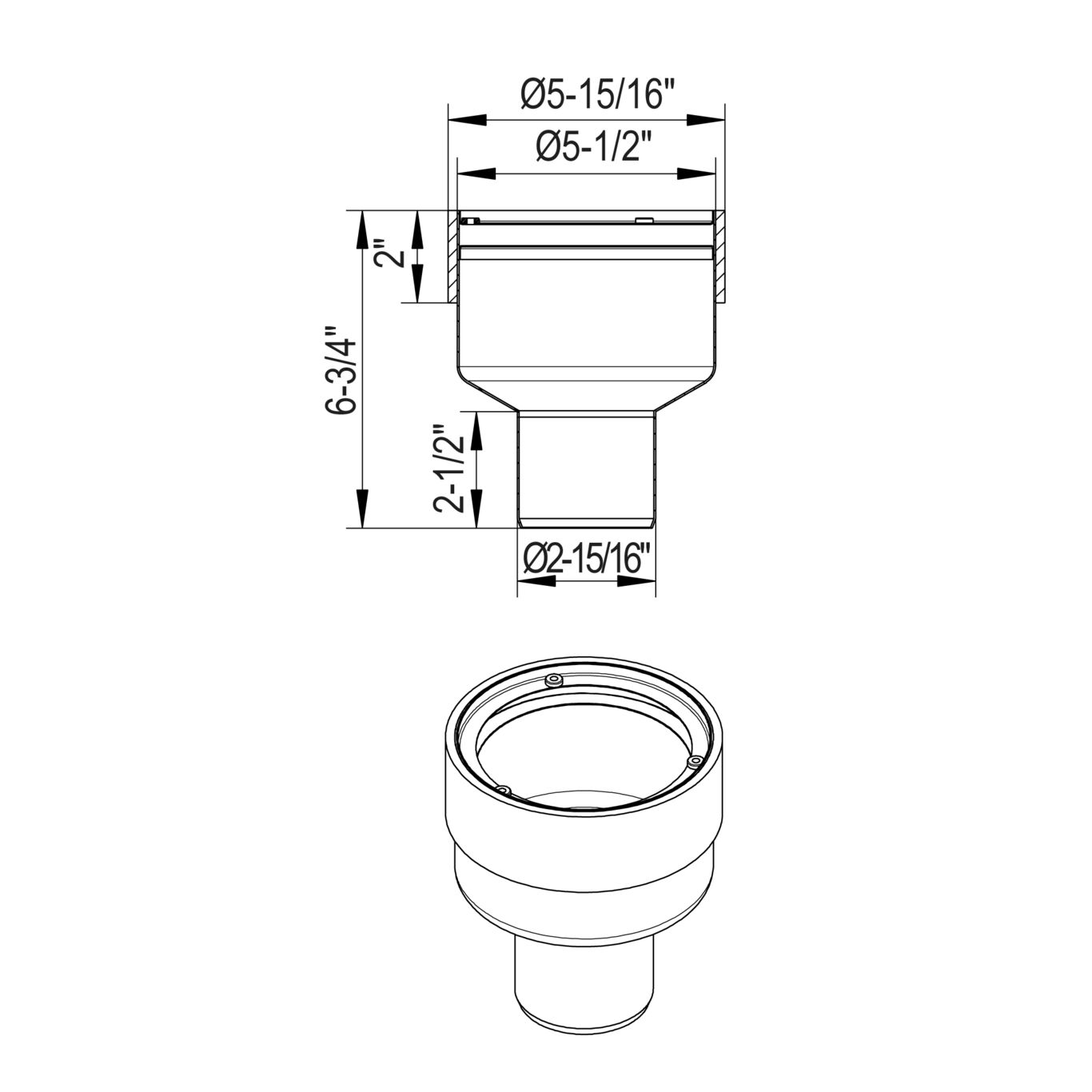

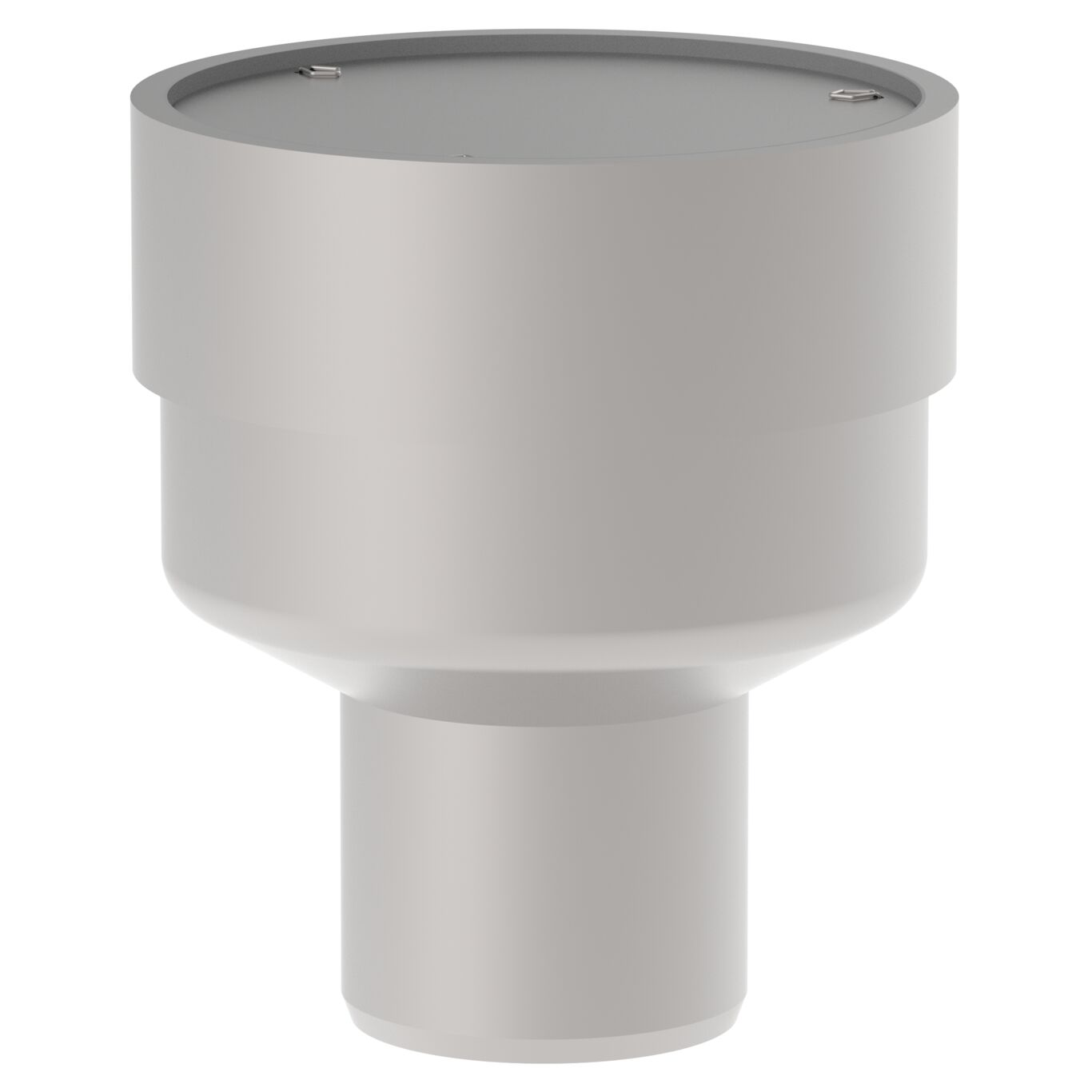

LOWER PART MARINE - (470.000.075 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 470.000.075 S
EAN no.: 5705499106169
NRF no.: 3397023
LOWER PART MARINE
-With welding sleeve
-Deck: steel
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 172 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Weight (kg) | 1.6 |
| Weight (lbs) | 3.53 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3 Bureau Veritas - 03456-H0 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA ABS - LD1716353-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes RU - 0212321 Drains-21 Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001
