LOWER PART MARINE - (470.200.110)
×
![]()
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 470.200.110
EAN no.: 5705499106237

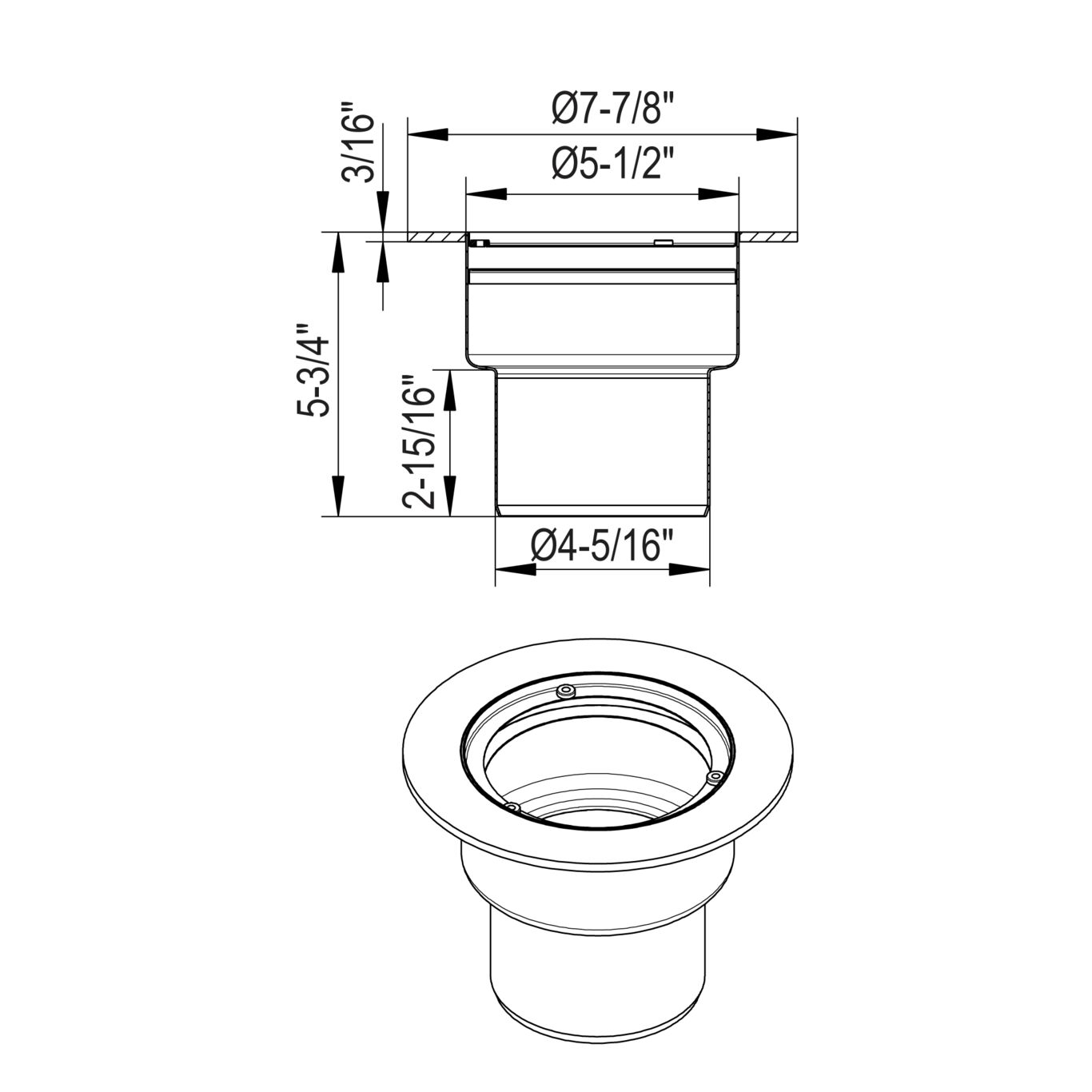

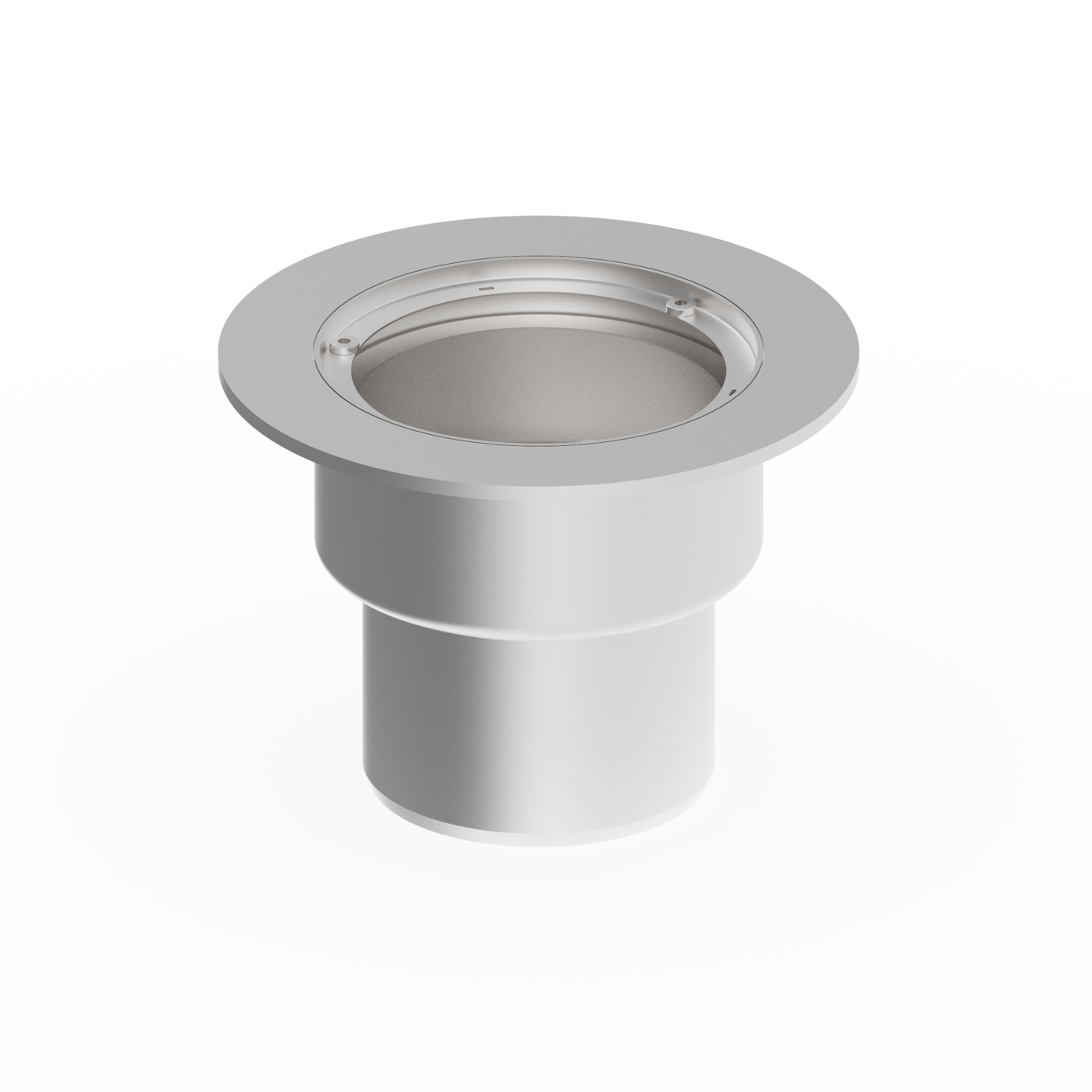

LOWER PART MARINE
-With welding flange
-Deck: steel
-Flange: Ø8 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 141 |
| Number of Inlets | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Weight (kg) | 1.24 |
| Weight (lbs) | 2.73 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3 RU - 0212321 Drains-21 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas - 03456-H0 Lloyds Register LR22419510TA ABS - LD1716353-PDA
