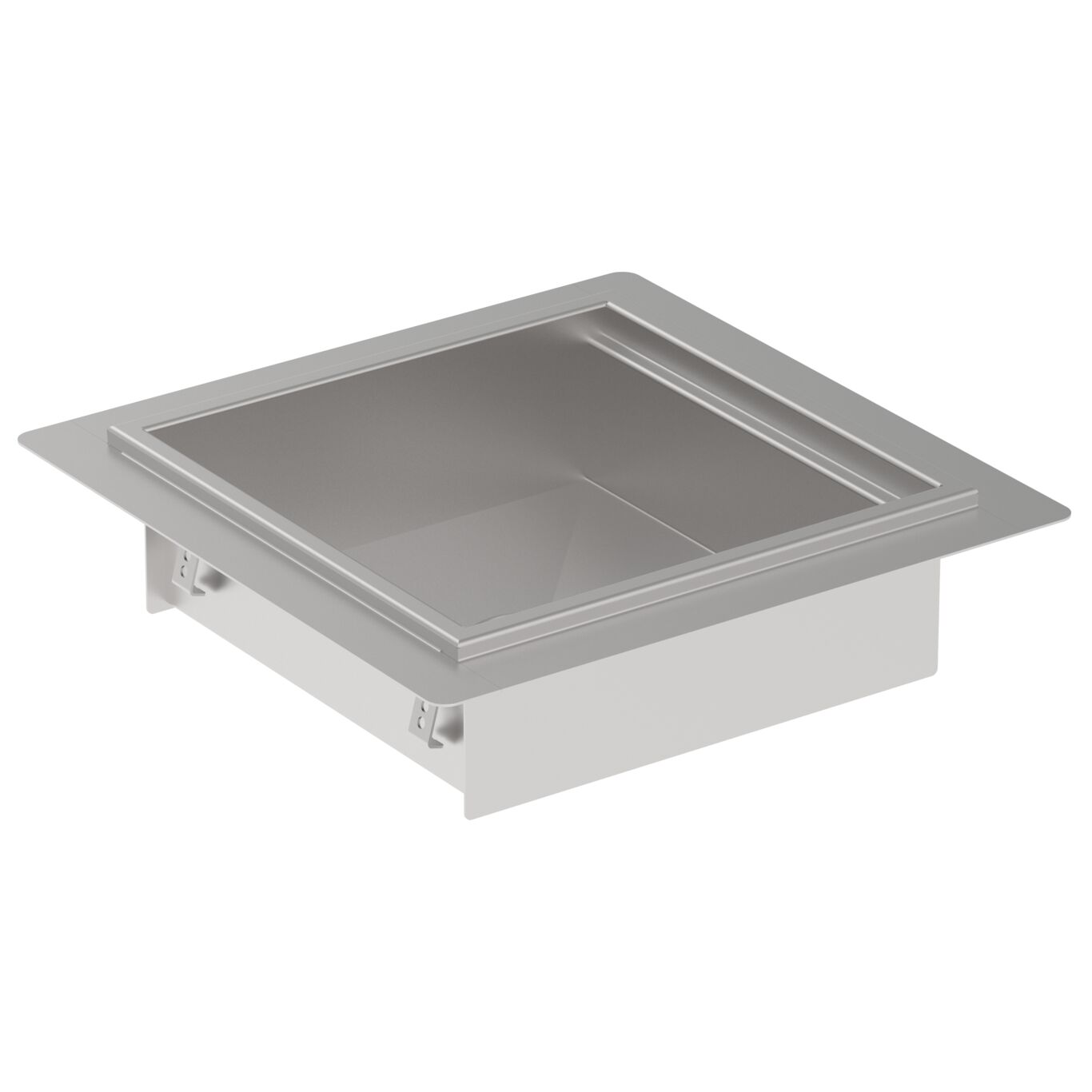

KITCHEN CHANNEL 400x400 - (664FH004-15)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 664FH004-15
EAN no.: 5705499126013
Size: 400x400
KITCHEN CHANNEL 16 x 16
-Floor: concrete, tiled and resin
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 211 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 400x400 |
| Size of Frame (Inch) | 16 x 16 |
| Weight (kg) | 12.37 |
| Weight (lbs) | 27.27 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
