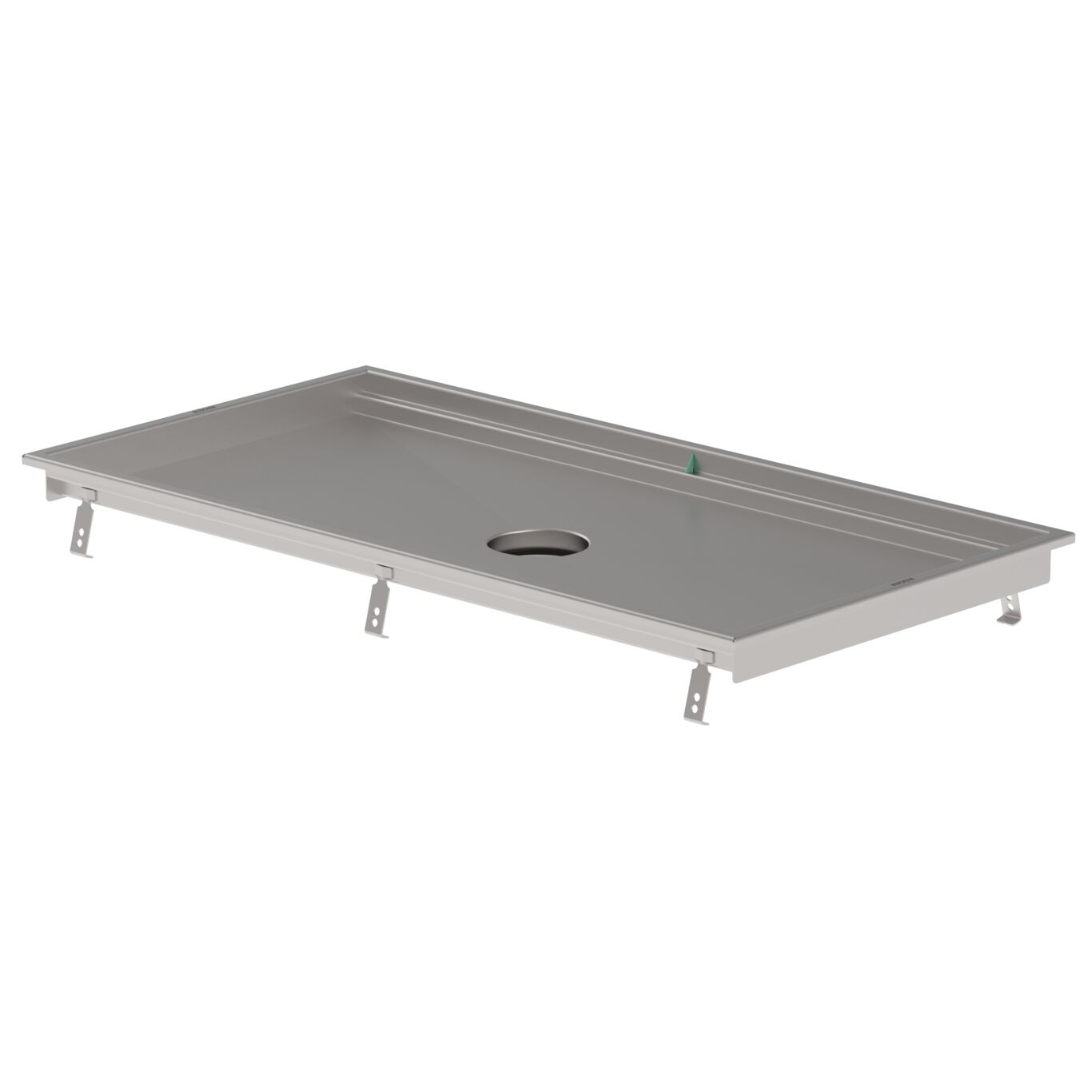

KITCHEN CHANNEL 500x1000 - (660GH010-06)

Part Of the Series: Kitchen channel-No membrane

Type no.: 660GH010-06

EAN no.: 5705499127874

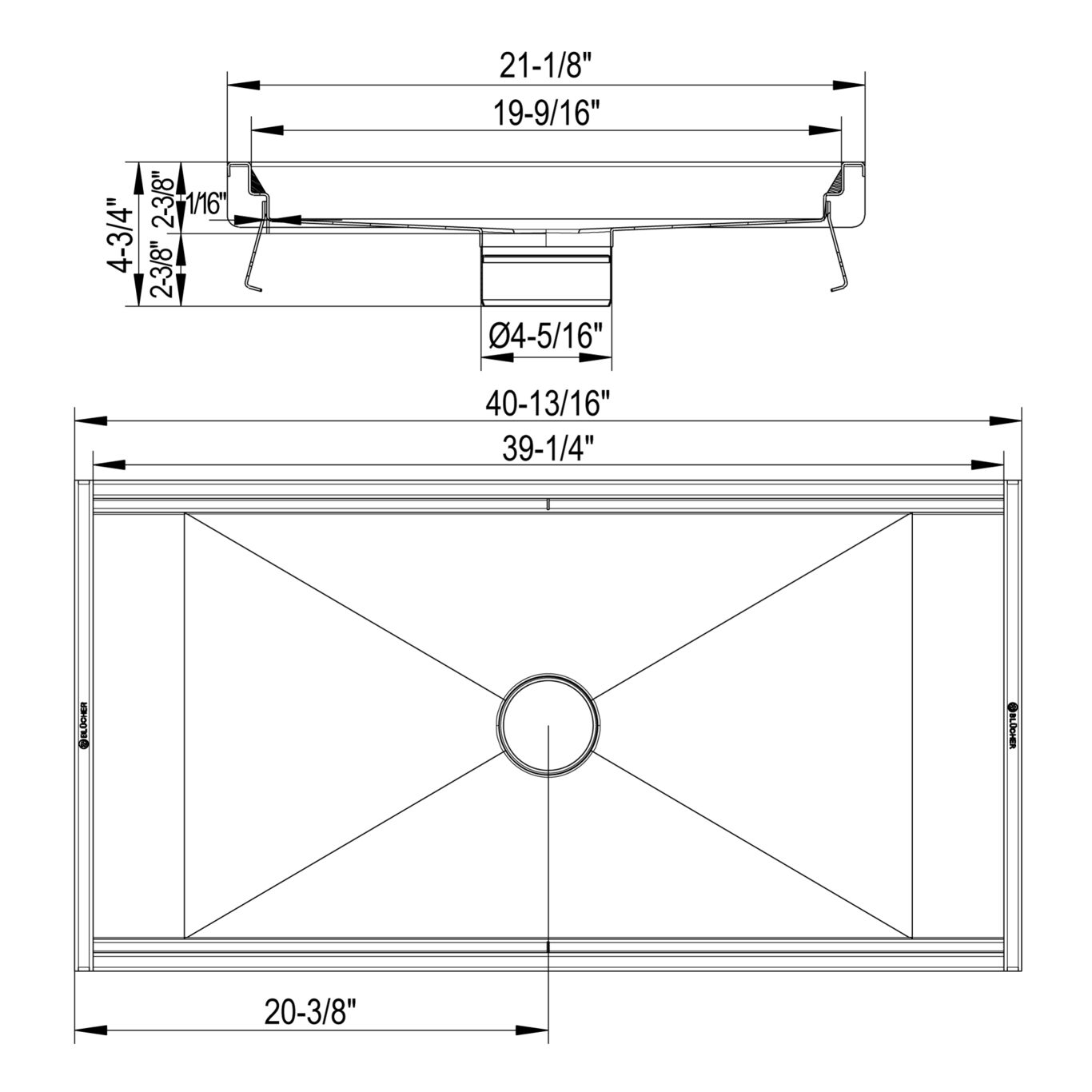

Size: 500x1000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 121
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Rectangular
Size (mm) 500x1000
Size of Frame (Inch) 20 x 40
Weight (kg) 25.2
Weight (lbs) 55.56
